Quick Details
-
Place of Origin:
-
Anhui, China
-
Power:
-
11+1KW
-
Dimension(L*W*H):
-
5500*1800*1600
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-23m/min
-
Certification:
-
CE
-
Product name:
-
Air duct spiral forming machine
-
Control system:
-
PLC + Inveter + Touch sreen
-
Diameter range:
-
100-1500mm
-
Wall thickness:
-
0.4-1.2mm
-
Cutting system:
-
Saw cutting
-
Cooling system:
-
Water cooling
-
Driven system:
-
Mechanical and motorised
-
Forming mould:
-
Spring steel
-
After-sell service:
-
Life time service
Quick Details
-
Brand Name:
-
Preda Machine
-
Condition:
-
New
-
Weight:
-
2200kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
11+1KW
-
Dimension(L*W*H):
-
5500*1800*1600
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-23m/min
-
Certification:
-
CE
-
Product name:
-
Air duct spiral forming machine
-
Control system:
-
PLC + Inveter + Touch sreen
-
Diameter range:
-
100-1500mm
-
Wall thickness:
-
0.4-1.2mm
-
Cutting system:
-
Saw cutting
-
Cooling system:
-
Water cooling
-
Driven system:
-
Mechanical and motorised
-
Forming mould:
-
Spring steel
-
After-sell service:
-
Life time service

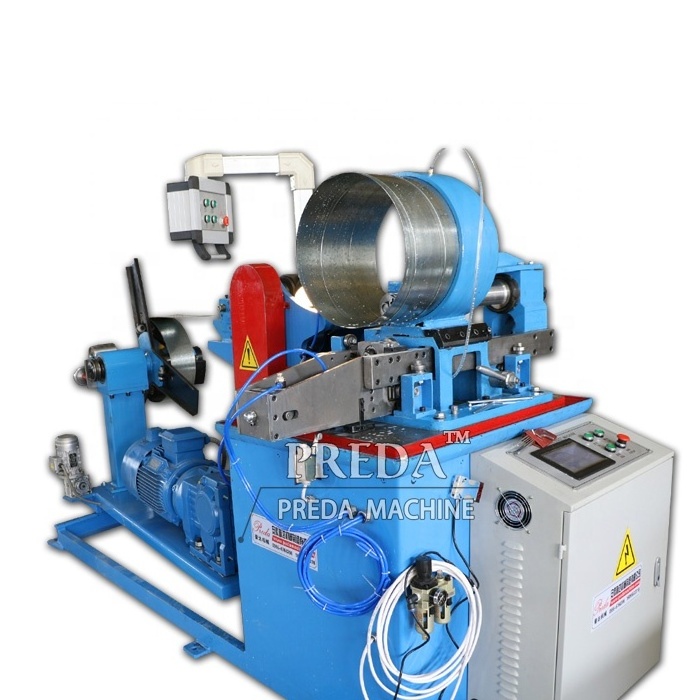

Mold type spiral duct making machine auto air duct spiral forming machine in HVAC system
Product Description
This mold type tubeformer is designed to automatically form spiral duct for HVAC round duct progress!
It is an advanced spiral duct forming line with more reliable performance due to its fixed mould design!
Each mold will form spiral tube of one fixed diameter.
The spiral duct making machine is of higher durability and the spiral tubes formed are of better air tightness for sure!
Basic Configuratio
1.One main motor in 11KW
2.Three inner side motors
3.Electronic box with screen-touch PLC
4.Electric coil cradle
5.Slitting station
6.Four forming dies from 0.4mm to 1.2mm
7.MITSUBISHI control system and Schneider electrical
| Model | PD-1600 |
| Thickness (mm) | 0.4-1.2 |
| Steel width (mm) | 137 |
| Working speed (m/min) | 1-38 |
| Diameter (mm) | 100-1600 |
| Coiler weight capacity (kg) | 1200 |
More About The Mould Type Spiral Duct Forming Machine
You need a high quality and high productive spiral tube forming machine when you manufacturing spiral round duct. Preda Machine spiral tube forming machine is worth recommending. Preda Machine spiral tube forming machine also named mold type spiro duct machine. Because it is controlled by different sizes of molds to shape spiral round pipe's diameter. One mould size only has one kinds of diameter.
Preda Machine spiral tube forming machine including 5 kinds of molds in φ100-1500mm diameter. We can also meet you other size diameter if you need. Our spiral tube forming machine's molds are made of high quality steel, Its inner walls are polished carefully, to ensure the spiral tube forming better. The shearing mold is also made of high quality steel, to ensure cutting the forming spiral tube better.
Preda Machine spiral tube forming machine can easy to operate. It has a electronic box with screen-touch PLC, it is safe and easy to study. The spiral duct forming machine is weight about 2200kg, it is cast in one piece that to ensure a more stable processing project. And it also has a touchable height that makes operation easier. Our spiral tube forming machine main motor is 11KW, high-power processing is more stable.
When you are hesitant to purchase a spiral tube machine,Preda Machine spiral tube forming machine will be a good choice.
It will be your best assistant in the production of spiral round tube forming ducts. There is no machine that can replace Preda Machine spiral tube forming forming machine.
