Quick Details
-
Place of Origin:
-
Shanghai
-
Type:
-
Powered Pallet Truck
-
Capacity:
-
2000kgs
-
Max. Lifting height:
-
195
-
Fork dimensions:
-
560*1150/680*1220
-
Operator Type:
-
walkie type
-
color:
-
customerized
-
Model:
-
EPT20/E
-
Weight:
-
138kgs
-
battery type:
-
Lithium battery 48/15Ah
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
193
-
Marketing Type:
-
Hot Product 2023, Hot Product 2023
-
Place of Origin:
-
Shanghai
-
Type:
-
Powered Pallet Truck
-
Capacity:
-
2000kgs
-
Max. Lifting height:
-
195
-
Fork dimensions:
-
560*1150/680*1220
-
Operator Type:
-
walkie type
-
color:
-
customerized
-
Model:
-
EPT20/E
-
Weight:
-
138kgs
-
battery type:
-
Lithium battery 48/15Ah
Product Description

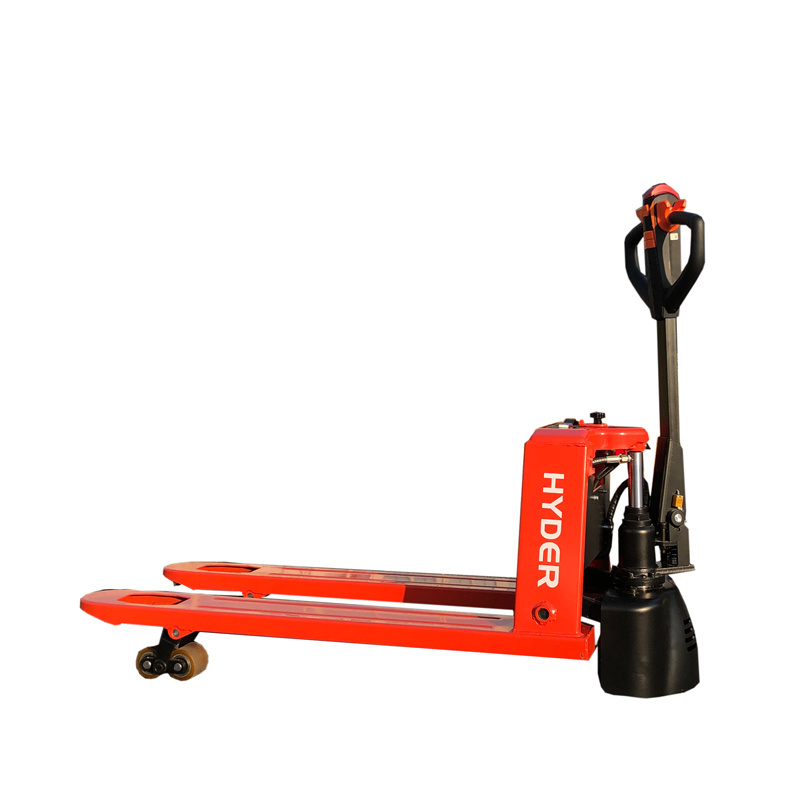

Hot sale electric powered pallet truck 2000kg 48V Lithium battery PU wheels and pin code handle bar
800W big power motor，Strong power, low energy consumption
Dc permanent magnet driving motor, strong power and long service life
Dc permanent magnet driving motor, strong power and long service life
With 48V/15AH Lithium battery
Lithium iron phosphate battery In portable battery pack, plug-type structure, stable,safe.
Open body design for fase battery replacement
The battery can be replaced within a minute and the operation is simple and convenient.
New ergonomic tiller with pin panel, keyless access with pin code,
Electric meter, soft grips for high confirt ,with emergency reverse function, Emergenvy botton.
Tilller work in upright position under slow speed mode
Integral frame, sheet metal covering parts, more collision resistance, not easy to deformation
Product Description
High quality oil pump, sealing ring
refuse oil leakage
Full enclosed driving wheels cover
48V/15Ah large capacity lithium battery.fast battery replacement.
Emergency button for safe operation
quick lithium battery charger.
New Ergonomic tiller with pin panel.
Keyless access with pin code .
Specification
|
1
|
Manufacturer
|
|
HYDER
|
|
|
|
2
|
Model
|
|
EPT20/E
|
|
|
|
3
|
power type
|
|
FULL ELECTRIC
|
|
|
|
4
|
operation
|
|
Walkie
|
|
|
|
5
|
load capacity
|
Q(kg)
|
2000
|
|
|
|
6
|
loading center
|
C(mm)
|
600
|
|
|
|
7
|
Wheels base
|
mm
|
1220
|
|
|
|
8
|
service weight(including lithium battery)
|
kg
|
138
|
|
|
|
9
|
wheel type
|
|
Polyurethane(PU)
|
|
|
|
10
|
driving wheel,number
|
x w(mm)
|
ø190*70/1
|
|
|
|
11
|
front wheel,number
|
x w(mm)
|
ø80*70/4
|
|
|
|
12
|
overall length
|
l1(mm)
|
1540
|
|
|
|
13
|
Overall width
|
b(mm)
|
560/680
|
|
|
|
14
|
fork lifting height
|
h1(mm)
|
85-195
|
|
|
|
15
|
the handle height from ground(max)
|
h3(mm)
|
1200
|
|
|
|
16
|
Height of body
|
h4(mm)
|
560
|
|
|
|
17
|
Fork height at lowest point
|
h(mm)
|
85
|
|
|
|
18
|
Fork dimensions
|
mm
|
560*1150/680*1220
|
|
|
|
19
|
Ground clearance
|
mm
|
30
|
|
|
|
20
|
Min. Right-angle stack channel width,
(pallet size 1000X1200, 1200 placed along cargo fork |
mm
|
1500
|
|
|
|
21
|
Turning radius
|
R(mm)
|
1350
|
|
|
|
22
|
Driving speed ( with /without load)
|
km/h
|
4.5
|
|
|
|
23
|
Lifting speed (with /without load)
|
mm/s
|
22/17
|
|
|
|
24
|
Lowering speed (with /without load)
|
mm/s
|
26/30
|
|
|
|
25
|
Gradient Max load / unload
|
%
|
6/10
|
|
|
|
26
|
Brake
|
|
Electromagnetic brake
|
|
|
|
27
|
battery voltage
|
V/Ah
|
48/15
|
|
|
|
28
|
Battery weight(+/-5%)
|
kg
|
4.5
|
|
|
|
29
|
Driving motor
|
kw
|
0.8
|
|
|
|
30
|
lifting motor
|
kw
|
0.6
|
|
|
|
31
|
Charging time
|
H
|
2.5
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
