Quick Details
-
Material:
-
Metal
-
Product Type:
-
HDMI Splitter 1*8
-
Input ports:
-
1xHDMI(female)
-
Output ports:
-
8xHDMI outputs(female)
-
Power consumption:
-
3W(MAX)
-
Net Weight:
-
840g
Quick Details
-
Model Number:
-
LM-SP148E-HD4K2K
-
Brand Name:
-
LINK-MI/OEM
-
Place of Origin:
-
Guangdong, China
-
Material:
-
Metal
-
Product Type:
-
HDMI Splitter 1*8
-
Input ports:
-
1xHDMI(female)
-
Output ports:
-
8xHDMI outputs(female)
-
Power consumption:
-
3W(MAX)
-
Net Weight:
-
840g
Features
1.Simultaneously displays an Ultra Hi-Def source on up to eight Ultra HD displays.
2.Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
3.Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
4.Supports 36 bit Deep Color.
5.Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
6.Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.
7.HDCP Compliant.
8.Support 3D.
Interface
Connection Diagram
Specification
| Input port | 1 HDMI |
| Output port | 8 HDMI |
| Resolution | up to 4K2K@60Hz YUV 4:2:0 |
| Display mode | distribute 1 HDMI source to 8 HDMI displays simultaneously |
| Transmission distance | max.15m over standard HDMI cable 26AWG |
| Power supply | DC 5V 1A |
| Power consumption | 3W |
| Unit size (L*W*H) | 270*110*27.5mm |
| Weight | 840g |

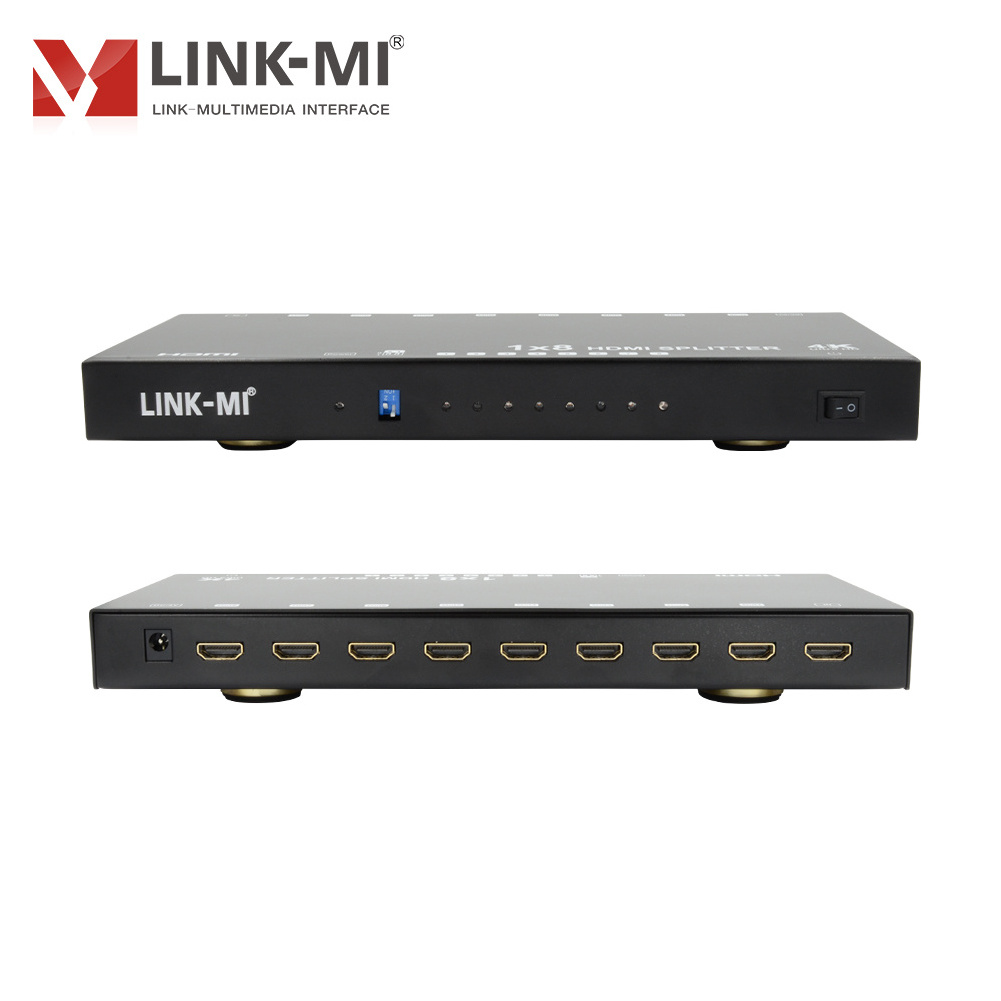

Product Overviews
