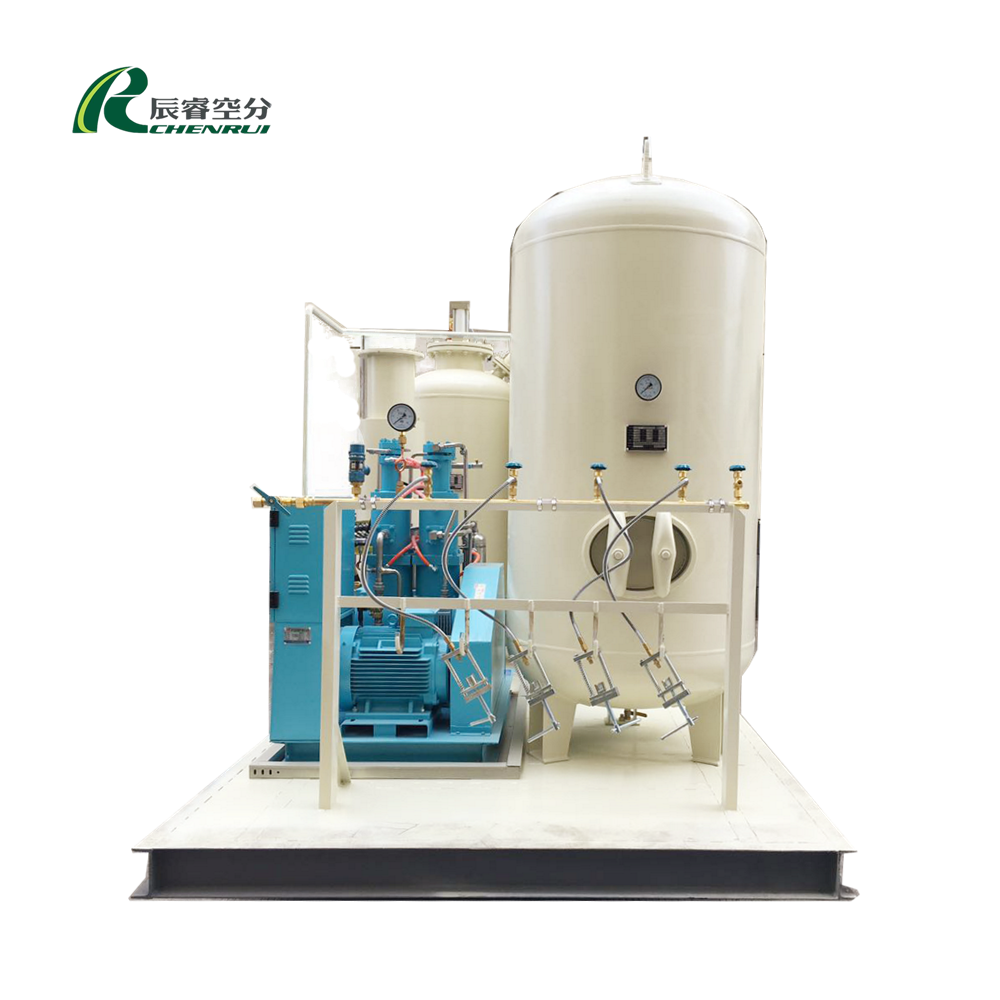

Capacity 3-400Nm3/h medical oxygen production plant membrane oxygen concentrator 15 liter oxygen concentrator

Capacity 3-400Nm3/h medical oxygen production plant membrane oxygen concentrator 15 liter oxygen concentrator

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V/440V

Weight:: 2200 KG

Dimension(L*W*H):: 3000*2200*2300mm

Warranty of core components:: More than 10 years

Name:: PSA oxygen generator

Capacity:: 3~400Nm3/h

Purity:: 93%+/-2

Output pressure:: 0.1-0.5Mpa,adjustable

Power:: 220V/380V/440V

CEM/OEM:: YES

HS Code:: 8419601900

MOQ:: 1 Set

After-sales Service Provided:: Field installation, commissioning and training

Certification:: ISO9001/ISO14001/ISO45001/CE

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: ChenRui

Production Rate:: 3-400Nm3/h

Voltage:: 220V/380V/440V

Weight:: 2200 KG

Dimension(L*W*H):: 3000*2200*2300mm

Warranty of core components:: More than 10 years

Name:: PSA oxygen generator

Capacity:: 3~400Nm3/h

Purity:: 93%+/-2

Output pressure:: 0.1-0.5Mpa,adjustable

Power:: 220V/380V/440V

CEM/OEM:: YES

HS Code:: 8419601900

MOQ:: 1 Set

After-sales Service Provided:: Field installation, commissioning and training

Certification:: ISO9001/ISO14001/ISO45001/CE

Product Overview

PSA oxygen generator principle

CBO series PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecular sieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower. Oxygen generator is constructed according to the principle of operation PSA (pressure swing adsorption) and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce oxygen, the other one release nitrogen gas to atmosphere. The process comes in cycle way. The generator is controlled by PLC.

PRODUCT SPECIFICATIONS

No	Model	Capacity	Purity	Pressure
1	CBO-3	3Nm3/h	93%+/-2	0.1-0.3Mpa or 15/20Mpa for filling system
2	CBO-5	5Nm3/h
3	CBO-10	10Nm3/h
4	CBO-15	15Nm3/h
5	CBO-20	20Nm3/h
6	CBO-25	25Nm3/h
7	CBO-30	30Nm3/h
8	CBO-40	40Nm3/h
9	CBO-50	50Nm3/h
10	CBO-60	60Nm3/h
11	CBO-80	80Nm3/h
12	CBO-100	100Nm3/h
13	CBO-150	150Nm3/h
14	CBO-200	200Nm3/h
15	CBO-400	400Nm3/h

FEATURES AT A GLANCE

1.Advancement

CBO series PSA oxygen generator raw material is air , oxygen is produced and used on site. No need to be transported or filled.
Advanced PLC touch screen control and display, fully automatic operation, can be unmanned management.
2.Economical

CBO series PSA oxygen generator is physical principles, air as raw material, low cost, economical and environmentally friendly.
3.Safety

PSA technology through physical methods to produce oxygen at normal temperature and low pressure. No transportation link reduces
potential safety hazards.
