Quick Details
-
Brand Name:
-
GP, Greenpower
-
Model Number:
-
GPS1-8PT-600
-
Max. current for 3P /4P:
-
up to 7400A
-
Rated peak withstand current:
-
1pk can casue 375kA
-
Horizontal busbar level:
-
3200A; 4000A, 7400A
-
Rated max. distribution current:
-
1400A
-
Drawer modular:
-
100, 150, 200, 300, 400, 500, 600, 700mm
-
Max. current/Drawer:
-
630A
-
Certificate:
-
ISO9001
-
Website:
-
www.sinogp.com
-
Email:
-
gp(at)sinogp.com
-
Warranty:
-
18 Months
Quick Details
-
Voltage:
-
690
-
Current:
-
6300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP, Greenpower
-
Model Number:
-
GPS1-8PT-600
-
Max. current for 3P /4P:
-
up to 7400A
-
Rated peak withstand current:
-
1pk can casue 375kA
-
Horizontal busbar level:
-
3200A; 4000A, 7400A
-
Rated max. distribution current:
-
1400A
-
Drawer modular:
-
100, 150, 200, 300, 400, 500, 600, 700mm
-
Max. current/Drawer:
-
630A
-
Certificate:
-
ISO9001
-
Website:
-
www.sinogp.com
-
Email:
-
gp(at)sinogp.com
-
Warranty:
-
18 Months

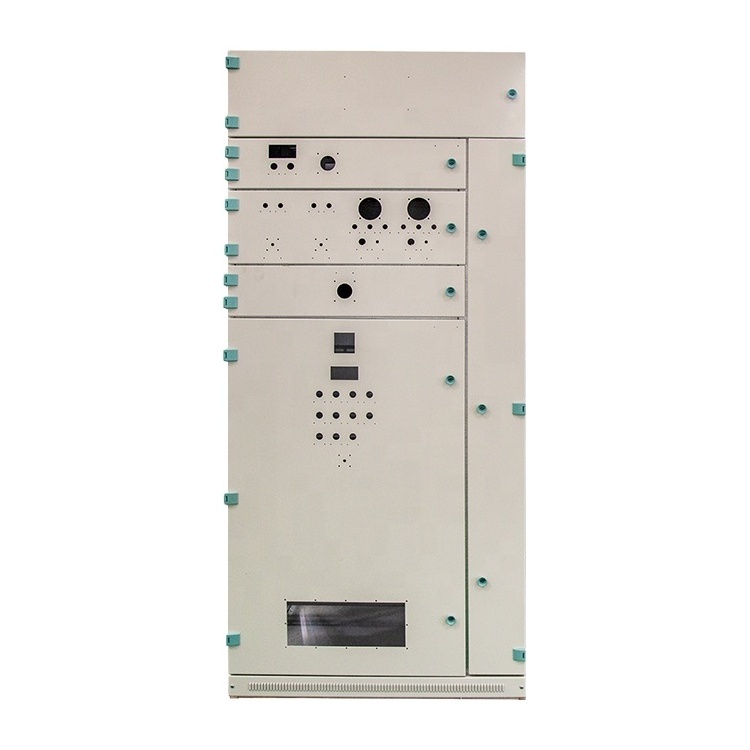

Product show
Low Voltage switch cabinet switchboard Of 50Hz 380V 3 Phase Customizable Products Electrical distribution Switchgear
General introduce
1.LV low voltage distribution cabinet is suitable for three-phase AC 50HZ, voltage 380V/440V, rated current to 6300A power
distribution system , it is widely used in power plants, substations, industrial and mining enterprises etc energy consumer and
using for power, lighting and distribution equipment for electrical energy conversion, distribution and control purposes
2.Protection grade is IP40. IP20-IP43 could be optional according to the requirements of service condition.
3.Good appearance. easy assembly and disassembly.
MAIN FEATURES
1.Ambient air temperature: -5℃~+40℃ and the average temperature should not exceed +35℃ in 24h
2.Indoor altitude above sea level: Maximum installation altitude: 2000m
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex.90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually.
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.The equipment shall be installed in a place where there is no violent vibration and impact, and the place where the electrical components are not corroded.
7.Any specific requirement, consult with GP service.
2.Indoor altitude above sea level: Maximum installation altitude: 2000m
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex.90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually.
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.The equipment shall be installed in a place where there is no violent vibration and impact, and the place where the electrical components are not corroded.
7.Any specific requirement, consult with GP service.
Cabinet size:
W800(1000)×1000×2200mm Suit for Siemens and similar breaker;
Technology & details
|
No
|
Item
|
|
Unit
|
Data
|
|
|
1
|
Rated voltage
|
|
V
|
380/440V
|
|
|
2
|
Rated current
|
|
A
|
630A~6300A
|
|
|
3
|
Rated frequencty
|
|
Hz
|
50/60
|
|
|
4
|
Rated peak withstand current
|
|
kA
|
1pk can casue 375kA
|
|
|
5
|
IP degree
|
|
|
IP30/IP32/IP40/IP54
|
|
|
6
|
Outline dimension W*D*H
|
Outline dimension W*D*H
|
mm
|
800/1000/2200
1000/1000/2200
|
|
|
7
|
Weight
|
|
kg
|
500~800KG
|
|
|
8
|
Package
|
|
|
Wooden case
|
|
Ordering instruction
Production equipment and testing equipment
Strict quality control system
Ensure the insulation reliability of the Low Voltage switchboards under long-term operation!
Ensure the insulation reliability of the Low Voltage switchboards under long-term operation!
packing and shipping
Project case
Low Voltage switch cabinet switchboard Of 50Hz 380V 3 Phase Customizable Products Electrical distribution Switchgear
Certificate
Greenpower's story
Greenpower, founded in 2013, is jointly established by several state-owned excellent industrial electrical professional
manufacturers, we committed to meet the procurement needs of clients and produce environment-friendly switchgear, substation, insulating products, and switchgear related products. It is a professional switchgear procurement service provider with entity of industrial electrical.
manufacturers, we committed to meet the procurement needs of clients and produce environment-friendly switchgear, substation, insulating products, and switchgear related products. It is a professional switchgear procurement service provider with entity of industrial electrical.
