Quick Details
-
Brand Name:
-
GAODETEC
-
Model Number:
-
ZB
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
customized
-
Cable Length:
-
customized
-
Outlet Size:
-
customized
-
Power:
-
customized
-
Theory:
-
Reciprocating Pump
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Fuel:
-
Diesel
-
Performance:
-
Good and reliable
-
Working pressure:
-
63mpa
-
Certification:
-
CE
Quick Details
-
Application:
-
Commercial Buildings, Industrial Utilities, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
customized, High Pressure
-
Voltage:
-
customized
-
Brand Name:
-
GAODETEC
-
Model Number:
-
ZB
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
customized
-
Cable Length:
-
customized
-
Outlet Size:
-
customized
-
Power:
-
customized
-
Theory:
-
Reciprocating Pump
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Fuel:
-
Diesel
-
Performance:
-
Good and reliable
-
Working pressure:
-
63mpa
-
Certification:
-
CE

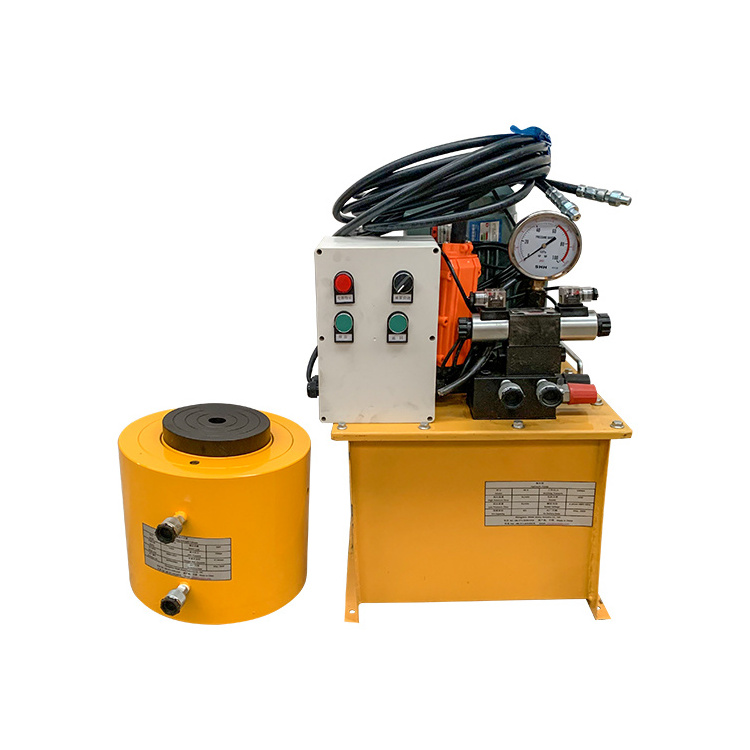

Hydraulic Jack oil pump Station
This ultrahigh pressure prestressed oil pumpis a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc.It is a special equipment for the prestressing jack.
1. It is an ultrahigh pressure pump.
2. Used with a variety of tonnage jack, upsetting and extruding machine top tensioning machine.
3. It can widely adopted to prestressing works.
We can manufacture all kinds of anchor and equipment according to your requirement.
|
Type |
Power |
High pressure |
High pressure flow |
Low pressure f low |
Oil capacity |
Weight |
|
ZB- 0.55 |
0.55 kw |
63 MPa |
0.4 L/min |
1 L/min |
7L |
23kgs |
|
ZB-0.7 5 |
0.75 kw |
63 Mpa |
0.7 L/min |
2.4 L/min |
16L |
33kgs |
|
ZB-1 .5 |
1.5 kw |
63 MPa |
1 L/min |
6 L/min |
26L |
55kgs |
|
ZB-2. 2 |
2.2 kw |
63 MPa |
2.4 L/min |
6 L/min |
42L |
70kgs |
|
ZB-3 |
3 kw |
63 Mpa |
3 L/min |
6 L/min |
42L |
90kgs |
|
ZB-4 |
4 kw |
63 MPa |
4 L/min |
9 L/min |
60L |
118kgs |
|
ZB- 5.5 |
5.5 kw |
63 MPa |
5 L/min |
10 L/min |
90L |
125kgs |
|
ZB-7 .5 |
7.5 kw |
63 Mpa |
7 L/min |
10 L/min |
120L |
150kgs |
|
ZB- 11 |
11 kw |
63 Mpa |
9 L/min |
20 L/min |
150L |
220kgs |
1. Small dimension, light weight, convenient usage, high working pressure.
2. Single stage pump station: simple structure, it can get higher working pressure.
3. Large output flow and low pressure pump automatically to reduce the consumption of
electric motor.
4. Holding function: outer oil-way is no reveal, stop the pump for holding 5 minters, rated
pressure reduce less than 5Mpa.
5. Wide range application. Propulsion, stretching, expansion, clamping, bending, jack-up,
extrusion etc.
1. If you need large capacity works and piston return, you could choose large tonnage double acting hydraulic jack (50-2000 tons) .
2. You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons) .
3. If you want to install jack on the some working platforms, you need a flange type hydraulic jack (10-630 tons) .
4. Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons) .
5. Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack (12-100 tons) .
6. Single acting hydraulic jack with lock nut can be used for long time keep pressure work site (55-200 tons) .
7. Ultra thin hydraulic jack is used for narrow work space (10-200 tons) .
8. Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.
9.
Hydraulic hand pump
is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.
All the tonnage , stroke , height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years .
