Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Marvtech
-
Model Number:
-
FEAF5F-0.5
-
Product name:
-

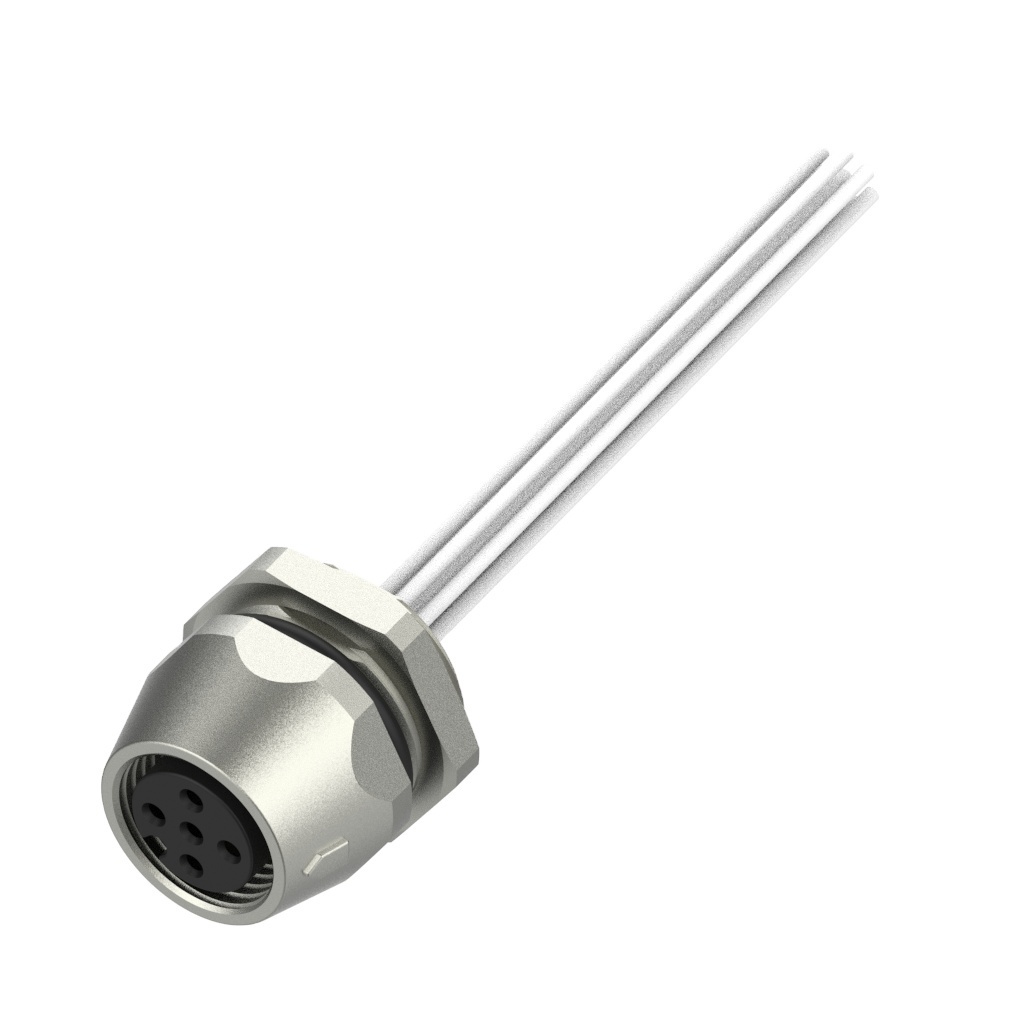

M12 panel mount cable connector
-
Main products:
-
Industrial Control Products
-
Protection level:
-
IP67
-
Standards:
-
IEC 61076-2-101
-
Pin:
-
3/4/5 pin
-
Ambient temperature:
-
-25~+85℃
-
Warranty:
-
1 Year
-
Cable length:
-
The default is 0.5 meters,Other lengths can be customized
-
Service:
-
OEM Service
Quick Details
-
Type:
-
IEC
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Marvtech
-
Model Number:
-
FEAF5F-0.5
-
Product name:
-
M12 panel mount cable connector
-
Main products:
-
Industrial Control Products
-
Protection level:
-
IP67
-
Standards:
-
IEC 61076-2-101
-
Pin:
-
3/4/5 pin
-
Ambient temperature:
-
-25~+85℃
-
Warranty:
-
1 Year
-
Cable length:
-
The default is 0.5 meters,Other lengths can be customized
-
Service:
-
OEM Service
Products Description
Specification
|
Housing material
|
Zinc/Nickel-plated
|
|
Coupling nut
|
Zinc/Nickel-plated
|
|
Contact carrier
|
PA66/Black
|
|
Pin
|
Brass/Gold-plated
|
|
Degree of protection
|
IP67
|
|
Insulation resistance
|
≥100MΩ
|
|
Forward resistance
|
≤5mΩ
|
|
Degree of pollution
|
3
|
|
Ambient temperature
|
-25~+85℃
|
|
Plug
|
M12×1
|
|
Insertion/withdrawal cycles
|
≥ 100
|
|
Torque
|
3~4 Nm (mounting side)
|
