High Quality Customized Plasterboard Boundary Precast Fence Mold Board Making Machinery Panels / Concrete Wall Machine

High Quality Customized Plasterboard Boundary Precast Fence Mold Board Making Machinery Panels / Concrete Wall Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: VOSTOSUN

Voltage:: 380V/50HZ

Power:: 300kw

Dimension(L*W*H):: Customizable

Weight:: 1000 kg

Features:: Automatic

Raw Material Designation:: Consumption(kg/㎡)

Faced Paper 210/㎡:: 0.42

Water:: 4.3-4.9

Modified Starch:: 0.25-0.30

Foaming Agency:: 0.008-0.011

Emulsion (White Latex):: 0.006-0.007

Electricity:: 0.3-0.4 kwh

Coal 0.7-1.0 kg (6000 Kcal):: 0.7-1.0 kg (6000 Kcal)

Gypsum powder:: 5.7-6.1

Quick Details

Marketing Type:: Hot Product 2022

Application:: Building Materials Machinery

Production Capacity:: according to the buyer's requirement

Place of Origin:: Shanghai, China

Brand Name:: VOSTOSUN

Voltage:: 380V/50HZ

Power:: 300kw

Dimension(L*W*H):: Customizable

Weight:: 1000 kg

Features:: Automatic

Raw Material Designation:: Consumption(kg/㎡)

Faced Paper 210/㎡:: 0.42

Water:: 4.3-4.9

Modified Starch:: 0.25-0.30

Foaming Agency:: 0.008-0.011

Emulsion (White Latex):: 0.006-0.007

Electricity:: 0.3-0.4 kwh

Coal 0.7-1.0 kg (6000 Kcal):: 0.7-1.0 kg (6000 Kcal)

Gypsum powder:: 5.7-6.1

Product Overview

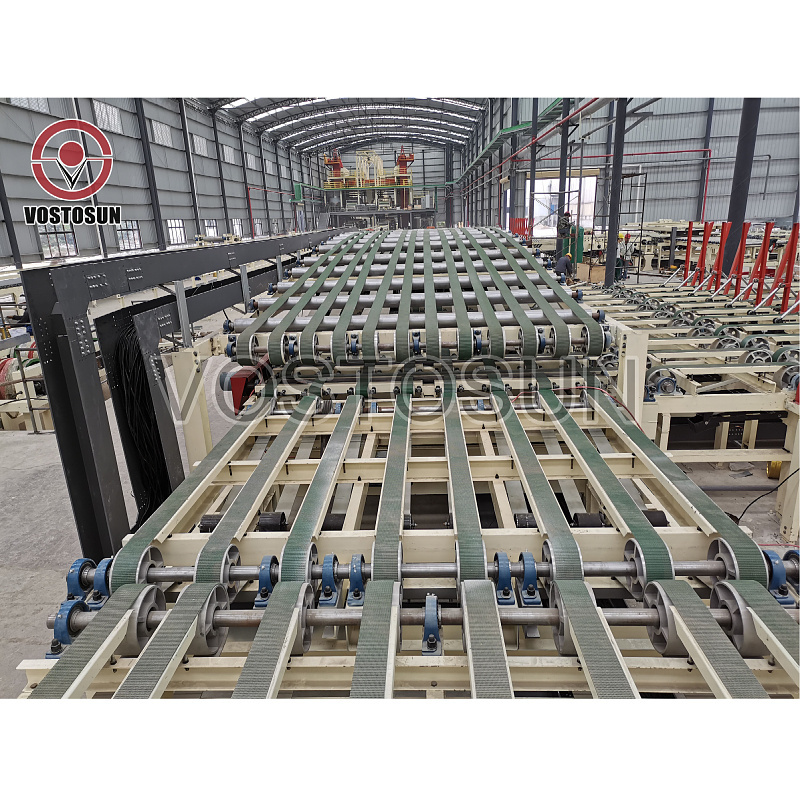

Gypsum Board Production Plant

Introduction:

Gypsum board features lightweight, fireproof, heat and noise isolation, which is widely applied in architectural engineering, suitable for dry construction, performs a good convenience and quality in engineering. VOSTOSUN is dedicated to developing and manufacturing plasterboard plant since 2005, offers qualified products and professional services to customers from all over the world. Services we offer include:

* Customized complete plasterboard plant, production power from 2 million m2/year to 50 million m2 /year. Also offers various devices according to your needs;

*Improve or exchange customer’s devices with problem according to customer’s requirement;

* Consulting and technical improving service on your existing plants, to improve production quality and save cost;

* We offer a complete plasterboard plant production management and maintenance service if you lack operation and management personnel, to achieve better economic benefit for you;

* Plasterboard factory designing and planning service;

* We can offer you the best formula by analyzing the materials you use to produce plasterboard, to ensure quality of the products.

FEATURES AT A GLANCE

* Unique impeller feeder and accurate electronic belt weigh ensures the reliability of gypsum powder feeding;

* PLC system featuring centralized control and data sharing, able for monitoring and adjusting every procedure on production line, to ensure normal running.

* Drying system applies horizontal-vertical hot air circulation structure to ensure plasterboards are heated evenly.

* Self-developed new-type mixer, which is able to prevent slurry from caking, an is energy-saving.

PRODUCT SPECIFICATIONS

Our gypsum board production plant consists of multiple units responsible for several processes, controlled by integrated controlling system. Units include:

Regular Sizes of Gypsum Board Plant Produced Plasterboard:

Length: 1.2m-4m
Width: 1.2-1.4m
Thickness: 7mm-12mm
(Customizable)
Drywall plant, Consumption of Raw Material (Take 9.5mm thickness board for example)

Raw Material Designation	Consumption(kg/㎡)
Gypsum powder	5.7-6.1
Faced Paper 210/㎡	0.42
Water	4.3-4.9
Modified Starch	0.25-0.30
Foaming Agency	0.008-0.011
Emulsion (White Latex)	0.006-0.007
Electricity	0.3-0.4 kwh
Coal	0.7-1.0 kg (6000 Kcal)

Successful Project

Packing and Shipping

Packaging: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after receiving the deposit of the devices.

SALES AND SERVICE NETWORK

FAQ

Q1: Where your products have been exported before?
A1: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q2: How will you help the customer to install the equipment?
A2: Our senior engineer will guide the installation and commissioning on line or on site.

Q3: How about the wear parts supply?
A3: We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place and you are therefore, responsible for all the cost involved.

Q4: What about the payment method?
A4:T/T, L/C is available

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
