Quick Details
-
Model Number:
-
HM
-
MATERIAL:
-
NATURAL RUBBER
-
LENGTH:
-
2000-8000MM
-
USAGE:
-
MACHINE TRANSMISION
-
COLOR:
-
Black
-
Key words:
-

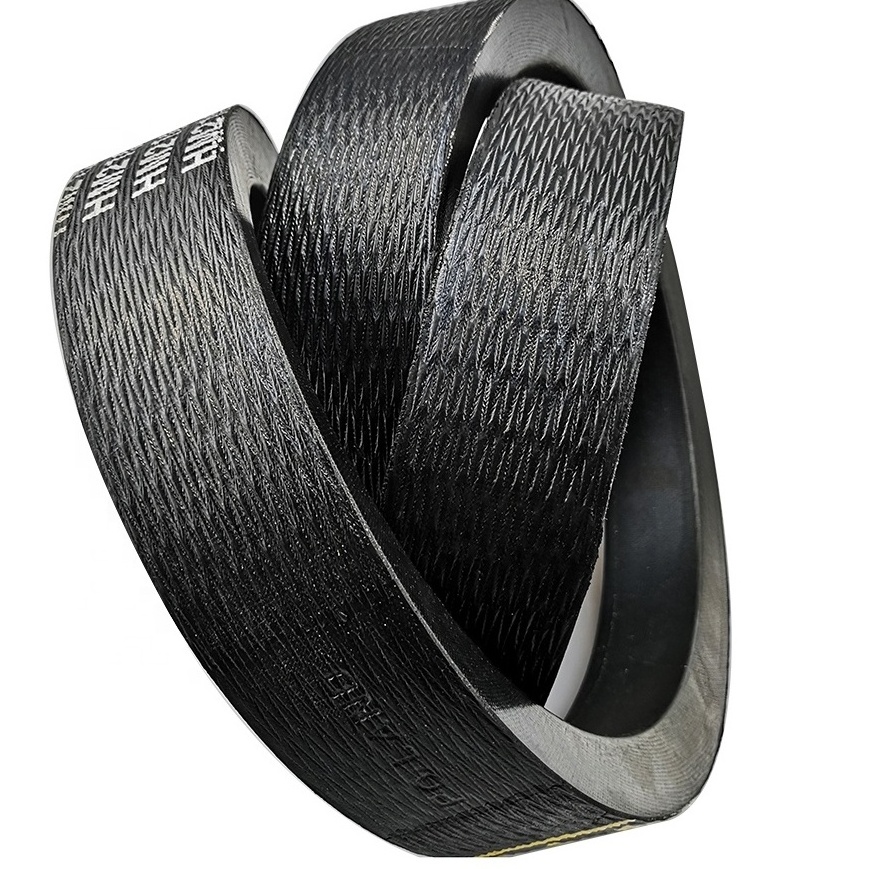

Agricultural V-Belt
-
Type:
-
HM
-
Top Width:
-
50.8
-
Height:
-
22.2
-
Angle:
-
40
-
Application:
-
Power Transmission Belt
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhejiang Sihai Rubber
-
Model Number:
-
HM
-
MATERIAL:
-
NATURAL RUBBER
-
LENGTH:
-
2000-8000MM
-
USAGE:
-
MACHINE TRANSMISION
-
COLOR:
-
Black
-
Key words:
-
Agricultural V-Belt
-
Type:
-
HM
-
Top Width:
-
50.8
-
Height:
-
22.2
-
Angle:
-
40
-
Application:
-
Power Transmission Belt
WRAPPED BANDO BELT FEATURES:
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
|
Production Type
|
Top Width
|
Pitch Width
|
Height
|
Angle
|
|
O(Z)
|
10
|
8.5
|
6
|
40°
|
|
A
|
13
|
11.0
|
8
|
40°
|
|
B
|
17
|
14.0
|
11
|
40°
|
|
C
|
22
|
19.0
|
14
|
40°
|
|
D
|
32
|
27.0
|
19
|
40°
|
|
E
|
38
|
32.0
|
23
|
40°
|
|
Production Type
|
Top Width
|
Height
|
Angle
|
|
HAA
|
13
|
6
|
40°
|
|
HBB
|
17
|
8
|
40°
|
|
HCC
|
22
|
11
|
40°
|
|
Production Type
|
Top Width
|
Height
|
Angle
|
|
AJ
|
13.6
|
10
|
40°
|
|
BJ
|
17.0
|
13
|
40°
|
|
CJ
|
22.4
|
16
|
40°
|
|
DJ
|
32.8
|
21.5
|
40°
|
Physcial Characters Of Common V-belt (wrapped)GB/T1171-2006
|
Type
|
Tensile-Strength
KN ≥ |
Reference Force Extension
%≤ |
Adhesive Strength Of The Cord (KN/m)≥
|
Adhesive Strength Between Cloth And Top Rubber(KN/m)≥
|
|
|
Z
|
2.0
|
13.0
|
-
|
|
|
|
A
|
3.0
|
17.0
|
|
|
|
|
B
|
5.0
|
21.0
|
2.0
|
|
|
|
C
|
9.0
|
31.0
|
|
|
|
|
D
|
15.0
|
31.0
|
|
|
|
|
E
|
20.0
|
31.0
|
|
|
|
