Product Overview

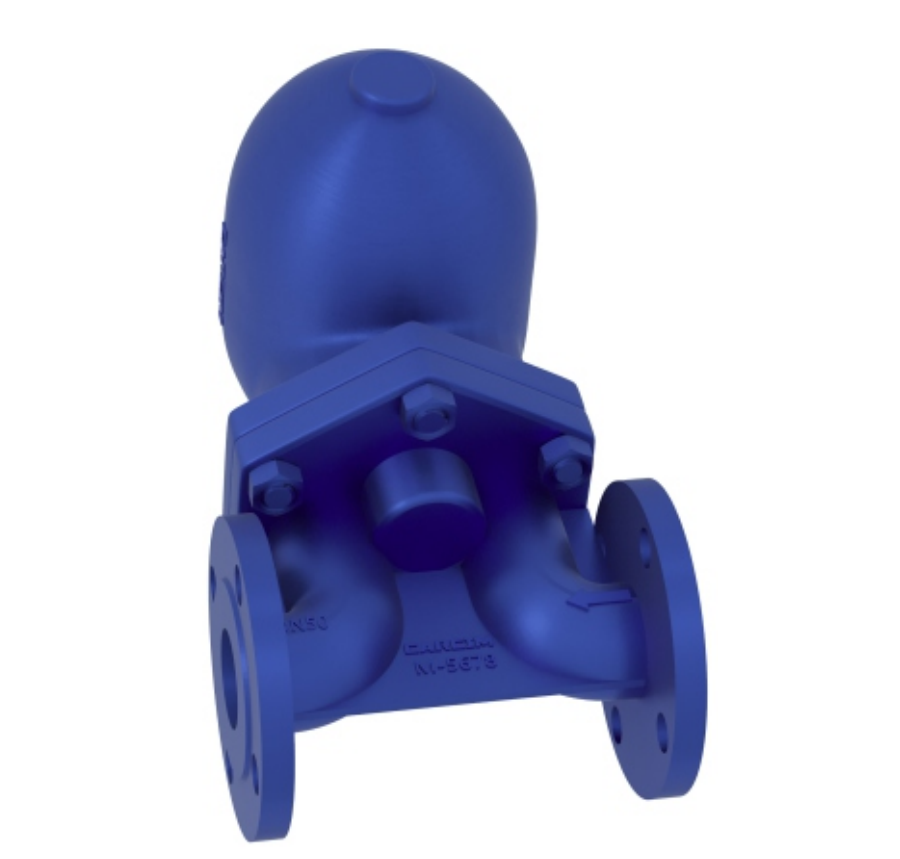

Lever float steam trap FT-44 with excellent sealing performance

When the valve is first activated, the automatic air exhaust device quickly removes non condensing gases from the system. When steam and hot condensate enter, the temperature inside the valve chamber increases, and the exhaust device automatically closes. The float ball rises or falls according to the change in condensate water level, driving the lever to adjust the opening of the valve seat hole and continuously discharge condensate. When the condensate stops entering, the floating ball descends by its own weight, driving the lever to drive the valve core to close the drainage valve seat hole.

FEATURES AT A GLANCE

1. Capable of continuously releasing saturated condensate. The heating equipment will not accumulate water, thus achieving the highest thermal efficiency. 2. Not affected by changes in steam pressure. The float ball drives the lever to automatically adjust the opening of the valve seat hole, ensuring continuous operation and stable performance. 3. Good air exhaust performance. The automatic air exhaust device can eliminate non condensing cold and hot gases, without Air lock, and works stably without noise.

MG13

MG44

MG43

When the valve is first activated, the automatic air exhaust device quickly removes non condensing gases from the system. When steam and hot condensate enter, the temperature inside the valve chamber increases, and the exhaust device automatically closes. The float ball rises or falls according to the change in condensate water level, driving the lever to adjust the opening of the valve seat hole and continuously discharge condensate. When the condensate stops entering, the floating ball descends by its own weight, driving the lever to drive the valve core to close the drainage valve seat hole.

Performance/Benefits

Capable of continuously releasing saturated condensate. The heating equipment will not accumulate water, thus achieving the highest thermal efficiency. Not affected by changes in steam pressure. The float ball drives the lever to automatically adjust the opening of the valve seat hole, ensuring continuous operation and stable performance. Good air exhaust performance. The automatic air exhaust device can eliminate non condensing cold and hot gases, without Air lock, and works stably without noise. Excellent sealing performance. The sealing element adopts a spherical structure, without concentrated wear during operation, and has a long service life.

Purpose

Used for steam heating equipment and condensate recovery systems, as well as working conditions that require rapid discharge of condensate, it can automatically, quickly, and continuously discharge condensate, effectively prevent steam leakage, and achieve the best heating effect.

Use and maintenance

1.It should be confirmed whether the maximum values of material, pressure, and temperature of the valve body can meet the requirements of the working conditions. 2.Before installation, the pipeline must be cleaned to remove debris. 3.The installation position should be as close as possible to the heating equipment. 4.It should be installed horizontally at the lowest point of the pipeline, with the flow direction consistent with the direction marked on the valve body. 5.Each heating equipment should be equipped with a separate drain valve to avoid mutual interference. 6.When ensuring the safe operation of the system, slowly open the valve in front of the drain valve to gradually warm it up to normal state. 7.Regular maintenance is necessary to ensure the normal operation of the drain valve.

Main basis for selection

1.Condensed water load (discharge volume) kg/h (selected ratio 2-3 times) 2.Maximum working pressure 3.Working pressure difference 4.Valve body material and nominal pressure 5.Connection method and size

Successful Project

Russian customers visiting factories

Factory workshop

Production process
