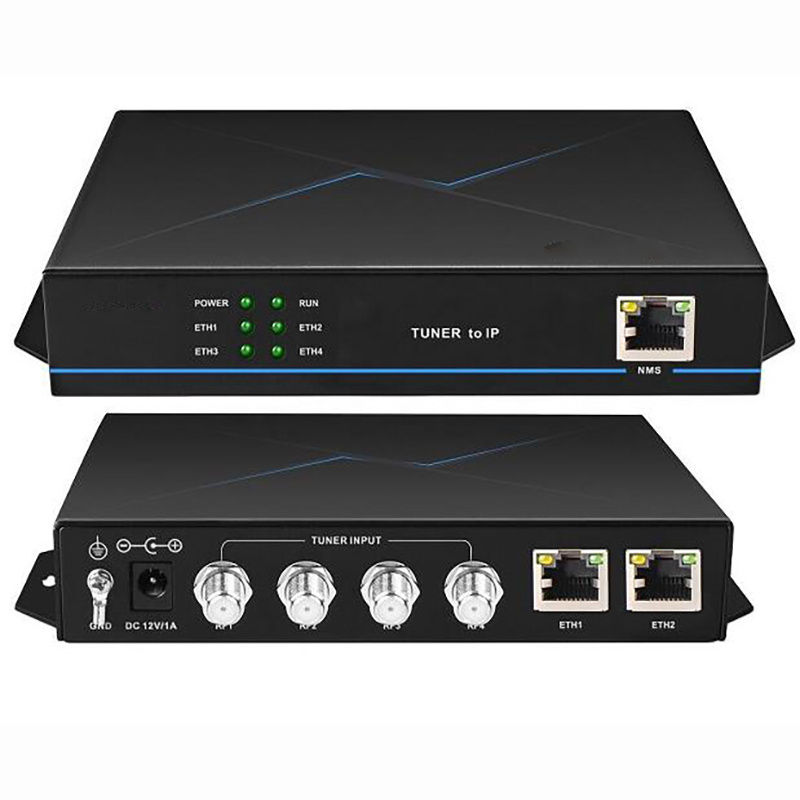

SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system
SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system

SKD2150 mini 4-channel satellite signals receiver 4 DVBS/S2 input channels 2 Gigabit Ethernet port IP output CATV headend system

FOB Reference Price: Get Latest Price
≥2 Pieces
US $259
≥50 Pieces
US $249
≥100 Pieces
US $239
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

DVBS/S2 Input Channels:
4
Intermediate Frequency:
950~2150MHz
Receiving Sensitivity:
-80dBm
IP Output Network Interface:
2 Gigabit or 100M self-adaptive IP output
8VSB Standard:
ATSC A/53
Protocol:
UDP/RTP
IP Stream:
SPTS,MPTS
Dimension:
180*122*30mm

Quick Details

Place of Origin:
Guangdong, China, China
Brand Name:
5X Link, 5X Link
Model Number:
SKD2150
DVBS/S2 Input Channels:
4
Intermediate Frequency:
950~2150MHz
Receiving Sensitivity:
-80dBm
IP Output Network Interface:
2 Gigabit or 100M self-adaptive IP output
8VSB Standard:
ATSC A/53
Protocol:
UDP/RTP
IP Stream:
SPTS,MPTS
Dimension:
180*122*30mm
Product Description
Specification
Parameters

DVBS/S2
Input Channels
4
Intermediate Frequency
950～2150MHz
Receiving Sensitivity
-80dBm

IP Output
Network Interface
2 Gigabit or 100M self-adaptive IP output
Protocol
UDP/RTP
IP Stream
SPTS，MPTS
Power Supply
Input Voltage
12V 1.5A Power adaptor
Max. Current
1A
Physical Parameters
Dimension
180*122*30mm
Operating Temperature/Humidity
-10℃～45℃、40%～70%
Storage Temperature/Humidity
-40℃～70℃、40%～95%
