Quick Details
-
Warranty:
-
25 Years, 30 years 80% of power output
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM170PM5-S
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1230*670*30mm
-
Product name:
-
Mono Shingled Solar Panels
-
Application:
-
RV Yachtes Camping
-
Solar Cell:
-
166mm*166mm
-
Cell Type:
-
Monocrystal Silicon
-
Technology:
-
Shingled
-
Module Efficiency:
-
20.6%
-
Junction Box:
-
IP68 Rated
-
Weight:
-
8.6Kg
-
Color:
-
All Black
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Shingled
-
Panel Efficiency:
-
170W
-
Warranty:
-
25 Years, 30 years 80% of power output
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM170PM5-S
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1230*670*30mm
-
Product name:
-
Mono Shingled Solar Panels
-
Application:
-
RV Yachtes Camping
-
Solar Cell:
-
166mm*166mm
-
Cell Type:
-
Monocrystal Silicon
-
Technology:
-
Shingled
-
Module Efficiency:
-
20.6%
-
Junction Box:
-
IP68 Rated
-
Weight:
-
8.6Kg
-
Color:
-
All Black
Products Description

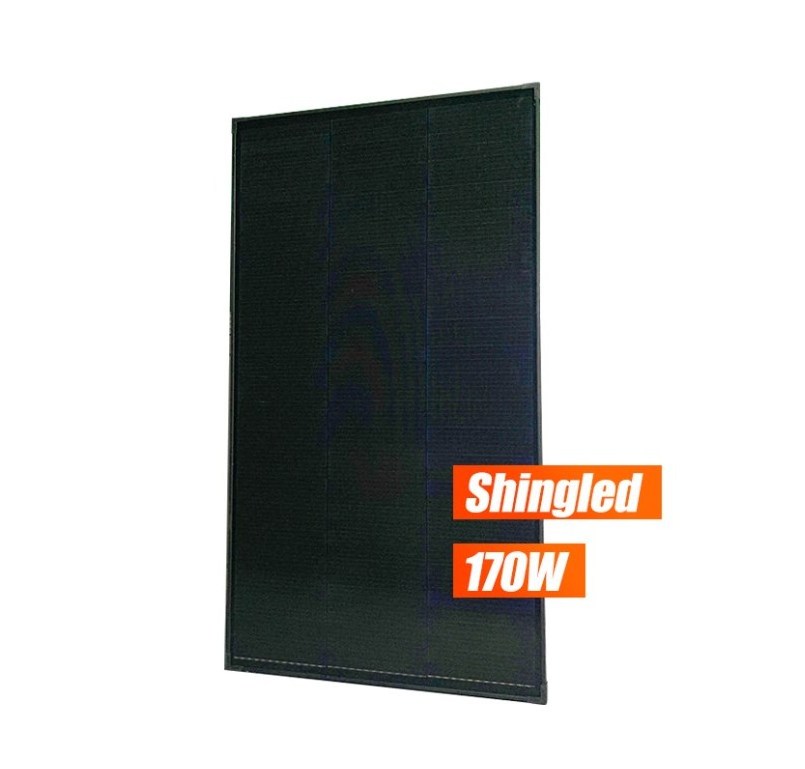

![](https://cdn.bestsuppliers.com/seo_products_img/chinasolarhome/f954fab5ce1736a8834d13ab859bfa46.jpg!/rotate/180)
While there are upfront costs to adding a solar system to your RV, most operators see it as an investment. Solar systems can significantly reduce costs such as generator fuel and plug-in charges at campgrounds. And the more you take your RV on the road, the faster the return on that investment.
Using solar can also reduce the cost of battery replacements. Ask any long-term RVer, and they’ll tell you that battery costs can quickly add up. However, adding only a single solar panel to your RV will keep your lead–acid batteries healthy and triple their effective lifespan.
![](https://cdn.bestsuppliers.com/seo_products_img/chinasolarhome/08026470fc88325b83fe0dafa48ed726.jpg!/rotate/180)
Advantages Of Shingled Module
![](https://cdn.bestsuppliers.com/seo_products_img/chinasolarhome/7f319ce4b5ea3975921b04a643646a8b.jpg!/rotate/180)
* Easy Installation
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship
Technical Details
![](https://cdn.bestsuppliers.com/seo_products_img/chinasolarhome/7c4986fc9add32ed9cf316649c72ec3f.jpg!/rotate/180)
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ |
|
|
|
|||
Nominal Power
|
70W
|
110W
|
170W
|
|||
Cell Type
|
Monocrystalline
|
Monocrystalline
|
Monocrystalline
|
|||
Cell Efficiency
|
21.4%
|
21.4%
|
21.4%
|
|||
Maximum Power Current (Impp)
|
3.74A
|
4.91A
|
7.54A
|
|||
Maximum Power Voltage (Vmpp)
|
18.70V
|
22.40V
|
22.55V
|
|||
Open-circuit Voltage (Voc)
|
22.10V
|
26.40V
|
26.65V
|
|||
Short-circuit Current (Isc)
|
4.25A
|
5.33A
|
8.05A
|
|||
Maximum System Voltage
|
500V
|
|
|
|||
Output Tolerance
|
+3%
|
|
|
|||
Cable
|
900mm / 1.5mm
2
|
900mm / 2.5mm
2
|
900mm / 2.5mm
2
|
|||
Connector Type
|
PV Compatible
|
|
|
|||
Module Structure
|
Aluminum Frame / Glass / EVA /
Backsheet (White/Black)
|
|
|
|||
Junction box rating
|
≥IP67
|
|
|
|||
Number of Diodes
|
One
|
|
|
|||
Working Temperature
|
-40℃~+80℃
|
|
|
|||
Packaging
|
|
|
|
|||
Module Dimensions
|
1050*350*30mm
|
1190*450*30mm
|
1230*670*30mm
|
|||
Module Weight
|
5.42kg
|
6.3kg
|
9.0kg
|
|||
Package
|
Single Package
|
|
|
|||
Pieces per Pallet
|
30
|
30
|
28
|
|||
Gross Weight per Pallet
|
200kg
|
225kg
|
300kg
|
|||
Pallet Dimensions
|
1200*1100*510mm
|
1200*1100*610mm
|
1240*1100*830mm
|
