DN15 - DN600 Inside Bolt Circle IBC Pipe Gaskets PTFE EPDM Bura-N

DN15 - DN600 Inside Bolt Circle IBC Pipe Gaskets PTFE EPDM Bura-N

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.19

≥500 Pieces

US $0.17

≥1000 Pieces

US $0.15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Gasket

Material:: PTFE, EPDM, NBR

Certificate:: ISO 9001

Color:: White

Size:: NPS 1/2~24", DN15-600

Thickness:: 1.5-3mm

Temperature:: -200°C ~ +260°C

Application:: Pipe Flanges, Flanged Fittings

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: LSN

Model Number:: Model-ID*OD*H

Type:: Gasket

Material:: PTFE, EPDM, NBR

Certificate:: ISO 9001

Color:: White

Size:: NPS 1/2~24", DN15-600

Thickness:: 1.5-3mm

Temperature:: -200°C ~ +260°C

Application:: Pipe Flanges, Flanged Fittings

Product Overview

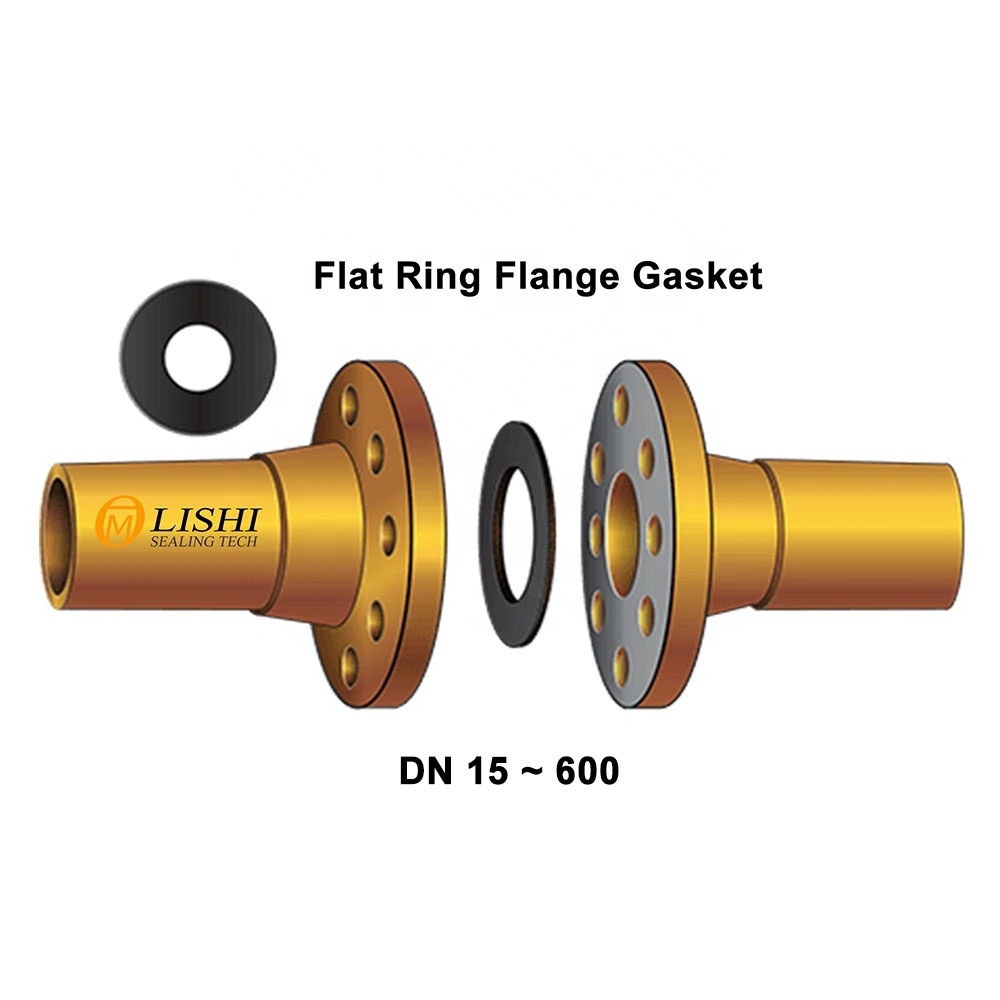

IBC Flat Ring Gaskets, PTFE, EPDM

Description

PTFE gaskets offer outstanding chemical stability, which makes them idealy suited for use in the chemical industry. In addition, a majority of PTFE products are sanitary, which makes them perfect for use in the food and pharmaceutical industries.

Advantages

* Wide temperature range

* Excellent chemical resistance

* Good stability

Applications
* Food & beverage
* Chemical
* Medical
* Pharmaceutical

Detail Images

Material Comparison Guide

Material	Max Temperature	Max Pressure	Creep Relaxation	Advantage
Pure PTFE	260°C (500°F)	5.5 MPa (800 psi)	35 ~ 55%	Excellent chemical resistance.
Filled PTFE	260°C (500°F)	8 MPa (1200 psi)	11 ~ 40%	Excellent chemical resistance.
Expanded PTFE	315°C (600°F)	20 MPa (3000 psi)	30%	Excellent chemical resistance. Highly compressible.

Nominal Dimensions

Flat Ring Gasket Dimensions for EN 1514-1, Pipe Flanges and Flanged Fittings,

PN 6, 10, 16, 25, 40

Dimensions in mm

DN	Gasket I.D.	Gasket O.D.
DN	Gasket I.D.	DN		PN 6	PN 10	PN 16	PN 25	PN 40
15	22	44	51	51	51	51
20	27	54	61	61	61	61
25	34	64	71	71	71	71
32	43	76	82	82	82	82
40	49	86	92	92	92	92
50	61	96	107	107	107	107
65	77	116	127	127	127	127
80	89	132	142	142	142	142
100	115	152	162	162	168	168
125	141	182	192	192	194	194
150	169	207	218	218	224	224
200	220	262	273	273	284	290
250	273	317	328	329	340	352
300	325	373	378	384	400	417
350	377	423	438	444	457	474
400	426	473	489	495	514	546
450	480	528	539	555	564	571
500	530	578	594	617	624	628
600	630	679	695	734	731	747
