Swing Arm Jib Crane Column Mounted Floor Pedestal Slewing Pillar Cantilever Crane With Electric Hoist

Swing Arm Jib Crane Column Mounted Floor Pedestal Slewing Pillar Cantilever Crane With Electric Hoist

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥2 Sets

US $7800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Lifting Height:: 10m

Span:: 5m

Place of Origin:: Henan, China

Brand Name:: Santo

Weight (KG):: 3400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Certification:: CE ISO

Product name:: Cantilever Jib Crane

Rotation angle:: 180 /270 /360/Customized

Hoisting mechanism:: Chain Rope Electric Hoist

Power Source:: 3 Phase 380V 50hz / Custmized

Lifting speed:: 8 M/min

Rotation speed:: 0.8~1 R/min

Key words:: 125 Kg Fixed Slewing Jib Crane

Quick Details

Application:: Widely for all kinds of working area

Rated Loading Capacity:: 10 ton

Rated Lifting Moment:: As design

Max. Lifting Height:: 10m

Span:: 5m

Place of Origin:: Henan, China

Brand Name:: Santo

Weight (KG):: 3400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Certification:: CE ISO

Product name:: Cantilever Jib Crane

Rotation angle:: 180 /270 /360/Customized

Hoisting mechanism:: Chain Rope Electric Hoist

Power Source:: 3 Phase 380V 50hz / Custmized

Lifting speed:: 8 M/min

Rotation speed:: 0.8~1 R/min

Key words:: 125 Kg Fixed Slewing Jib Crane

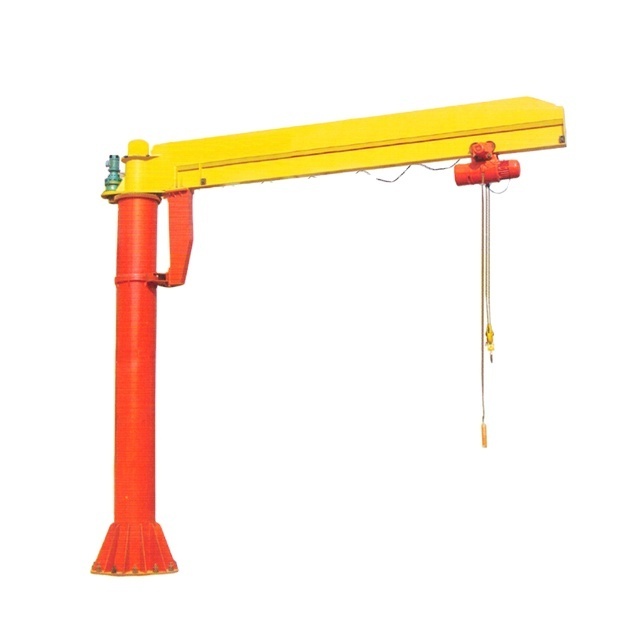

Swing Arm Jib Crane Column Mounted Floor Pedestal Slewing Pillar Cantilever Crane With Electric Hoist

Easy Lifting Fixed Pillar Free Standing JIB Crane is a small and medium-speed lifting equipment developed recently. It has characteristics of unique structure, safe and reliable operation, high efficiency, energy saving and flexibility. It can be operated lifting and is widely used at various sites for various trades.

Jib Crane Prices

This floor mounted slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications.

The Santo design allows maximum height of lift in restricted areas.

Crane comes complete with the following:

Set of signs to meet workcover requirements.
15 year structural warranty certificate.
Operator and maintenance manual.
Crane is supplied with end warning stripes, capacity sign & data plate.

Note:

Swing distance and height can be modified on request.
Suitability of existing base structure for imposed loads is the responsibility of the purchaser.

Features:

Model Capacity Range: 0.5 ton to 10 ton
Outreach Range: 2m to 12m
Maximum Slew: 360 degrees
Surface Treatment: Indoor or Outdoor Paint System
Cranes Built to Quality Standard ISO9001

Crane Options:

Hoist and Trolley (motorised or manual)
Jib Lock
Slew limits
Motorised or Manual Slew Drives
Crane Electrics
Explosion Protection in accordance to ATEX
Custom Paint Systems, Hot Dip Galvanised

Sketch & Parameters


	Load Capacity:
	0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

	Arm Length, Span:
	2m on wards

	Lift Height:
	1.5m onwards

Load Capacity, t	Arm Length, A, m	Lift Height, h, m	Total Height, H, m	Lift Speed, m/min	Travel Speed, m/min
0.5	As Required	1.5	h+0.5	7	10/20
1	As Required	1.5	h+0.55	8	10/20
2	As Required	1.5	h+0.55	8	10/20
3	As Required	1.5	h+0.6	8	10/20
5	As Required	1.5	h+0.7	7	10/20
10	As Required	1.5	h+0.75	7	10/20
