Quick Details
-
Voltage:
-
220V/380V, 380v 50hz 3phase
-
Dimension(L*W*H):
-
5200x5300x1800mm
-
Application:
-
woodworking
-
Weight (KG):
-
4500 KG
-
Power (kW):
-
22.4
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
0mm
-
Max. Length of Workpiece (mm):
-
3300mm
-
Weight:
-
4500KG
-
Cutting length:
-
2700mm, 3300mm for optional
-
Saw carriage backward speed:
-
120m/min
-
Main saw blade motor:
-
15kw
-
Scoring saw blade motor:
-
2.2kw
-
Main saw blade dimension:
-
350mmx80mm
-
Spindle speed:
-
4800r/min
-
Cutting speed:
-
0-100m/min
-
Air pressure:
-
0.6-0.7mpa
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZK / Chanson
-
Usage:
-
Wood Cutting, Woodworking
-
Voltage:
-
220V/380V, 380v 50hz 3phase
-
Dimension(L*W*H):
-
5200x5300x1800mm
-
Application:
-
woodworking
-
Weight (KG):
-
4500 KG
-
Power (kW):
-
22.4
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
0mm
-
Max. Length of Workpiece (mm):
-
3300mm
-
Weight:
-
4500KG
-
Cutting length:
-
2700mm, 3300mm for optional
-
Saw carriage backward speed:
-
120m/min
-
Main saw blade motor:
-
15kw
-
Scoring saw blade motor:
-
2.2kw
-
Main saw blade dimension:
-
350mmx80mm
-
Spindle speed:
-
4800r/min
-
Cutting speed:
-
0-100m/min
-
Air pressure:
-
0.6-0.7mpa
Product Description
The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
Specification
|

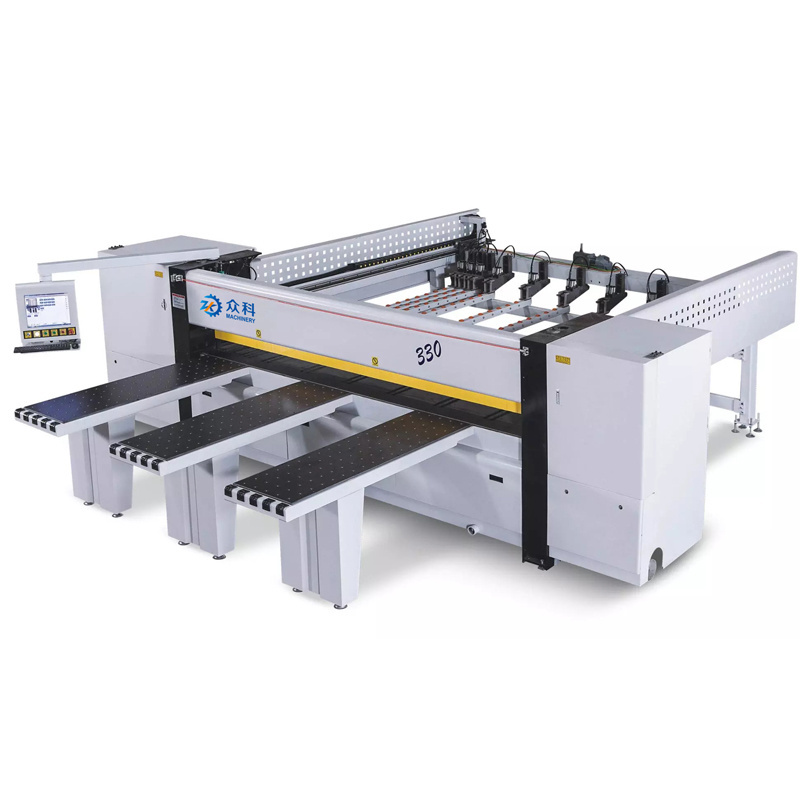

COMPUTER PANEL SAW
|
|
|
|
Max cutting length
|
3300mm
|
|
|
Max cutting thickness
|
100mm
|
|
|
Max cutting wdith
|
2750mm
|
|
|
Main saw blade dimension
|
350mmx60mm
|
|
|
Scoring blade size
|
180mmx60mm
|
|
|
Spindle speed
|
4800r/min
|
|
|
Cutting speed
|
0-100m/min
|
|
|
Backward speed
|
120m/min
|
|
|
Air pressure
|
0.6-0.7mpa
|
|
|
Main saw blade motor
|
15kw
|
|
|
Scoring saw blade motor
|
2.2kw
|
|
|
Finger gripper servo power
|
1.5kw
|
|
|
High pressure air fan power
|
2.2kw
|
|
|
Total power
|
22.4kw
|
|
|
Overall size (L×W×H)
|
6100x5300x1800mm
|
|
Details Images
Packing & Delivery
PACKAGE:
1.Thick PE foam inner, plastic film outside, in case of damage during transportation
2.Seaworthy wooden case as the general export package should be additional charged
DELIVERY TIME:
30 days after confirming order and received the deposit,detail delivery date should be decided according to
production season and order quantity.
1.Thick PE foam inner, plastic film outside, in case of damage during transportation
2.Seaworthy wooden case as the general export package should be additional charged
DELIVERY TIME:
30 days after confirming order and received the deposit,detail delivery date should be decided according to
production season and order quantity.
