- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Philippines
-
Marketing Type:
-
New Product 2022
-
Engine Brand:
-
Other
-
Weight:
-
1181 KG
-
Product name:
-

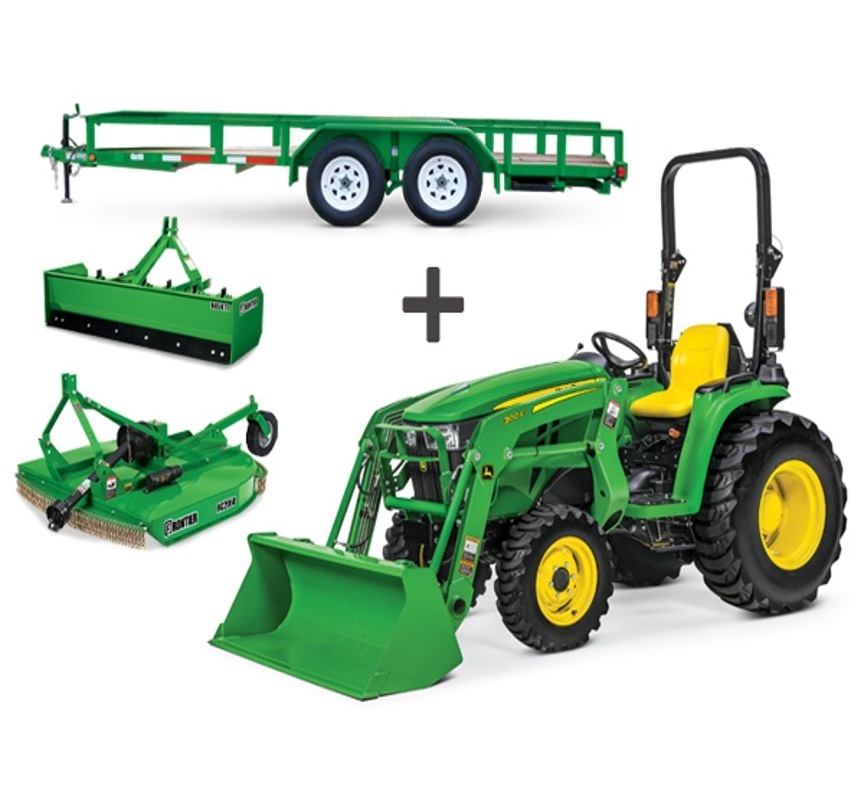

Mini Farm Tractor
-
Color:
-
Green
-
Key Word:
-
Farm Tractor 4x4
Quick Details
-
Brand Name:
-
John Deers
-
Year:
-
2022
-
Make:
-
John Deeres
-
Place of Origin:
-
Philippines
-
Marketing Type:
-
New Product 2022
-
Engine Brand:
-
Other
-
Weight:
-
1181 KG
-
Product name:
-
Mini Farm Tractor
-
Color:
-
Green
-
Key Word:
-
Farm Tractor 4x4
Key Specs
| Engine power (gross) |
SAE J1995 rated power: 18.2 kW
24.4 hp 24.7 PS at 2400 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power |
13 kW
17.4 hp |
|||
| Steering hydraulics |
15 L/min
4 gpm |
|||
| Implement hydraulics |
20.2 L/min
5.3 gpm |
|||
| Hitch type | Category 1 | |||
| Lift capacity, 24-in. behind link arms |
615 kg
1356 lb |
|||
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) | |||
| Cruise control | Optional | |||
| Approximate shipping weight (open-station; cab) |
Open operator station (OOS): 1181 kg
2603 lb Cab: Not applicable |
|||
| Wheelbase |
1593 mm
62.7 in. |
Engine
| Family |
EYDXL1.64NDA
FYDXL1.64NDA GYDXL1.64NDA |
|||
|---|---|---|---|---|
| Manufacturer | Yanmar | |||
| Engine model | 3TNV88F-EPJT2 | |||
| Engine power (gross) |
SAE J1995 rated power: 18.2 kW
24.4 hp 24.7 PS at 2400 rpm |
|||
| Power take-off (PTO) power |
13 kW
17.4 hp |
|||
| Rated engine speed | 2400 rpm | |||
| Type | Diesel | |||
| Injection pump type | Direct injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement |
3 / 1.64 L
3 / 100.2 cu in. |
|||
| Number of cylinders | Three | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke |
88 x 90 mm
3.46 x 3.54 in. |
|||
| Compression ratio | 19.1:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Water pump | |||
| Air cleaner | Dual element | |||
| Engine torque at rated speed |
72.4 Nm
53.4 lb-ft |
|||
| Fuel tank capacity |
28.5 L
7.5 U.S. gal. |
Electrical
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 55 amp | |||
| Starter size |
1.4 kW
1.9 hp |
Fuel system
| Type | Direct injection |
|---|
Transmission
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) | |||
|---|---|---|---|---|
| Left-hand reverser | No | |||
| Final drive | Spur gear | |||
| Brakes | Wet disk | |||
| Steering | Power steering | |||
| Axle capacity |
Front
880 kg 1940 lb Rear 1200 kg 2645 lb |
|||
| Creeper | No | |||
| Cruise control | Optional | |||
| Differential lock | Yes |
Hydraulics
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output |
Steering
15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
|||
| Pump type | Dual gear | |||
| Maximum operating pressure |
172 bar
2495 psi |
|||
| Draft control sensing | Position control | |||
| Remote control valves available | Up to two (optional) |
3-point hitch
| Type | Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms |
615 kg
1356 lb |
Power take-off (PTO)
| Standard | Rear - 540 rpm | |||
|---|---|---|---|---|
| Control | Independent | |||
| Clutch | Wet disk | |||
| Brake (for mid and rear PTO) | Wet disk |
Fluid capacities
| Crankcase with filter |
4.5 L
4.8 qt |
|||
|---|---|---|---|---|
| Transmission and hydraulic system |
20.8 L
22 qt |
Final drive
| Type | Spur gear |
|---|
Operator station
| Rollover protective structure |
Type
Foldable |
|||
|---|---|---|---|---|
| Platform - flat/straddle | Straddle | |||
| Gear shift location - console/floor | Left-hand side |
Dimensions
| Wheelbase |
1593 mm
62.7 in. |
|||
|---|---|---|---|---|
| Front axle clearance |
Minimum: 299 mm
11.8 in. Maximum: 333 mm 13.1 in. |
|||
| Turning radius without brakes |
2.9 m
9.4 ft |
|||
| Approximate shipping weight (open-station; cab) |
OOS: 1181 kg
2603 lb Cab: Not applicable |
| Front |
R1 Bar: 7-14
R3 Turf: 27x8.5-15 R4 Industrial: 25x8.5-14 R4 Industrial: 27x8.5-15 |
|||
|---|---|---|---|---|
| Rear |
R1 Bar: 11.2-24
|
