Quick Details
-
Model Number:
-
LXSG-15E~50E
-
Standard:
-
ISO4046
-
Product name:
-
Water Flow Meter
-
Material:
-
Stainless Steel Body
-
Keyword:
-
Water Meter Iso 4064
-
Color:
-
Gray
-
Size:
-
DN15mm~DN25mm (1 /2''~1-1/2'')
-
Application:
-
Household
-
Feature:
-
High Performance
-
Protection class:
-
IP68
-
Temperature:
-
30-90
Quick Details
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
China
-
Brand Name:
-
CLAND
-
Model Number:
-
LXSG-15E~50E
-
Standard:
-
ISO4046
-
Product name:
-
Water Flow Meter
-
Material:
-
Stainless Steel Body
-
Keyword:
-
Water Meter Iso 4064
-
Color:
-
Gray
-
Size:
-
DN15mm~DN25mm (1 /2''~1-1/2'')
-
Application:
-
Household
-
Feature:
-
High Performance
-
Protection class:
-
IP68
-
Temperature:
-
30-90

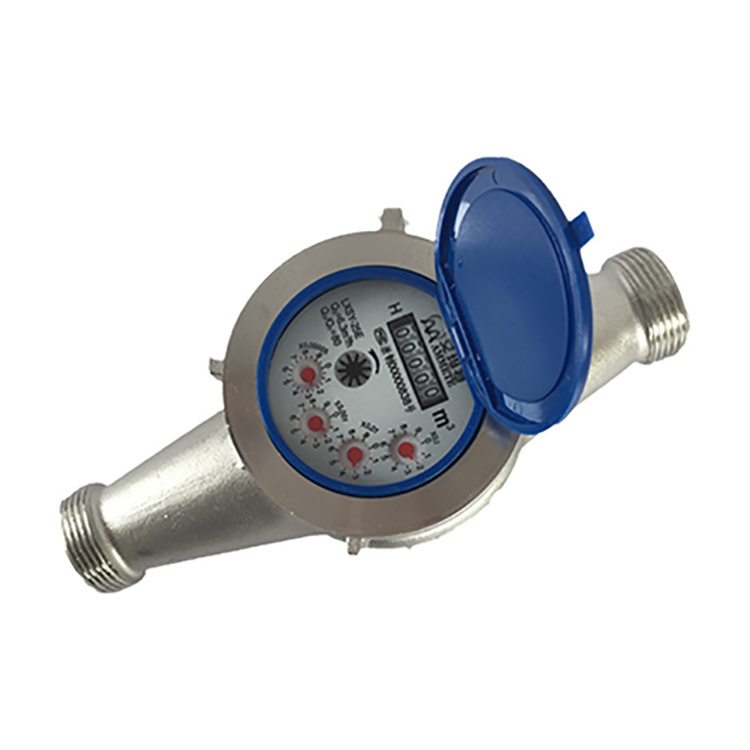

ITEM NO:LXSG-15E~50E
Stainless steel :15mm 20mm 25mm
Application: Measuring , memorizing and displaying the volume of cold(hot) water passing through the pipeline
FEATURE:
1,Multi-jet, Rotary vane wheel type, High Accuracy, low starting flow
2,Selected high quality materials for steady, reliable function and appearance. Universal use .Easy for Interchange & maintenance
3,Brass, iron, plastic( Nylon) Body or Ceramal Aluminium Alloy complex material for option.
MAIN TECHNICAL DATA:
| Water meter temperature grade | T30,T50 |
| Pressure grade | MAP10 |
| Pressure loss grade | ^P63 |
| Upstream disturbance grade: | U5 |
| Downstream disturbance grade |
D0 |
MAXIMUM PERMISSIBLE ERROR:
a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%
b)If the temperature≤30℃, In the upper zone from Q2 inclusive up to and including Q4 is ±2%
If the temperature>30℃, In the upper zone from Q2 inclusive up to and including Q4 is ±3%
--Support OEM
--Fast delivery
--Factory price
--High quality
--24-hour service
--1 year warranty
--
No limit for MOQ, trial order is welcome
