20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine
20kg 35kg Automatic Palletizer Carton Box Palletizing Machine

20kg 35kg Automatic Palletizer Carton Box Palletizing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $12500
≥3 Sets
US $11900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
non-standard
Weight:
350 KG, 200 kg
Place of Origin:
Jiangsu, China
Voltage:
220V
Key Machines:
PLC, Bearing, Pump, Pneumatic
Product name:
Full automatic column manipulator
Usage:
Load, picking and placing
Max loading:
500kg
Warranty of core components:
1 Year
Core Components:
PLC, Bearing, Pump, Pneumatic
Vertical Travel(mm):
1.5-2m
Horizonal Travel(mm):
less than 2500mm
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Customized Color

Quick Details

Machinery Capacity:
Max 460 workpieces/hour
Brand Name:
TSL
Year:
2023
Dimension(L*W*H):
non-standard
Weight:
350 KG, 200 kg
Place of Origin:
Jiangsu, China
Voltage:
220V
Key Machines:
PLC, Bearing, Pump, Pneumatic
Product name:
Full automatic column manipulator
Usage:
Load, picking and placing
Max loading:
500kg
Warranty of core components:
1 Year
Core Components:
PLC, Bearing, Pump, Pneumatic
Vertical Travel(mm):
1.5-2m
Horizonal Travel(mm):
less than 2500mm
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Customized Color
Products Description


Column Palletizer Features

1， Fast palletizing speed and stable palletizing can greatly save labor costs.
2，Small size saves space and is convenient for transportation
3，Can be used for palletizing bags, cases, boxes, bottles and barrels
4，The palletizing process is fully automated without manual intervention
Palletizer speed
300-500 bags/h
Workable bag weights
from 25 to 100 kg or customized
Voltage
380 V 50 HZ or Customized
Working Temperature
-20~50℃
Operating system
PLC
Model
Maximum service radius (m)
Maximum lifting capacity (kg)
Maximum lifting stroke (m)
Maximum rotation Angle
Repeated positioning accuracy（mm）
TSLACM-30
2.3
30
1.6
360°
±0.2
TSLACM-50
2.3
50
1.6
360°
±0.2
TSLACM-100
2
100
1.6
360°
±0.2
Details Images

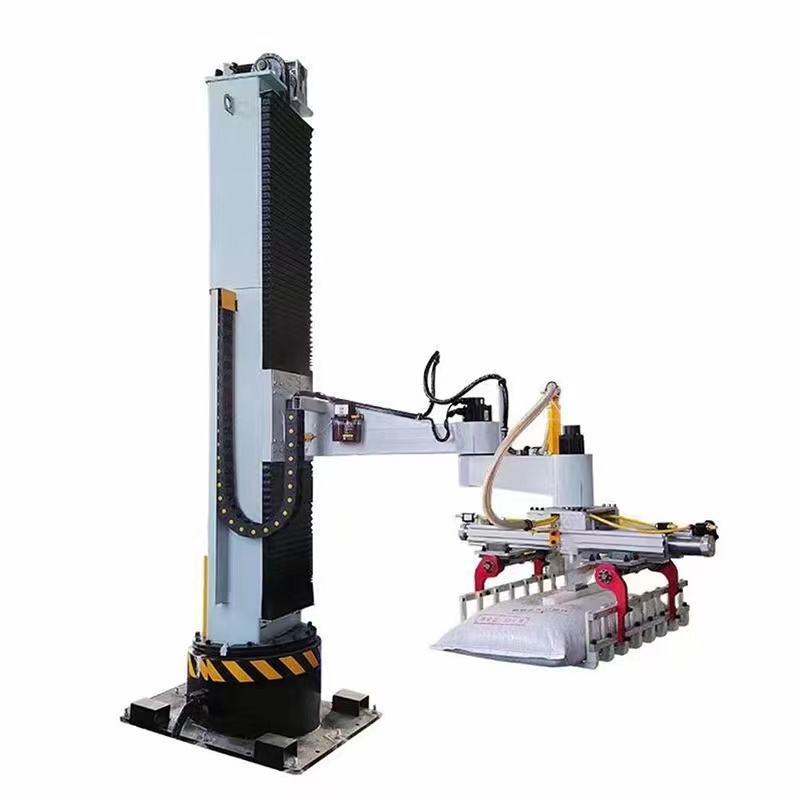

Column p alletizer is in order to reduce labor intensity, improve product outbound speed and coordination with the tray of product for storage devices, pillar type the working process of the stacker crane is a packaged product by conveyor to the stacking area location, good mechanical arm set to stacking of the goods.
Pneumatic drive, sturdy, lightweight, and flexible Customizable grippers for grabbing bags, cases, bottles, barrels
Application

Palletizers can realize a variety of palletizing logistics in the beer, beverage and food industries, and are widely used for cartons, plastic boxes, bottles, bags, barrels, film packaged products and filled products.
