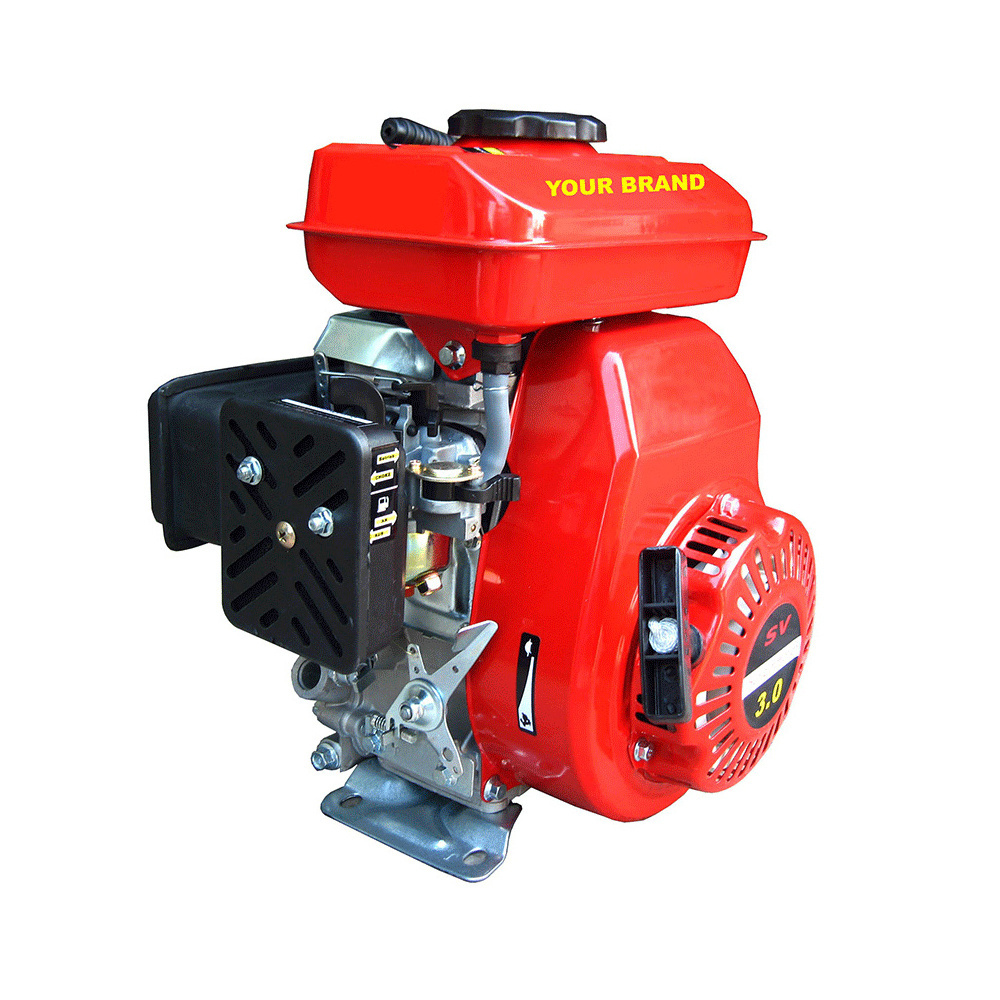

Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
TENGLONG POWER
-
Dimension(L*W*H):
-
355*325*340
-
Weight:
-
10KG
-
Rated power/speed:
-
3.0hp
-
Start system:
-
recoil or key
-
Fuel:
-
gasoline,kerosene,LPG
-
Speed( rpm):
-
3600
-
Rated power (hp):
-
2.5
-
Bore*stroke (mm):
-
54*38
-
Displacement (cc):
-
87
-
Colour:
-
red,yellow,black and orange
-
Max Power( hp):
-
3
-
N.W (kg):
-
8.8
-
Fuel capacity (L):
-
1.3
Quick Details
-
Displacement:
-
87cc
-
Emission Standard:
-
Other
-
Power:
-
3HP
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
TENGLONG POWER
-
Dimension(L*W*H):
-
355*325*340
-
Weight:
-
10KG
-
Rated power/speed:
-
3.0hp
-
Start system:
-
recoil or key
-
Fuel:
-
gasoline,kerosene,LPG
-
Speed( rpm):
-
3600
-
Rated power (hp):
-
2.5
-
Bore*stroke (mm):
-
54*38
-
Displacement (cc):
-
87
-
Colour:
-
red,yellow,black and orange
-
Max Power( hp):
-
3
-
N.W (kg):
-
8.8
-
Fuel capacity (L):
-
1.3
Products Description
|
Model
|
TL152F/P(2.5HP)
|
TL154FA/P(3.0HP)
|
TL154F/P(3.0HP)
|
TL160F/P(4.0HP)
|
||
|
Type
|
4 Stroke 1Cylinder,Forced Air Cooling,SV
|
|
4 Stroke 1Cylinder,Forced Air Cooling,OHV
|
|
||
|
Displacement(cc)
|
98
|
105
|
87
|
118
|
||
|
More x Stroke
|
52*46
|
54*46
|
54*38
|
60*42
|
||
|
Speed(rpm)
|
3600
|
3600
|
3600
|
3600
|
||
|
Max Power(hp)
|
2.5
|
3
|
3
|
4
|
||
|
Rated Power(hp)
|
1.5
|
2.5
|
2.5
|
3.5
|
||
|
Max Torque(N.m/rpm)
|
3.2/2600
|
3.8/2600
|
3.8/2600
|
5.7/2600
|
||
|
Starting System
|
Recoil
|
Recoil
|
Recoil
|
Recoil
|
||
|
Fuel Capacity(L)
|
1.3
|
1.3
|
1.5
|
3.6
|
||
|
Oil Capacity(L)
|
0.3
|
0.4
|
0.4
|
0.6
|
||
|
Fuel Consumption
|
≤450
|
≤450
|
≤450
|
≤420
|
||
|
Packing Size(mm)
|
310*290*370
|
310*290*370
|
338*295*350
|
400*345*360
|
||
|
N.W.(K个）
|
8.8
|
8.8
|
10
|
13
|
||
|
Model
|
TL168F/P
|
TL168F-1/P
|
TL170F/P
|
TL188F/P
|
|||
|
Type
|
4 Stroke,1 Cylinder,Forced Air-Cooling OHV
|
|
|
|
|||
|
Displacement(cc)
|
163
|
196
|
212
|
390
|
|||
|
Bore x Stroke(mm)
|
68*45
|
68*54
|
70*55
|
88*64
|
|||
|
Speed(rpm)
|
3600
|
3600
|
3600
|
3600
|
|||
|
Max Power(hp)
|
5.5
|
6.5
|
7
|
13
|
|||
|
Rated Power(hp)
|
4.6
|
5.2
|
5.6
|
11.5
|
|||
|
Max Torque
|
8.8/2600
|
10.8/2600
|
12/2600
|
26.5/2600
|
|||
|
Starting System
|
Recoil or Key
|
Recoil or Key
|
Recoil or Key
|
Recoil or Key
|
|||
|
Fuel Capacity(L)
|
3.6
|
3.6
|
3.6
|
6
|
|||
|
Oil Capacity(L)
|
0.6
|
0.6
|
0.6
|
1.1
|
|||
|
Fuel Consumption
|
≤395
|
≤395
|
≤395
|
≤374
|
|||
|
Packing Size(mm)
|
400*345*380
|
400*345*380
|
400*345*380
|
475*465*515
|
|||
|
N.W.(kg)
|
16
|
17
|
18
|
31.5
|
|||
