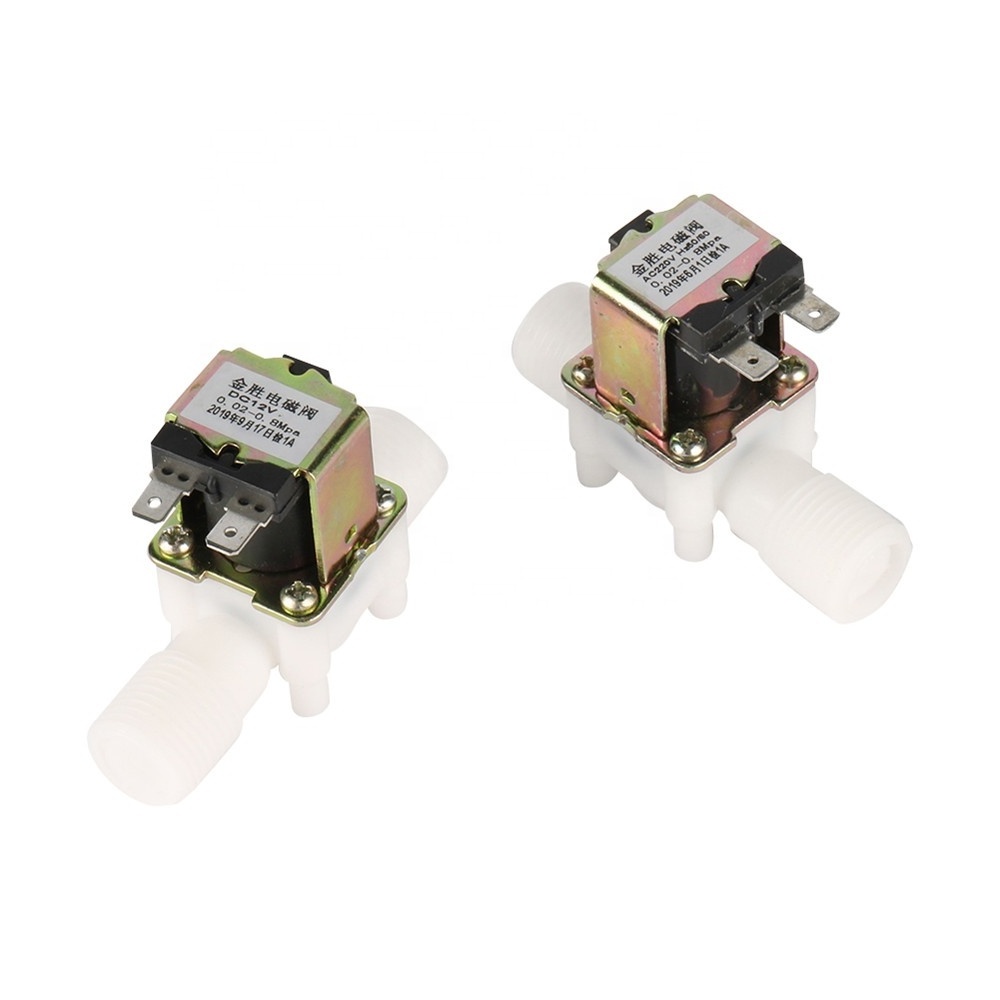

12V 220V 1/2" Male Thread Magnetic Control Valve Plastic Normally Closed Electric Air Solenoid Valve

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.78

≥100 Pieces

US $1.65

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: taimusi-11697-11698

Brand Name:: Talk-Satisfied

Customized support:: /

Product Name:: 1/2" Male Thread Solenoid Valve

Material:: Metal+Plastic

Color:: Black+White

Voltage:: DC 12V, AC 220V

Connection Port Size:: 1/2" Male Thread

Operating Temperature:: 0 ~ 80 ° C (no freezing)

Working Pressure:: 0.02-1.0Mpa

Operation Mode:: Normally Closed

Product Role:: Control The Open Or Close Of Water Inlet

Quick Details

Port Size:: 1/2" Male Thread

Warranty:: 1 year

Place of Origin:: Anhui, China

Model Number:: taimusi-11697-11698

Brand Name:: Talk-Satisfied

Customized support:: /

Product Name:: 1/2" Male Thread Solenoid Valve

Material:: Metal+Plastic

Color:: Black+White

Voltage:: DC 12V, AC 220V

Connection Port Size:: 1/2" Male Thread

Operating Temperature:: 0 ~ 80 ° C (no freezing)

Working Pressure:: 0.02-1.0Mpa

Operation Mode:: Normally Closed

Product Role:: Control The Open Or Close Of Water Inlet

FEATURES AT A GLANCE

Model Number	taimusi-11697-11698
Name	1/2" Male Thread Solenoid Valve
Material	Metal + Plastic
Voltage	DC 12V, AC 220V
Connection Port Size	1/2" Male Thread
Media	Water And Low Viscosity Fluids
Operating Temperature	0 ~ 80 ° C (no freezing)
Working Pressure	0.02-1.0Mpa
Operation Mode	Normally Closed
Product Role	Control The Open Or Close Of Water Inlet
Application	Water Pump ,Water Purifier, Coffee Machine, Washing Machine, etc.

Products Description

1/2" Male Thread Plastic Electric Solenoid Valve 12V 220V Magnetic Control Water Air Flow Switch Valves

Material: Metal + Plastic Voltage: DC 12V, AC 220V Connection Port Size： 1/2" Male Thread Media: Water And Low Viscosity Fluids Operating Temperature: 0 ~ 80 ° C (no freezing) Working Pressure: 0.02-1.0Mpa Operation Mode: Normally Closed Product Role: Control The Open Or Close Of Water Inlet Application: Water Pump ,Water Purifier, Coffee Machine, Washing Machine, etc.

Packing include:
1. 1/2" Male Thread AC 220V Solenoid Valve
2. 1/2" Male Thread DC 12V Solenoid Valve

Usage:
①water solenoid valve and high pressure water pump connected in parallel on the computer board.
② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump to stop.
③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and not waste water.

Notice:
It is manual measurement, there may be 1-2 mm error. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you.
