Quick Details
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
3000*1400*2400mm
-
Weight (KG):
-
4000 kg
-
Product name:
-

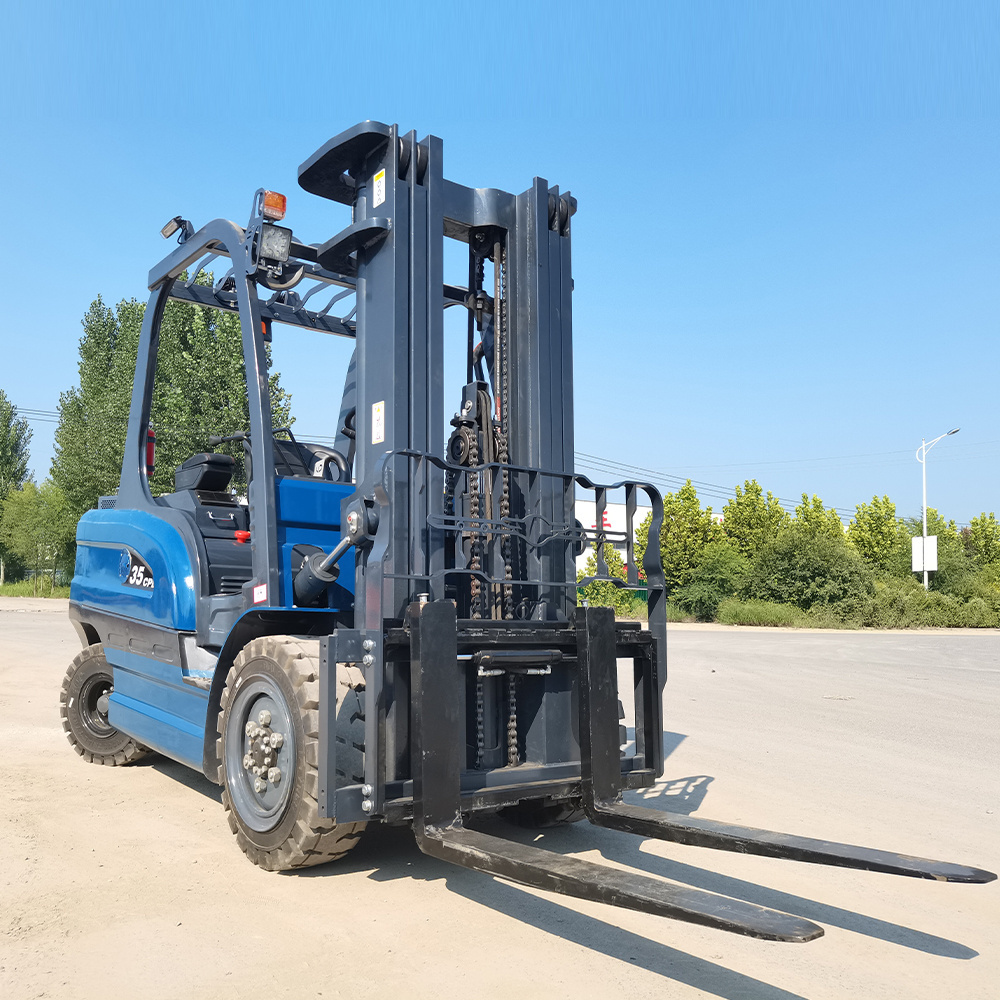

lithium battery Fully hydraulic forklift truck price
-
Type:
-
Powered Pallet Truck
-
Mast type:
-
2 Stage/3 Stage
-
Tires:
-
Solid tire
-
Power Form:
-
Electric
-
Load Capacity:
-
3500kg
-
Load Center Distance:
-
500mm
-
Wheelbase:
-
1860mm
-
Fork Dimensions:
-
45X122X1070mm
-
Turning Radius:
-
2480mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qilu
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
3000*1400*2400mm
-
Weight (KG):
-
4000 kg
-
Product name:
-
lithium battery Fully hydraulic forklift truck price
-
Type:
-
Powered Pallet Truck
-
Mast type:
-
2 Stage/3 Stage
-
Tires:
-
Solid tire
-
Power Form:
-
Electric
-
Load Capacity:
-
3500kg
-
Load Center Distance:
-
500mm
-
Wheelbase:
-
1860mm
-
Fork Dimensions:
-
45X122X1070mm
-
Turning Radius:
-
2480mm
Product Specifications
Qilu electric forkliftsafer,with minimal vibration，greater durability
And a focus on detail-oriented design to provide comfortableoperation for drivers
|
Model
|
QL-20F
|
QL-30A
|
QL-35A
|
|
Power Form
|
Ｅlectric
|
Ｅlectric
|
Ｅlectric
|
|
Load Capacity
|
2000kg
|
3000kg
|
3500kg
|
|
Load Center Distance
|
500mm
|
500mm
|
500mm
|
|
Front Overhang
|
300mm
|
420mm
|
420mm
|
|
Wheelbase
|
1600mm
|
1860mm
|
1860mm
|
|
Operating Weight (including battery)
|
2850kg
|
3700kg
|
4000kg
|
|
Forward/Backward Tilt Angle of Mast and Forks
|
5/9α/ β (°)
|
5/9α/ β (°)
|
5/9α/ β (°)
|
|
Height with Mast Lowered
|
2130mm
|
2180mm
|
2180mm
|
|
Maximum Lifting Height with Standard Mast
|
3000mm
|
3000mm
|
3000mm
|
|
Mast Height at Maximum Lifting Height
|
4000mm
|
4100mm
|
4100mm
|
|
Height of Overhead Guard (Cabin)
|
2050mm
|
2100mm
|
2100mm
|
|
Overall Length of the Vehicle
|
3410mm
|
3860mm
|
3750mm
|
|
Length to the Vertical Plane of the Forks
|
2340mm
|
2790mm
|
2680mm
|
|
Overall Width
|
1100mm
|
1220mm
|
1220mm
|
|
Fork Dimensions
|
40X122X1070mm
|
45X122X1070mm
|
45X122X1070mm
|
|
Outer Width of Fork Frame
|
1040mm
|
1240mm
|
1240mm
|
|
Minimum Ground Clearance of the Vehicle Body
|
80mm
|
150mm
|
150mm
|
|
Turning Radius
|
2230mm
|
2480mm
|
2480mm
|
|
Travel Speed, Full Load/Empty Load
|
10/12km/ h
|
12/13km/ h
|
12/13km/ h
|
|
Lifting Speed, Full Load/Empty Load
|
0.24/0.3m/ s
|
0.35/0.45m/ s
|
0.35/0.45m/ s
|
|
Lowering Speed, Full Load/Empty Load
|
0.4/ 0.36m/ s
|
0.4/ 0.36m/ s
|
0.4/ 0.36m/ s
|
|
Maximum Gradeability, Full Load/Empty Load
|
15%
|
15%
|
15%
|
|
Driving Brake Type
|
Hydraulic+Mechanical
|
Hydraulic+Mechanical
|
Hydraulic+Mechanical
|
|
Parking Brake Type
|
Machinery
|
Machinery
|
Machinery
|
|
Rated Power of Drive Motor S2 60 minutes
|
5.5kW
|
11.5kW
|
11.5kW
|
|
Rated Power of Lifting Motor S3 15%
|
5.5kW
|
12kW
|
12kW
|
|
Battery Voltage/Nominal Capacity K5
|
60V260Ah
|
48V500Ah
|
48V500Ah
|
|
Drive Control Type
|
Exchange
|
Exchange
|
Exchange
|
Product Application Scenarios
Product Details
Large load fork
Large load forks with optionalunloading height help you copewith various working conditions
Upward visibility
Press forming overhead guard providesstronger protection and good upward visibility
Adjustable safety seat
Experience ultimate comfort with our state-of-the-art machine seats.
High light & energy savings
Led lights offer a long-life usage and lower energy consumption
Forward visibility
Optimal mast width and hose lay-behind ensure a clear view throughthe mast
Easy motor maintenance
By lifting the seat, you can have a clear view of the entire motorwhich makes maintenance more convenient
