Quick Details
-
Type:
-
no touch exit button
-
Sensing Range:
-
3-15cm
-
Product name:
-

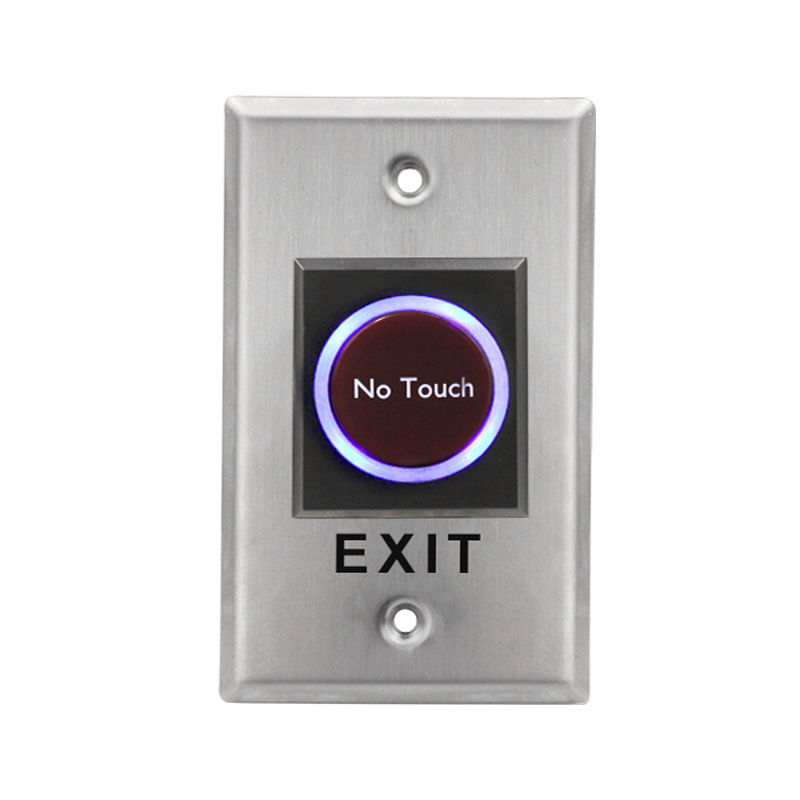

Camel LED indication infrared sensor No Touch Door Release Exit Button
-
Output Contact:
-
NO/NC/COM /LED
-
Product Size:
-
115*70*25mm
-
Mount:
-
Mortise Mounted Or Surface Mounted
-
LED Indicator:
-
Blue Color When Standby And Green Color When Active
-
Detection range:
-
1-15cm adjustable
-
Package:
-
100pcs/12kg/51*43*33cm/ctn
-
Certification:
-
CE COC
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
camel
-
Model Number:
-
K1-1
-
Type:
-
no touch exit button
-
Sensing Range:
-
3-15cm
-
Product name:
-
Camel LED indication infrared sensor No Touch Door Release Exit Button
-
Output Contact:
-
NO/NC/COM /LED
-
Product Size:
-
115*70*25mm
-
Mount:
-
Mortise Mounted Or Surface Mounted
-
LED Indicator:
-
Blue Color When Standby And Green Color When Active
-
Detection range:
-
1-15cm adjustable
-
Package:
-
100pcs/12kg/51*43*33cm/ctn
-
Certification:
-
CE COC
Camel ZK LED illuminated switches push button Wireless infrared sensor No Touch contactless Door Release Panic Exit Button
Different sizes, lanauges and symbol options for Camel Best seller LED indication infrared sensor No Touch contactless Door Release Exit Button; popular and hot selling worldwide.
K1-1 series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel plate. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years, becoming a classic style.
K1-1 series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.
Our standard version is 2 types of switch content for options. Type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.
115*70mm size is popular in American countries.
Datasheet for Camel Best seller LED indication infrared sensor No Touch contactless Door Release Exit Button
| Parameter | Description |
| Size | 115*70mm |
| Standard Structure | 304 Stainless Steel Panel, IR Sensor Button |
| Panel Material | 304 Stainless Steel Panel, Sandblast Finished |
| Current | 3A @ 12V DC, 24V DC Available |
| Output Contact | NO/NC/COM /LED |
| Mechanical Life | 100,000 tested |
| Operating Temperature | 10-55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.13kg |
| Package | 100pcs/11kg/51*43*33cm/ctn |
More options for Camel Best seller LED indication infrared sensor No Touch contactless Door Release Exit Button
1, Different sizes available for different countries: European size 86*86mm, ANSI Size 115*70mm
2, No Touch sign or Hand Symbol, different facelates to meet different requirements
3, Blue and Green colors LED indicator, blue color when standby, green color when actived
4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.
5, CE RoHS Certification, we are honered to provide CE RoHS Certifications
6, 3 years warranty to ensure you after sales service
7 . OEM/ODM experiences for top ranking brands, customization available.
Camel Best seller LED indication infrared sensor No Touch contactless Door Release Exit Button Application
More other models for your customers' choices based on Camel Best seller LED indication infrared sensor No Touch contactless Door Release Exit Button
