Quick Details
-
Application:
-
ROAD
-
Color Temperature(CCT):
-
625±5nm 465±5nm 520±5nm
-
Product Weight（kg）:
-
4.8
-
Input Voltage(V):
-
24v
-
Lamp Luminous Flux(lm):
-
80
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
30 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
NOBLE
-
Model Number:
-
NBBL-20S-RG
-
Product name:
-
Led brick light
-
Anti-stress:
-
>50T
-
Waterproof:
-
IP 67
-
Certificate:
-
CE/ ROHS/ ISO9001
-
Operating Voltage:
-
24vdc
-
LED Quantity:
-
48PCS
-
Embedded parts material:
-
201 stainless steel
-
Top shell material:
-
UV resistant and wear-resistant PC material
-
Install method:
-
Buried type
-
Visual distance:
-
>500 Meter
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Warranty(Year):
-
1-Year
-
Lamp Body Material:
-
UV resistant and wear-resistant PC material
-
Application:
-
ROAD
-
Color Temperature(CCT):
-
625±5nm 465±5nm 520±5nm
-
Product Weight（kg）:
-
4.8
-
Input Voltage(V):
-
24v
-
Lamp Luminous Flux(lm):
-
80
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
30 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
NOBLE
-
Model Number:
-
NBBL-20S-RG
-
Product name:
-
Led brick light
-
Anti-stress:
-
>50T
-
Waterproof:
-
IP 67
-
Certificate:
-
CE/ ROHS/ ISO9001
-
Operating Voltage:
-
24vdc
-
LED Quantity:
-
48PCS
-
Embedded parts material:
-
201 stainless steel
-
Top shell material:
-
UV resistant and wear-resistant PC material
-
Install method:
-
Buried type
-
Visual distance:
-
>500 Meter

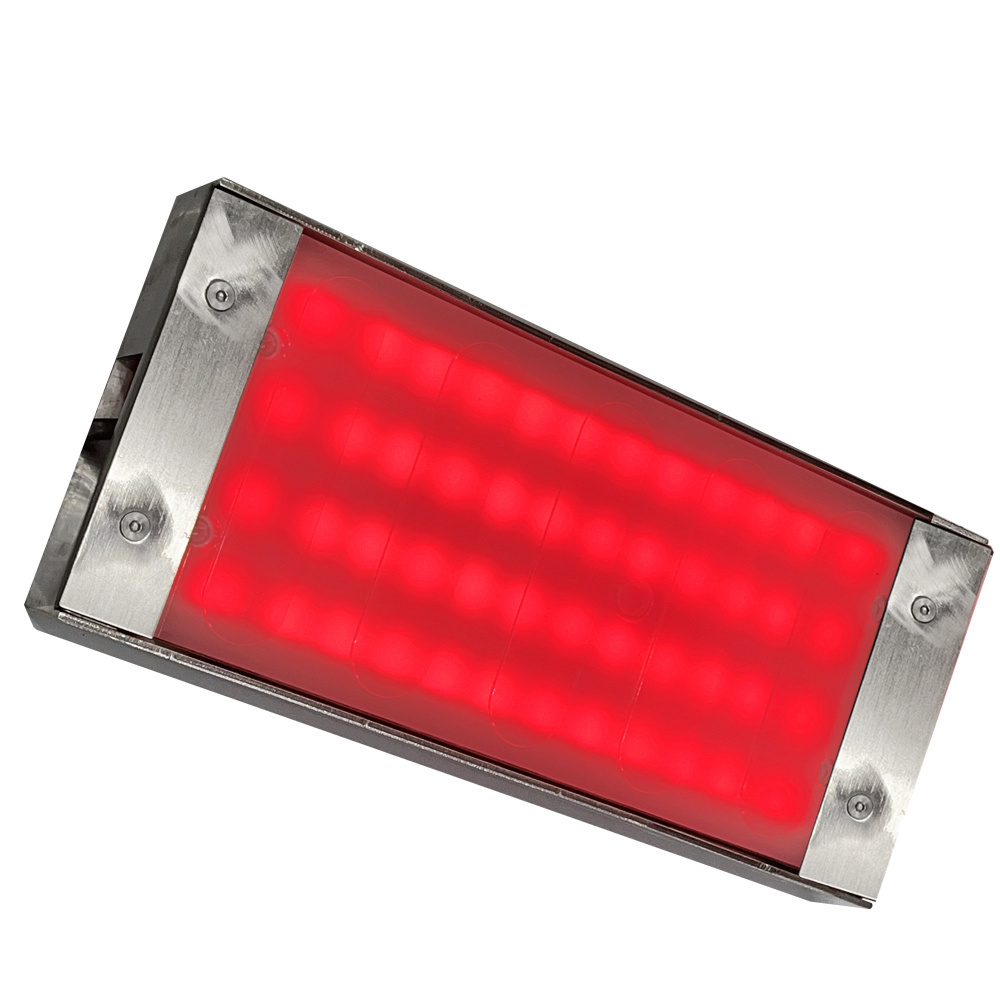

Led Brick Lights,Smart Pedestrian Zebra Crossing Floor Tiles Traffic Light for Pedestrian Safety
Product Specification
|
Working Voltage
|
24vdc
|
|
Waterproof level
|
IP67
|
|
Visual distance
|
> 500 M
|
|
Color
|
red, green
|
|
Size
|
365*216*30mm
|
|
Relative humidity
|
10%-95%
|
|
Anti-stress
|
>50T
|
Production details
structures
Smart zebra crossing floor tile lights.
This product consists of 2 parts, one part is the core product, and the other part is the
installation structure.
About this module,
2 colors are installed for regular pedestrian streets, and 3 colors are usually produced for
driveways, we
accept OEM orders,
Welcome to discuss with us
Product Description
Smart pedestrian zebra crossings have been designed to reduce the number of traffic accidents that occur in many busy areas and increase
in this way safety for pedestrians. This technical solution functions with a series of sensors which detect movement every time
someone is crossing or about to cross. The light panels on the floor connected to these sensors immediately light up and help
drivers see in an easier and quicker way that there are pedestrians crossing. Additionally, to the panels on the floor, two
vertical panels, one on each side of the road, also light up.
Wiring diagram
Product Advantages
1)
Easy installation and linkage with existing traffic control system
2) Applicable to all intelligent transportation systems
3) IP67 certification, dustproof, waterproof and durable
4) PE material and molded, impact resistance and pressure resistance of 50 tons
5) Low energy consumption,
the lamp beads use high-brightness Epistar lamp beads, more stable performance and longer life
6) Detachable base, easy to replace
Applications
Intelligent pedestrian zebra crossing are applied to one-shaped intersections, T-shaped
intersections, crossroads, and various complex intersections, synchronous pedestrian traffic lights, and guide pedestrians to pass
through traffic intersections safely.
Packing & Delivery
seven lights
Company Profie
1.SHENZHEN NOBLE OPTO CO., LTD is a high-tech private enterprise, Professional in researching, developing, and manufacturing high
flux traffic signal light, solar power traffic signal.
2.Since(2008) the establishment of the company, we recognize the importance of providing good quality products and best pre- to
after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led
traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and
Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore
etc.
3.Our philosophy for management is to service our client with best quality and honesty. We will continue our effort in
manufacturing best quality LED Traffic Light, LED Tube Light, LED Street Light etc., and making Noble Opto a first class LED
traffic light, solar power traffic lights, led traffic signal, LED Street Light manufacturer around the world.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc.
2. Whole solar traffic light system include?
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problems on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
