Name: Engine
Brand: Cummins QSB4.5
Original: China
International beand engines, strong driving force, low fuel consumption, high economic benefits
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
VMAX
-
Fork Length:
-
1800mm
-
Fork Width:
-
200mm
-
Overall Dimensions:
-
4900x2320x2970mm
-
Weight (KG):
-
17500 kg
-
Manufacturer:
-
VMAX
-
Model:
-
CPCD160
-
Engine:
-
Cummins 6BT5.9
-
Load Center:
-
600mm
-
Transmission:
-
Automatic/manual
-
Mast:
-
duplex 3m wide view
-
Attachment:
-
fork positioner
-
Tire:
-
Pneumatic/solid
-
Attachments:
-
paper roll clamp, rotator, black clamp..
-
Color:
-
white, yellow, red, etc..
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VMAX
-
Fork Length:
-
1800mm
-
Fork Width:
-
200mm
-
Overall Dimensions:
-
4900x2320x2970mm
-
Weight (KG):
-
17500 kg
-
Manufacturer:
-
VMAX
-
Model:
-
CPCD160
-
Engine:
-
Cummins 6BT5.9
-
Load Center:
-
600mm
-
Transmission:
-
Automatic/manual
-
Mast:
-
duplex 3m wide view
-
Attachment:
-
fork positioner
-
Tire:
-
Pneumatic/solid
-
Attachments:
-
paper roll clamp, rotator, black clamp..
-
Color:
-
white, yellow, red, etc..
Product Description
Product Application
container diesel forklift montacargas 13ton 15ton 16ton 12ton 10 ton forklift truck with fork positioner and ac cabin
1) Engine optional: China brand，USA，UK engine
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1820/1970/2120/2420mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc..
7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..
|

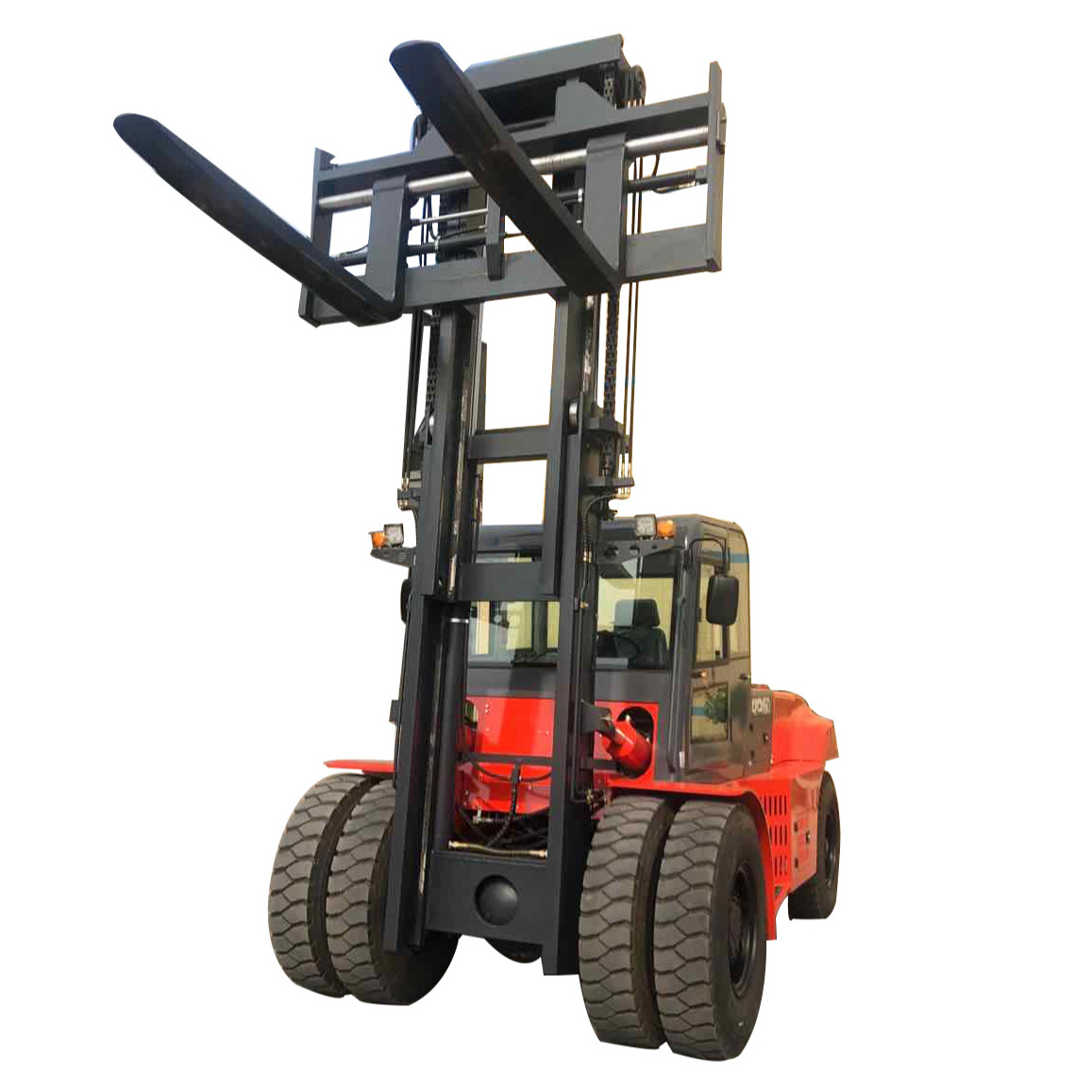

VMAX small 16ton diesel forklift
|
|
|
|
|
|
|||||
|
Item
|
|
Specification
|
|
Unit
|
|
|||||
|
General
|
1
|
Model
|
|
|
CPCD160
|
|||||
|
|
2
|
Power Type/model
|
|
|
Diesel
|
|||||
|
|
3
|
Rated Capacity
|
|
Kg
|
16000
|
|||||
|
|
4
|
Load Center
|
|
mm
|
600
|
|||||
|
Dimensions
|
5
|
Lift Height
|
|
mm
|
3000
|
|||||
|
|
6
|
Fork Size(LxWxT)
|
|
mm
|
1800*200*90
|
|||||
|
|
7
|
Fork Spread(outside)(Min./Max)
|
|
mm
|
500/2140
|
|||||
|
|
8
|
Mast Tilt Angle(F/R)
|
|
deg
|
6·/12
|
|||||
|
|
9
|
Fork Overhang
|
|
mm
|
800
|
|||||
|
|
10
|
Overall size
|
Length without forks
|
mm
|
4900
|
|||||
|
|
11
|
|
Overall Width
|
mm
|
2320
|
|||||
|
|
12
|
|
Mast Lowered Height
|
mm
|
2970
|
|||||
|
|
13
|
|
Overhead Guard Height
|
mm
|
2770
|
|||||
|
|
14
|
Outer turning Radius
|
|
mm
|
4840
|
|||||
|
Performance
|
15
|
Speed(Unload/Load)
|
Travel
|
km/h
|
30/22
|
|||||
|
|
16
|
|
Lifting
|
mm/s
|
300
|
|||||
|
|
17
|
Max.gradeability(Load)
|
|
%
|
20
|
|||||
|
|
18
|
Max.drawbar pull(Load)
|
|
KN
|
110
|
|||||
|
|
19
|
Service Weight
|
|
kg
|
17500
|
|||||
|
Wheels&Tires
|
20
|
Tire
|
Front
|
|
4×12.00-20-18PR
|
|||||
|
|
21
|
|
Rear
|
|
2×11.00-20-18PR
|
|||||
|
|
22
|
Tread
|
Front
|
mm
|
1660
|
|||||
|
|
23
|
|
Rear
|
mm
|
1740
|
|||||
|
|
24
|
Wheelbase
|
|
mm
|
3250
|
|||||
|
|
25
|
Ground Clearance(Under mast)
|
|
mm
|
330
|
|||||
|
Power & Transmission
|
26
|
Battery
|
Voltage/Capacity(5HR)
|
VA/h
|
2X12/120
|
|||||
|
|
27
|
Engine
|
Model
|
|
6BT5.9-C130
|
|||||
|
|
28
|
|
Manufacture
|
|
CUMMIS
|
|||||
|
|
29
|
|
Rated Output
|
Kw
|
97
|
|||||
|
|
30
|
|
Rated Torque
|
N.m
|
423
|
|||||
|
|
31
|
|
o.Of Cyinder
|
|
6
|
|||||
|
|
32
|
|
Bore*stroke
|
mm
|
102/120
|
|||||
|
|
33
|
|
Displacement
|
L
|
5.9
|
|||||
|
|
34
|
Transmissions
|
Manufacture
|
|
YQXD120
|
|||||
|
|
35
|
|
Type
|
|
Fluid TorqueConverter
|
|||||
|
|
36
|
|
tageFWD/RVS
|
|
2/1
|
|||||
|
|
37
|
Operating Pressute
|
|
Mpa
|
19
|
|||||
Detailed Images
Machine Parts
Main Parts
Name:
Transmission
Brand:
YQXD120
Original:
China
China top prefessional transmission, precise gear and long life usage.
Machine Parts
Name:
operation type
easy operating steering wheel, fast electronic shift, convenient handle, micro brake & foot brake with hydraulic pedal, etc..
Main Features
Name:
wide view mast
Brand:
VMAX
Original:
China
Strong U-steel, lifting cylinder, chain, bearing, etc..
Forklift Attachments
Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps,
push/pull, etc..
push/pull, etc..
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Professional spare parts in stock
* Top brand spare parts supplied.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
L:2700mm,W:1300mm, H: 2090mm
|
|
|
Weight
|
4.3ton
|
|
|
Packaging Details
|
Packed the forklift with plastic foam, all wheels fixed with wooden corner block, tightened with frap rope,etc..
|
|
|
Loading
|
|
|
|
Container
|
20GP
|
|
|
Pcs
|
3pcs
|
|
|
Container
|
40HQ
|
|
|
Pcs
|
5pcs
|
|
|
Packaging Details
|
Professional delivering member, factory loading platform, packing stable, etc..
|
|
Our factory
VMAX forklift introduction
ANHUI VMAX HEAVY INDUSTRY CO.,LTD
is located in Centralized Demonstration Area, Lu’an city of Anhui Province, China. Established in 2010 and total investment more than two hundred million.
Our products are various from diesel forklift 1-35ton, LPG forklift 1-5ton, electric forklift 1-5ton, wheel loader, reach truck, pallet truck, stacker, car tailbord, etc..
We have about 30000 square meters area, include forklift testing ground, research and development center, marketing center, etc.. we passed CE, EPA, ISO, BV,SGS certificates etc..
We actively explore the international market and participate in the related industries of various exhibitions. we have set up sales network in India, Turkey, Poland, Hungary, Spain, UK, Saudi Arabia, Oman, South Africa, Nigeria, Algeria, America, Mexico, Colombia, Chile, Bangladesh, Thailand, Australia, New Zealand and other countries and regions. And our products praised highly by our customers.
Our products are various from diesel forklift 1-35ton, LPG forklift 1-5ton, electric forklift 1-5ton, wheel loader, reach truck, pallet truck, stacker, car tailbord, etc..
We have about 30000 square meters area, include forklift testing ground, research and development center, marketing center, etc.. we passed CE, EPA, ISO, BV,SGS certificates etc..
We actively explore the international market and participate in the related industries of various exhibitions. we have set up sales network in India, Turkey, Poland, Hungary, Spain, UK, Saudi Arabia, Oman, South Africa, Nigeria, Algeria, America, Mexico, Colombia, Chile, Bangladesh, Thailand, Australia, New Zealand and other countries and regions. And our products praised highly by our customers.
VMAX is on listed market successfully on April, 2017. More than 400 hundreds works, provide you superior quality and best service.
Certifications
Customer Photos
FAQ
FAQ
1, Q: Why do you choose VMAX?
A: We are professional forklift manufacture and a stock listed company which can provide you good quality and service.
2, Q: What about your quality?
A: Our parts is the top brand in China. And technology is from T-C-M.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
4, Which is the port of yours?
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA.
