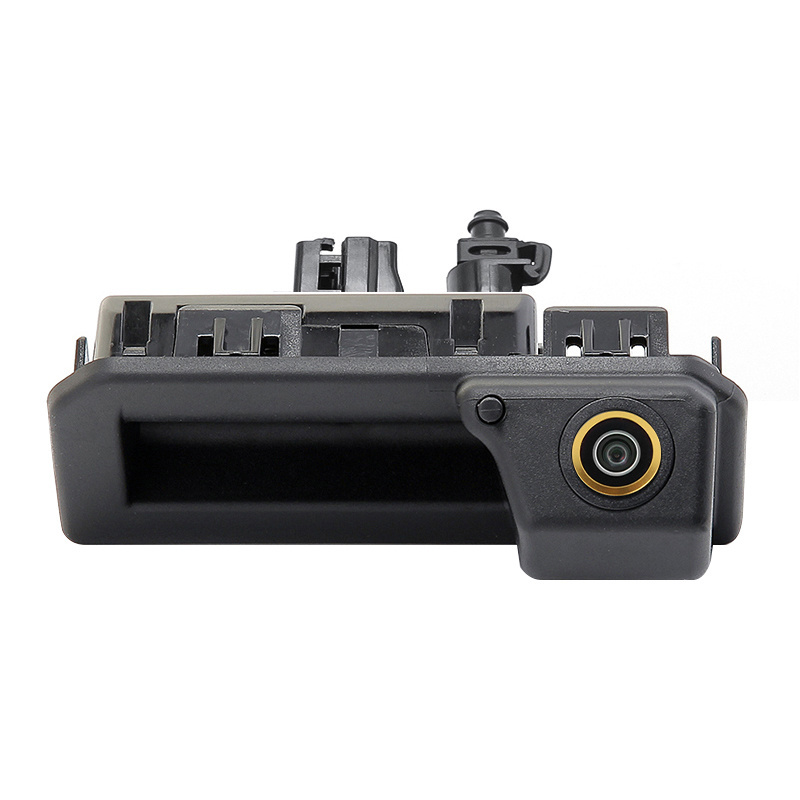

CVBS AHD 1080P Vehicle Trunk Handle With Water Spraying Reverse Backup Camera For Audi Q2 Q3 A5 A6 VW Polo Passat EOS Cayenne

CVBS AHD 1080P Vehicle Trunk Handle With Water Spraying Reverse Backup Camera For Audi Q2 Q3 A5 A6 VW Polo Passat EOS Cayenne

* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color
separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded
and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Note: The AHD trajectory camera not need CANBUS or OBD interfaces, the camera built-in reversing Tracks module, just connect the
power. Adjust the track automatically according to the moving position and speed of car body and angle, Not support steering wheel
control. only fit for AHD monitor .

* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1920x1080P (PAL) or 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: 92W/200W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W

Tip:
1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all
cables.(The trajectory camera only supports AHD video signal)
3. Optional "F" only is CVBS 7080 cheap Chips . it is 120 degree plastic flat glass lens, suitable for old android dvd and and
monitor .
4. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is
correctly connected.

For Audi Q2 Q2L Q3 A5 A5L A6 A6L 2017-2019
For VW Polo Passat EOS 2019-2020
For Porsche Cayenne 2019-2020
For Skoda Kodiak 2017-2018
