Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greetech
-
Model Number:
-
GT02
-

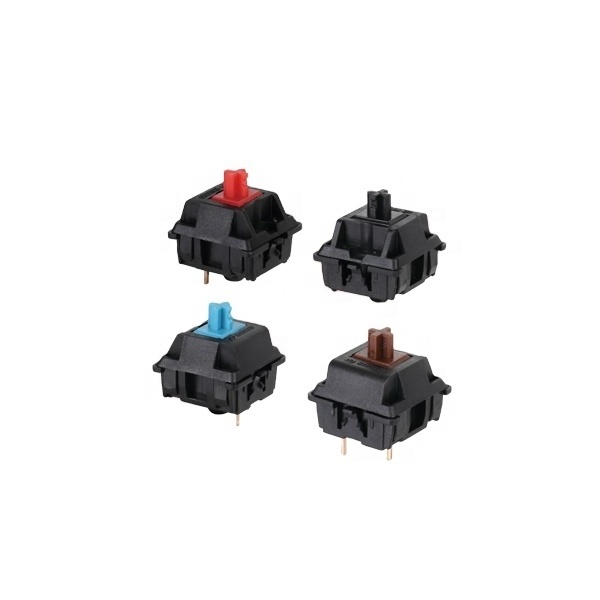

Stem color:
-
Blue, brown, black, red.
-
Contact Material:
-
Au Alloy
-
Mounting way:
-
no pins, snap in PCBA
-
RGB type:
-
can be inserted with LED
-
Rating:
-
12VDC/AC max.10ma AC/DC max
-
Electrical life:
-
over 50,000,000 cycles (Load )
-
Mechanical Life:
-
over 50,000,000 cycles (No Load )
-
Ambient Humidity:
-
<85%RH
-
Current & Voltage:
-
10ma & 12v AC/DC maximum
-
Product name:
-
keyboard switch
Quick Details
-
Protection Level:
-
IP00
-
Max. Current:
-
10mA AC/DC
-
Max. Voltage:
-
12VDC/AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greetech
-
Model Number:
-
GT02
-
Stem color:
-
Blue, brown, black, red.
-
Contact Material:
-
Au Alloy
-
Mounting way:
-
no pins, snap in PCBA
-
RGB type:
-
can be inserted with LED
-
Rating:
-
12VDC/AC max.10ma AC/DC max
-
Electrical life:
-
over 50,000,000 cycles (Load )
-
Mechanical Life:
-
over 50,000,000 cycles (No Load )
-
Ambient Humidity:
-
<85%RH
-
Current & Voltage:
-
10ma & 12v AC/DC maximum
-
Product name:
-
keyboard switch
Product Description
Specification
|
Rating
|
|
12VDC/AC max.10ma AC/DC max
|
|
|
Travel
|
Pre-trave
|
2.0+/-0.6mm
|
|
|
|
Total-trave
|
4.0+/-0.4mm
|
|
|
Contact Resistance(Initiative)
|
|
200mΩ Max
|
|
|
Insulation Resistance
|
|
100MΩ Min
|
|
|
Voltage Resistance
|
|
10~55Hz, move 0.75mm(p-p)
|
|
|
Dielectric Strength
|
|
AC100V (50-60HZ) 1 Minute
|
|
|
Operating Temperature
|
|
-40℃-+85℃
|
|
|
Storage Humidity
|
|
85% RH Max
|
|
|
Service Life
|
Electrical
|
over 50,000,000 cycles (Load )
|
|
|
|
Mechanical
|
over 50,000,000 cycles (No Load )
|
|
Related products
Packing & Delivery
1.Pack out: 6000pcs/CTN
2.Gross Weight: about 3.5KG/CTN
