• Cotton: Organic solvent, water, oil, alkalinity solvent, beverage, pharmaceuticals
• Polypropylene: Water, dilute acids, oxidizing agents, plating solution;
• Glass fiber: Chemicals, organic solvent, strong acid and alkali, high temperature resistance;
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1
-
Size:
-
10-40 INCH
-
Power:
-
1
-
Application:
-
Wastewater Treatment
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Certification:
-
ISO9001:2008
-
Function:
-
Filtering Suspended Matter
-
Capacity:
-
0.3-200000T/H
-
Processing:
-
Industry Waste Water Etc
-
Feature:
-
Water Purifier Plant
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Material:
-
PP/COTTON/GLASS FIBER, PP/COTTON/FIBERGLASS
-
Weight:
-
1
-
Size:
-
10-40 INCH
-
Power:
-
1
-
Application:
-
Wastewater Treatment
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Certification:
-
ISO9001:2008
-
Function:
-
Filtering Suspended Matter
-
Capacity:
-
0.3-200000T/H
-
Processing:
-
Industry Waste Water Etc
-
Feature:
-
Water Purifier Plant
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Product Description

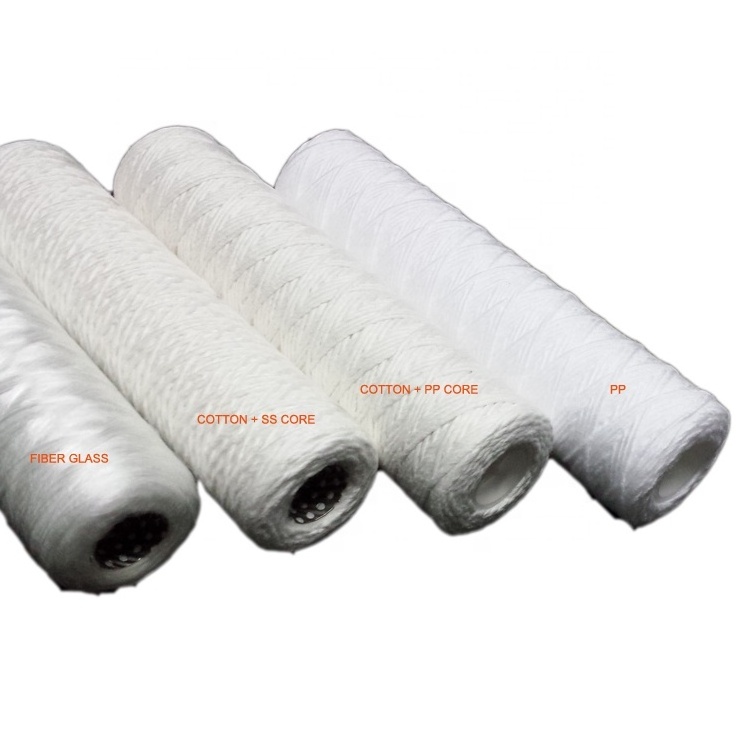

String Wound Cartridge Filters
Features & Benefits
• String wound filter cartridges is used in pre-filter application;
• This enhanced design provides improved dirt-holding capacity
over standard wound cartridge;
• Provides long life-cycle;
• Materials are listed as acceptable for potable and edible;
• Nominal micron rating 1-150μm;
Introduction
Applications
Recommended Operating Conditions
• Maximum differential pressure: 4.5bar at 25℃
• Recommended change out: 1-1.5bar
• Maximum temperature: PP yarn + PP core (80℃); Cotton yarn + SS core (180℃); Glass fiber + SS core (200℃)
Specifications
Material of Construction
• Yarn: Polypropylene, cotton, glass fiber;
• Core: Polypropylene, stainless steel
Ordering Information
|
Model SW Material
|
Support Core
|
Dimension
|
Micron Rating
|
End Adaptor
|
Seal
|
Length Inch
|
|
SW-1
PP SW-2 Cotton SW-3 Glass Fiber |
P-PP
S-Stainless Steel |
S-ID28mm
OD62-65mm B-ID28mm OD110-115mm |
01:1μm
03:3μm 05:5μm 10:10μm ...... ...... |
Code 0-DOE w/o adaptor
Code 7 - 226/Fin Code 8 - 222/Fin Code 3 - 222/Flat closed |
E-EPDM
N-Buna S-Silicone V-Viton |
5:5"
10:10" 20:20" 30:30" 40:40" 50:50" 60:60" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
