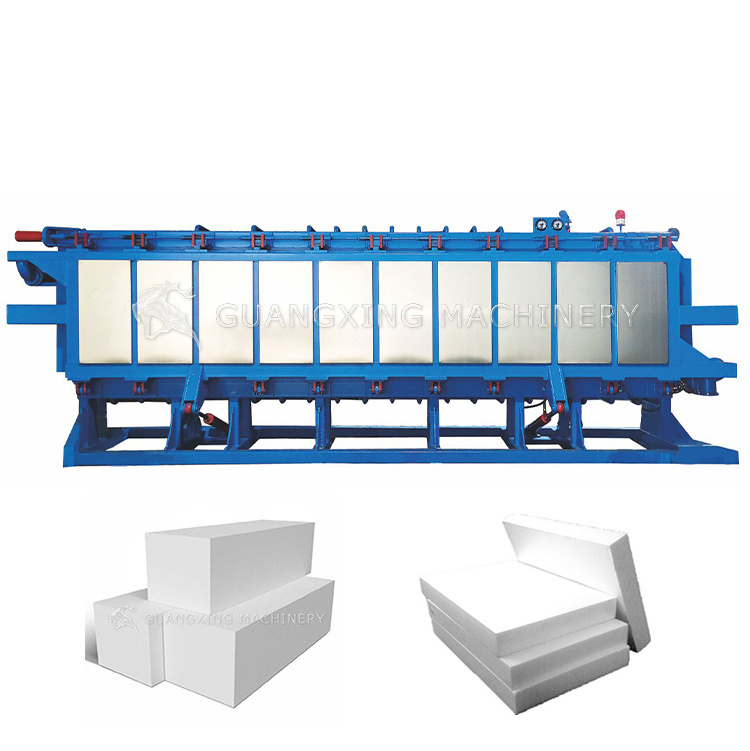

The machine is used for foaming EPS beads. The foamed EPS beads can be widely used for EPS Panel, Box, Insert Block , ICF, Hourdis, Styrofoam Packaging , Helmet , Cornice , Ceiling Board , etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
guangxing
-
Voltage:
-
380V or 220V alternated
-
Power:
-
7kw 11kw 15kw
-
Dimension(L*W*H):
-
2000x1000x500mm
-
Weight:
-
3000 kg
-
Features:
-
Automatic
-
Product name:
-
EPS Machine
-
EPS Block Size:
-
2000x1000x500mm
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Insulation Wall
-
Density:
-
4.5-30Kg/m3
-
ProductionEfciency(Standard Condition):
-
Density:4 -8kg/m3 ,cycle time : 2-4 Min/cycle
-
Steam Consumption:
-
1tons block steam consumption around 2-4 Tons steam
-
Max.Extemal Dimension:
-
3600x2000x2750mm
-
(Net Intemal Size of Mould Chamber:
-
2040x1020x530mm
-
Color:
-
Customised
Quick Details
-
Core Components:
-
EPS Sandwich Panel Production Line
-
Application:
-
EPS Sandwich Panel Production Line
-
Production Capacity:
-
6-10 Piece/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
guangxing
-
Voltage:
-
380V or 220V alternated
-
Power:
-
7kw 11kw 15kw
-
Dimension(L*W*H):
-
2000x1000x500mm
-
Weight:
-
3000 kg
-
Features:
-
Automatic
-
Product name:
-
EPS Machine
-
EPS Block Size:
-
2000x1000x500mm
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Insulation Wall
-
Density:
-
4.5-30Kg/m3
-
ProductionEfciency(Standard Condition):
-
Density:4 -8kg/m3 ,cycle time : 2-4 Min/cycle
-
Steam Consumption:
-
1tons block steam consumption around 2-4 Tons steam
-
Max.Extemal Dimension:
-
3600x2000x2750mm
-
(Net Intemal Size of Mould Chamber:
-
2040x1020x530mm
-
Color:
-
Customised
EPS Polystyrene Concrete Block Molding Machine EPS Block Production Line With Vacuum
|
ltem
|
PSB-200
|
PSB-400
|
PSB-600
|
PSB-800
|
|||
|
Net Intemal Size of Mould Chamber
|
2040x1020x530mm
|
4080x1240x630mm
|
6120x1240x630mm
|
8120x1240x630mm
|
|||
|
Density
|
4.5-30Kg/m³
|
4.5-30Kg/m³
|
4.5-30Kg/m³
|
4.5-30Kg/mm³
|
|||
|
ProductionEfciency(Standard Condition）
|
Density:4 -8kg/m3 ,cycle time : 2-4 Min/cycle
Density: 8-12kg/m3 , cycle time : 4-6 MMin/cycle
Density:12-18kg/m3 ,cycle time :6-10 Min/cycle
Density:18-30kg/m3,cycle time : 8-15 Min/cycle
|
|
|
|
|||
|
Steam Consumption
|
1tons block steam consumption around 2-4 Tons steam
|
|
|
|
|||
|
Compressed Air Inlet Diamete
|
DN651~1.5m3/cycle0.6Mpa
|
DN651.8~2m3/cycle0.6Mpa
|
DN652~2.3m3/cycle0.6Mpa
|
DN652.2-2.5m3/cycle0.6Mpa
|
|||
|
Power Supply
|
380v
|
380v
|
380v
|
380v
|
|||
|
Power
|
7kw
|
11kw
|
15kw
|
15kw
|
|||
|
Max.Extemal Dimension
|
3600x2000x2750mm
|
6500x2150x2950mm
|
7500x2150x2950mm
|
9500x2150x2950mm
|
|||
|
Installed Weight
|
3t
|
7t
|
10t
|
12t
|
|||
Specification
EPS block with less steam,fast forming,low moisture content, guaranteeing products inside and outside the same.
EPS Shape Molding Machine is mainly used to produce EPS foam packaging box, ICF block, block concrete insert, floor hollow block, hourdis, lost foam casting, decorative cornice , ceiling board, column, helmet, etc.
The machine can cut EPS block into different sizes of EPS panel. EPS Panels are widely used for external wall insulation, EPS Sandwich panel, Construction building insulation, etc.
We can make an exclusive customizing according to your request！！！
Details Images
Can be produced including the sandwich panel with thickness of 40-300mm and width of 950-1200mmand corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.
Recommend Products
Factory
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO 9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Advanced machinery and equipment
Our team
package
FAQ
Q: Where is the factory located
?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
