Quick Details
-
Voltage:
-
415V
-
Disc Dia.:
-
20inch
-
Place of Origin:
-
China
-
Brand Name:
-
COLO
-
Model Number:
-
COLO-PT1000
-
Warranty:
-
1year
-
Usage:
-
Wet Painting
-
Item Name:
-
Water Curtain Spray Booth
-
Filteration:
-
Water Curtain
-
Material:
-
Stainless Steel
-
Fan:
-
1 set
Quick Details
-
Power:
-
0.75kw
-
External Size:
-
800x1000x2100mm
-
Internal Size:
-
800x1000mm
-
Voltage:
-
415V
-
Disc Dia.:
-
20inch
-
Place of Origin:
-
China
-
Brand Name:
-
COLO
-
Model Number:
-
COLO-PT1000
-
Warranty:
-
1year
-
Usage:
-
Wet Painting
-
Item Name:
-
Water Curtain Spray Booth
-
Filteration:
-
Water Curtain
-
Material:
-
Stainless Steel
-
Fan:
-
1 set
Product Description

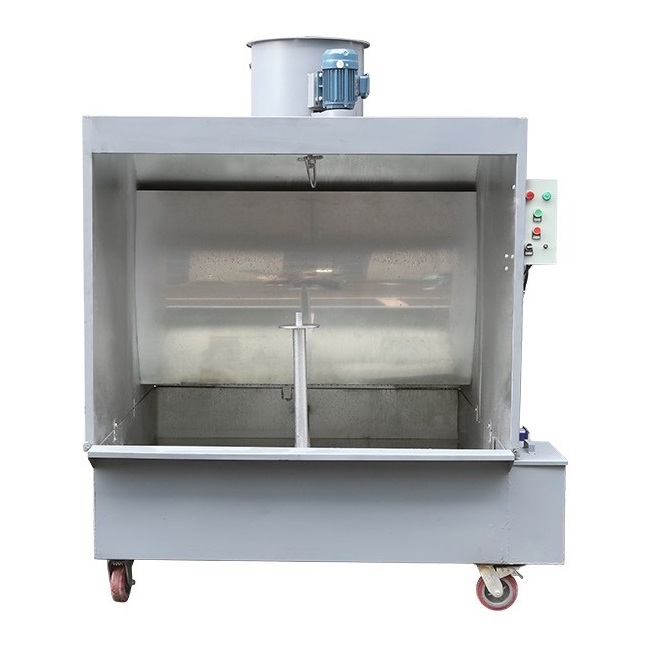

Water Wash Paint Spray Booth
COLO water curtain spray booth is the preferred solution in the liquid painting process which requires separation and filtration from airflow, keeping your staff safe. Paint overspray is removed through moving water curtain, creating a clean and healthy working environment.
How water curtain spray booth works?
During painting process, oversprayed paint mist is arrested by water curtain or directly dropped to the washing area, which ensure all overspray paints from the air are put into the water and then collected into a tank. The tank finally becomes filled with paint sludge that needs to be cleaned.
COLO Water Wash Spray Paint Booth Features
Comparng with dry filters that load with paint, water wash spray booth supports for large volume paint application or continuous production rates, it reduce downtime which means no need to change filtration like dry filter booth. Moreover, water curtain paint booth handles significantly more overspray.
Water Wash Spray Paint Booth Configurations
1. Full width stainless steel water curtain panel and body, ensures rust resistence and long userful life.
2. Built with centrifugal axial flow fan with low noise, provides sufficient airflow.
3. Self-suction water pump includes a filter screen for protection.
4. Energy-saving anti-explosion light at both canopy roof for clear painting jobs.
Control Panel
Axial Flow Fan
Water Pump
Specification
|
Model
|
COLO-PT1500
|
|
Water Curtain Panel Width
|
1500mm
|
|
Fan Airflow
|
8000m^2/h
|
|
Motor Power
|
0.75kwx1
|
|
Water Pump
|
0.55kw x1
|
|
Overall Dimension
|
1.7m x 1.8x2.3m
|
|
Weight
|
500kgs
|
We have different sizes of water curtain spray booth, any demands pls contact us we will quote for you !
