Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SG08RP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Reverse poe switch
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Material:
-
Iron RJ45 port
-
Interface:
-
7GE+1GE
-
Data Rate:
-
10/100/1000M
-
Power supply:
-
12VDC and 5VDC
-
Service:
-
OEM.ODM
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
14
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SG08RP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Reverse poe switch
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Material:
-
Iron RJ45 port
-
Interface:
-
7GE+1GE
-
Data Rate:
-
10/100/1000M
-
Power supply:
-
12VDC and 5VDC
-
Service:
-
OEM.ODM
Product Description

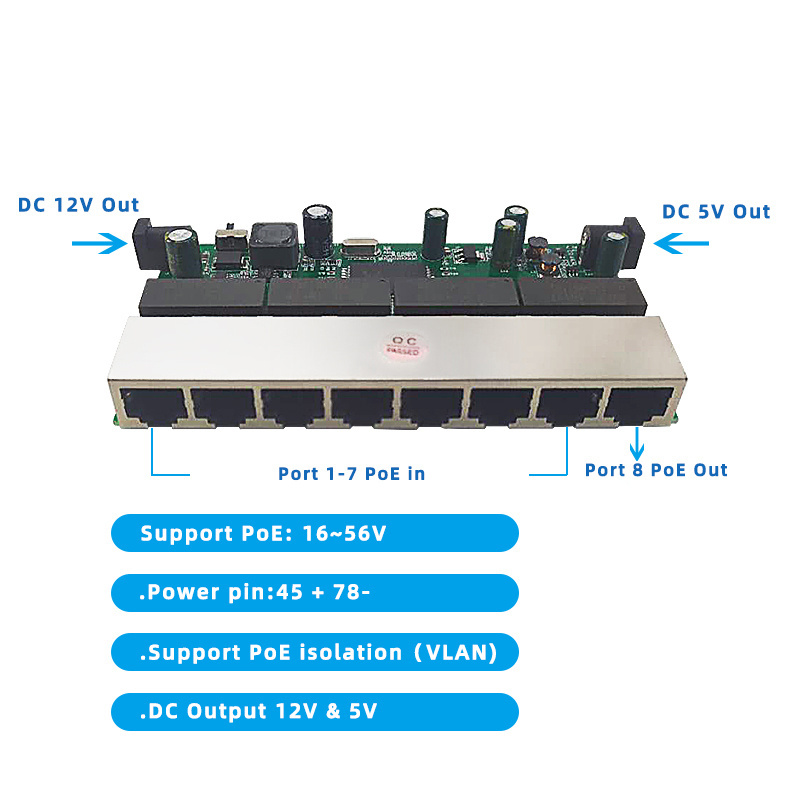

Wanglink Realtek Chipset Reverse POE Switch PCB board 8 Port 10/100/1000M Ethernet Reverse RPOE Switch Support Vlan
RPOE switch has intelligent device Power management features solving a major problem of powering the device for internet service
provider. This switch can be powered using remote power from customer using specially designed POE injector or any standard POE
injector(24v DC,0.75amp).This eliminates the needs of arranging power at building top (ups not require/No need to pay more money
to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer
Products Show
|
Product Name
|
8 Reverse Switch PCB board 24V/48V 8 Port 10/100/1000M Ethernet Reverse POE Switch Plug and Play Support Vlan
|
|
Product Model
|
WOR-SYGP-08P
|
|
100M Rj45 in
|
7
|
|
100M Rj45 out
|
1
|
|
Exchange Mechanism
|
Store-and-forward
|
|
Bandwidth
|
1.6G
|
|
MAC
|
1K
|
|
Functional
|
Support 1~7 Reverse POE In(12+ 36-/45+ 78-)
Support 8 POE out(45+ 78-) DC port can be customized 5V/12V output can switch Inhibition network storm, anti ARP virus attack, anti DHCP conflict |
|
Environmental
|
Working Temperature: -10℃～55℃
Storage temperature: -40℃～70℃ Working Humidity ：10%～90% RH non-condensing Storage Humidity：5%～90% RH non-condensing |
|
POE Input
|
1~8 Reverse POE Input, Customizable POE out
12+ 36- 12~57V 45+ 78- 12~57V |
|
System mode
|
Standard sharing / vlan isolation
|
|
Standards Protocols
|
IEEE 802.3
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x |
|
Speed
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
|
Network Media
|
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) |
