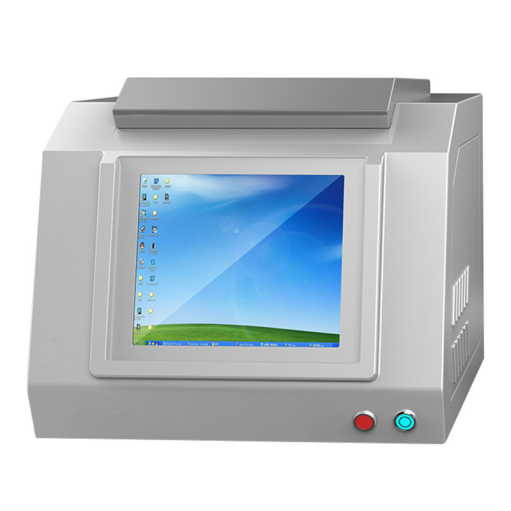

EDS3500 XRF GOLD TESTING MACHINE
EDS3500 XRF GOLD TESTING MACHINE
EDS3500 XRF GOLD TESTING MACHINE
EDS3500 XRF GOLD TESTING MACHINE

EDS3500 XRF GOLD TESTING MACHINE

FOB Reference Price: Get Latest Price
≥1 Sets
US $8500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Accuracy:
RSD≤0.1%
Sample form:
Solid,powder,liquid
Tube Voltage:
5KV-50KV
Sample chamber size:
380*380*60(mm)
Test time:
10sec ~ 60sec
Measuring element:
Precious metal Au, Ag, Pt, Pd, Ru, Rh, Os, Ir, etc.
Condition:
100% Brand new

Quick Details

Place of Origin:
CHINA
Jewelry Tools & Equipments Type:
Testers & Measurements
Analysis range:
1ppm to 99.99%
Accuracy:
RSD≤0.1%
Sample form:
Solid,powder,liquid
Tube Voltage:
5KV-50KV
Sample chamber size:
380*380*60(mm)
Test time:
10sec ~ 60sec
Measuring element:
Precious metal Au, Ag, Pt, Pd, Ru, Rh, Os, Ir, etc.
Condition:
100% Brand new
Product Description

1, the built-in computer integrated model, no external computer, touch screen operation, super smooth experience.


2 the three core components of the instrument are imported, which determines that the instrument can accurately distinguish between Qianjinjin (99.9%) and Wanjinjin (99.99%).


3 China's first, shoulder-to-shoulder European DING-class spectrometer's "one-button test" mode, regardless of any unknown metal material, the operator does not need to choose a test template, software intelligent match ZUI good calculation method, fast, accurate, non-destructive for unknown metals Qualitative and quantitative analysis.


4, the long two-year free warranty period, confidence comes from the pure European spectrometer production technology.


5. Innovative features that help identify gold-plated samples.


6, the user can see the test position of the sample through the camera and the cabin interior lighting system, and enhance the user's confidence in the test.


7, equipped with a variety of optical collimators, breakthrough solutions to solve the problem of extremely fine metal samples such as gold wire, gold wire.


8, test data can be downloaded and uploaded to the network, the test results are easy to view and share.


9, the temperature drift rate of all parts of the instrument is controlled within one part per million, which guarantees the super stability and ultra-high precision of the instrument. The test result shows 4 digits after the decimal point, surpassing all domestic spectral precious metal analyzers.


10, ultra high resolution, ultra clear camera, ultra-easy operation, ultra-fast detection speed, superhuman interface.

Technical parameter:

Model EDS3500
Analysis range 1ppm to 99.99%
Accuracy RSD≤0.1%
Sample form Solid,powder,liquid
Tube Voltage

5KV-50KV

High voltage power supply 0-50kv spellman(USA)
Camera HD camera
Filters Selectable customized switches
Detector type Proportionl counter tube
Multichannel analyzer KEY-DMCP
Sample chamber size 380*380*60(mm)
Test time 10sec-60sec
Measuring element

P recious metal Au, Ag, Pt, Pd, Ru, Rh, Os, Ir, etc.

Basic metals W, Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc. (Na ~ U)

Analysis software KEY-FP qualitative and quantitative analysis software
External dimensions 380*372*362mm
Weight 32kg
Detailed Images

Packaging & Shipping

We have professional packing workers to pack your products!

Packing:

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Shipping:

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

Our Services

Don't worry ,we are beside of you.

1.Life-long technical assistance and teaching video.

2.One year warranty including free maintemance and changing instrument components.

3.Future testing solutions consultation and laboratory free test, you can send samples to us, and we can test it for you.

4.Special offers in order to maintain our competitive edge, we are constantly running special offers on our promotion test machine, consumer goods, and design services. Contact our sales team to see how we can

help you save money more.

Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
