Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ12/16/19/22
-
Contact material:
-
Silver Alloy
-
Operation type:
-
Momentary
-
Function:
-
Push On
-
Connection:
-

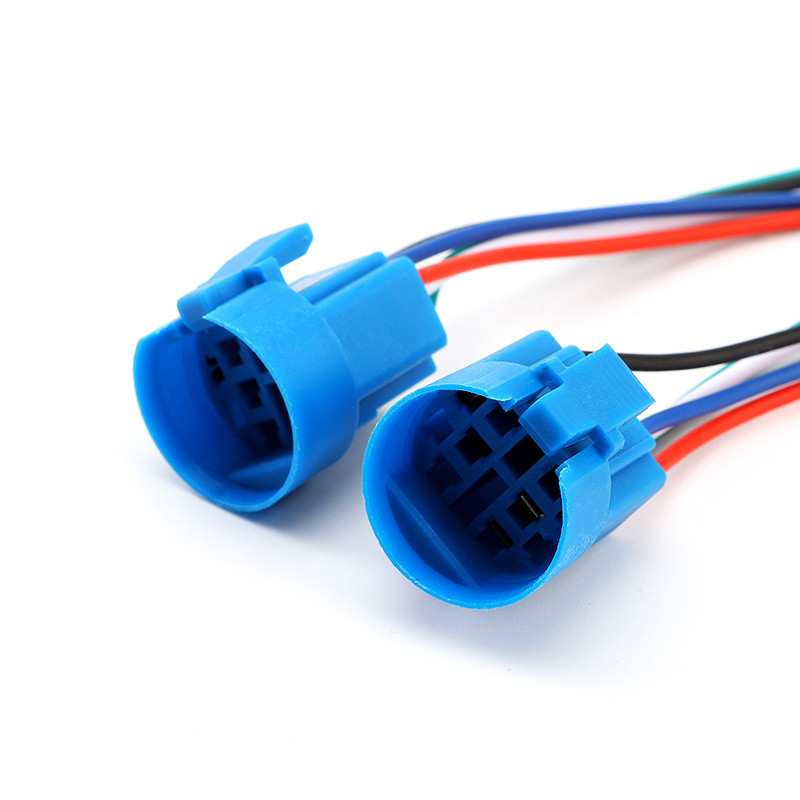

50cm motherboard wire
-
Switch specification:
-
36V DC /2A
-
Operating temperature:
-
-20 ~ +55 degree
-
Protection degree:
-
IP65, IK08
-
Torque:
-
5~14Nm
-
Operating pressure:
-
About 5N
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65/IP67/IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ12/16/19/22
-
Contact material:
-
Silver Alloy
-
Operation type:
-
Momentary
-
Function:
-
Push On
-
Connection:
-
50cm motherboard wire
-
Switch specification:
-
36V DC /2A
-
Operating temperature:
-
-20 ~ +55 degree
-
Protection degree:
-
IP65, IK08
-
Torque:
-
5~14Nm
-
Operating pressure:
-
About 5N
-
Certification:
-
CCC
Product Description
Specification
|
Model
|
|
JQ12K
|
|
|
Wire
|
|
4*50cm
|
|
|
Switch type
|
|
X(two terminal breakpoints slow moving contact
|
|
|
Switch specification
|
|
36V DC/2A
|
|
|
Contact resistance
|
|
Less than 50m ohm
|
|
|
Insulation resistance
|
|
More than 1000M ohm
|
|
|
Dielectric strength
|
|
2000V AC
|
|
|
Operating temperature
|
|
-20 ~ +55 degree
|
|
|
Mechanical life
|
|
More than 1000000 times
|
|
|
Electrical life
|
|
More than 200000 times
|
|
|
Panel thickness
|
|
1~5mm
|
|
|
Torque
|
|
5~14Nm
|
|
|
Operating pressure
|
|
About 5N
|
|
|
Protection degree
|
|
IP65, IK08
|
|
|
Material
|
Contact
|
Silver alloy
|
|
|
|
Button
|
Nickel plated brass/Stainless steel
|
|
|
|
Enclosure
|
Nickel plated brass/Stainless steel
|
|
|
|
Base
|
PA66
|
|
|
LED
|
LED type
|
Ring illuminated LED
|
|
|
|
Rated voltage
|
5V DC
|
|
|
|
Other voltage for choice
|
6V/12V/24V/110V/220V
|
|
|
|
(if need please tell)
|
|
|
|
|
LED color
|
Blue
|
|
|
|
Other color for choice
|
Red/green
|
|
|
|
(if need please tell)
|
|
|
|
|
LED life
|
40000 hours
|
|
