Quick Details
-
Product name:
-

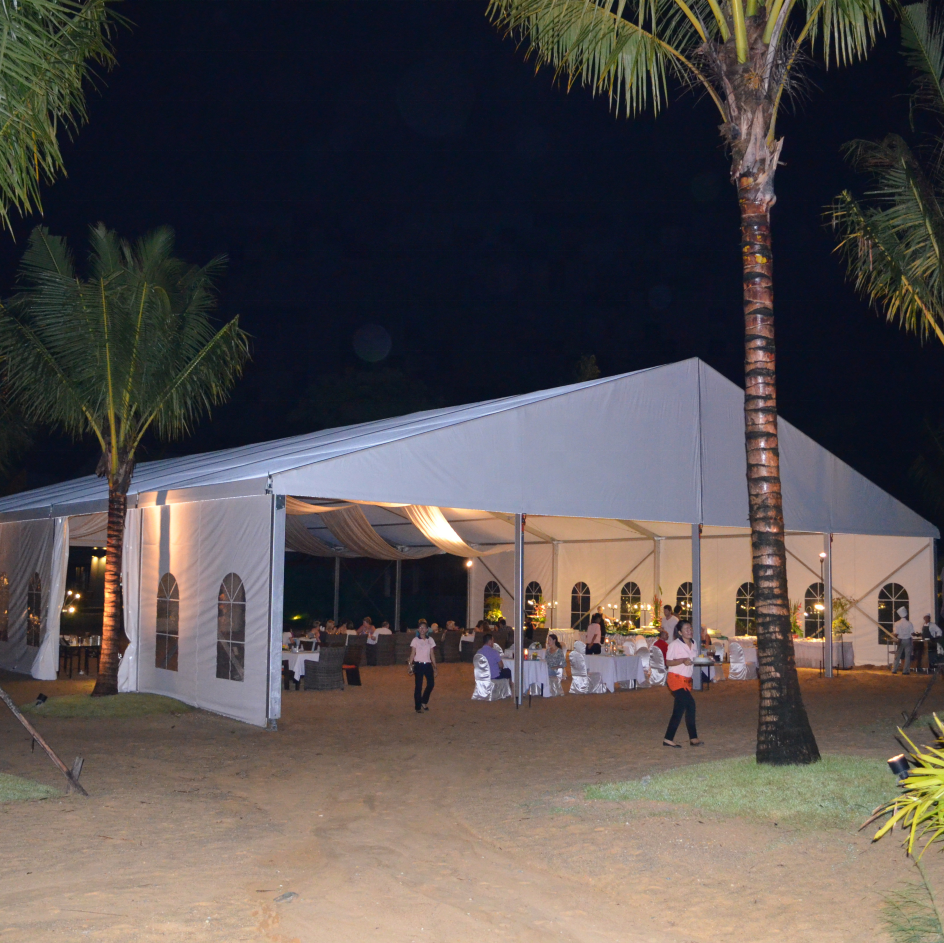

clear wedding outdoor party marquees and tents for events
-
Ground Situation:
-
Steel Anchor,expansion screws,loading plate
-
Span Width:
-
3m/4m/5m/6m/8m/9m/10m/12m/15m/18m/20m/25m/30m/35m/40m/45m/50m
-
Ridge Height:
-
3.2m/3.4m/3.6m/3.7m/4.m/4.3m/4.4m/4.8m/6.4m/7.2m/8m/8.9m
-
Frame material:
-
High reinforce aluminum
-
Side Height:
-
2.6m/4m
-
Bay Distance:
-
3m/5m
-
Roof Pitch:
-
20°/18°
-
Maximum Length:
-
No limit
-
Wind Resistance:
-
80km-100km/h
Quick Details
-
Brand Name:
-
Baikal Tent
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BKLC-LS20tents for events
-
Product name:
-
clear wedding outdoor party marquees and tents for events
-
Ground Situation:
-
Steel Anchor,expansion screws,loading plate
-
Span Width:
-
3m/4m/5m/6m/8m/9m/10m/12m/15m/18m/20m/25m/30m/35m/40m/45m/50m
-
Ridge Height:
-
3.2m/3.4m/3.6m/3.7m/4.m/4.3m/4.4m/4.8m/6.4m/7.2m/8m/8.9m
-
Frame material:
-
High reinforce aluminum
-
Side Height:
-
2.6m/4m
-
Bay Distance:
-
3m/5m
-
Roof Pitch:
-
20°/18°
-
Maximum Length:
-
No limit
-
Wind Resistance:
-
80km-100km/h
clear wedding outdoor party marquees and tents for events
|
Models |
BKLC-LS20tents for events |
|
Span Width |
3m/4m/5m/6m/8m/9m/10m/12m |
|
Ridge Height |
3.2m/3.4m/3.6m/3.7m/4.m/4.3m/4.4m/4.8m |
|
Longest Component |
2.9m/3.9m/4.9m/3.6m/4.3m/4.8m/5.3m/6.3m |
|
Side Height |
2. 6 m |
|
Roof Pitch |
20° |
|
Bay Distance |
3m/5m |
|
Maximum Length |
No limit |
|
Main Profile |
84X48X3mm/100X48X3mm/122X68X3mm aluminum alloy |
|
Frame Material |
High reinforced aluminum, anti-rust surface, GB/T 6061- T6 standard,Surfaceoxidation; Film thickness>10pm |
|
Fabric Material
|
850 g/m2 and 650 g/m2 double PVC-coated polyester, flame retardant, UV resistance, waterproof, comply with DIN 4102 B1, M2 (German standard), Applicable temperature range: - B0°C to +70 °C |
|
Connection Part |
All steel parts are galvanized steel, hot-dipped and not easily rusted , and all come with rust prevention process. |
|
Maximum Wind Limi t |
80 ~ 100km/h |
|
Eave Connection |
Direct insert style |
|
Reinforce Method |
Portal beam |
