Quick Details
-
Ethernet Port:
-
5-port 10/100Mbps
-
Power Input:
-
DC 5v--12v 1000ma
-
Operating Temperature/Humidity:
-
0℃~40℃/10%~90% non-condensing
-
Chipset:
-
IC+ 175
-
Product size (L*W*H):
-
96mm*69mm*24mm
-
Packing size (L*W*H):
-
165mm*130mm*55mm
-
N.W/G.W(kg):
-
0.18
-
Warranty:
-
2 Year
-
Certification:
-
RoHs/CE/ISO9001, RoHS/CE/FCC
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Place of Origin:
-
China
-
Ethernet Port:
-
5-port 10/100Mbps
-
Power Input:
-
DC 5v--12v 1000ma
-
Operating Temperature/Humidity:
-
0℃~40℃/10%~90% non-condensing
-
Chipset:
-
IC+ 175
-
Product size (L*W*H):
-
96mm*69mm*24mm
-
Packing size (L*W*H):
-
165mm*130mm*55mm
-
N.W/G.W(kg):
-
0.18
-
Warranty:
-
2 Year
-
Certification:
-
RoHs/CE/ISO9001, RoHS/CE/FCC

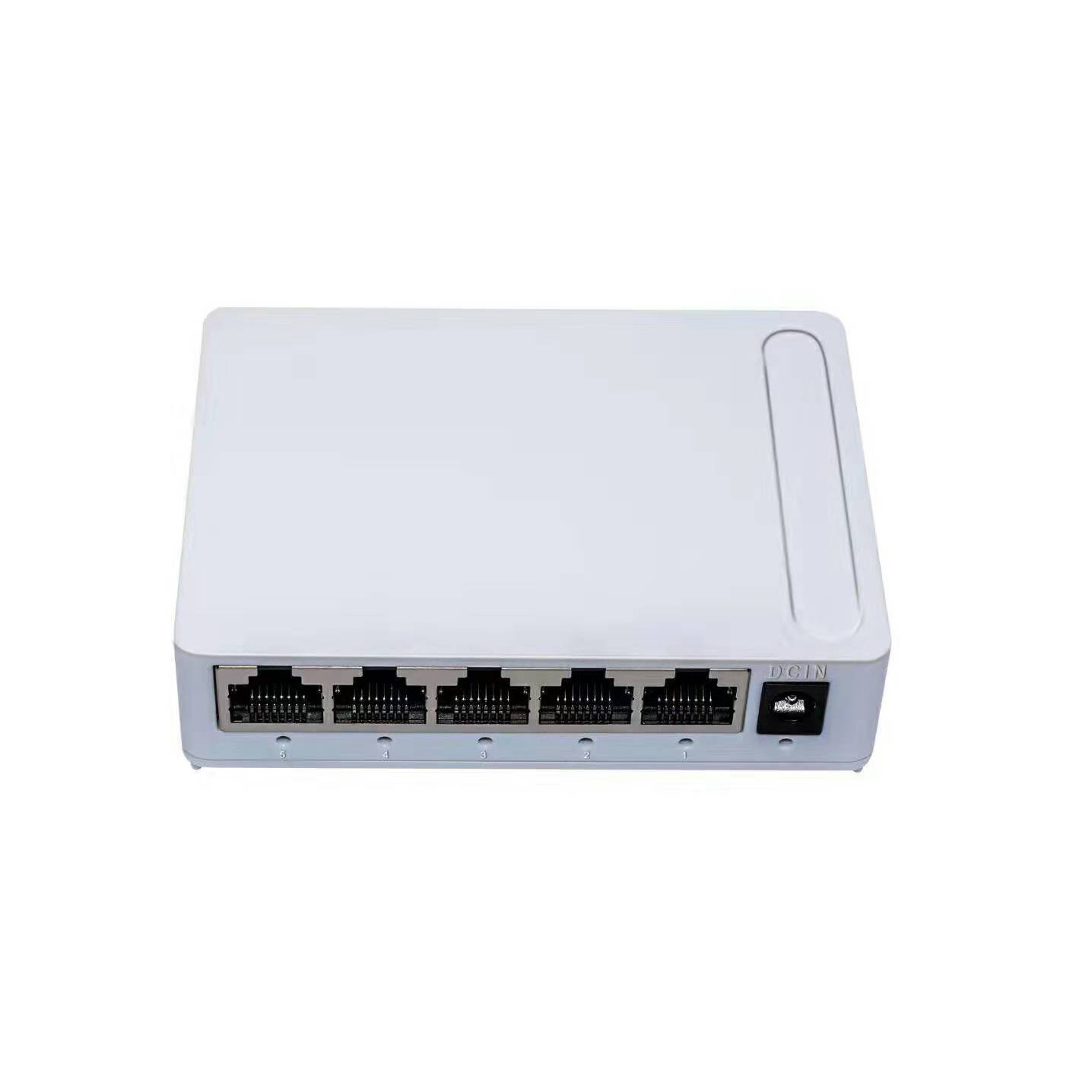

5 Port Fast Ethernet Switch 10/100Mbps Network Switch With Chipset IC+ 175
Description:
JK1005EX is a 5-port 10/100Mbps Ethernet U nmanaged Switch. It provides high performance Ethernet of tabletop level for you. JK1005EX provides 5 x 10/100Mbps Auto-Negotiation RJ45 ports. JK1005EX is a design of high integration level, exquisite, portable, easy to operate, which is suitable for the small and medium office and home network. The Switch adopts store-and-forward technology, combining the dynamic memory allocation, which make certains to effectively distribute the data to each port, when the switch is transmitting and receiving data, t he flow control guarantee the data to avoid loss of the data packet. The LED shows the situation of power and network.
Features:
Ø Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Ø Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Ø 10/100M Switching Capacity
Ø 9K Jumbo frame improves performance of large data transfers
Ø Auto-MDI/MDIX eliminates the need for crossover cables
Ø Supports MAC address auto-learning and auto-aging
Ø Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Ø Fanless design ensures quiet operation
Ø Plug and Play design simplifies installation
Ø Power In : DC 5v--12v 1000ma
Specification:
|
Model |
JK1005EX |
|
|
Chipset |
IC+ 175 |
|
|
IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.3a b |
||
|
10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-T: UTP category 5 ,5e cable (maximum 100m) |
||
|
Number of Ports |
5 x 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|
|
LED indicators |
10/100 M |
Link/Act |
|
Other |
Power |
|
|
Transfer Method |
Store-and-Forward |
|
|
10/100M |
||
|
MAC Address Learning |
Automatically learning |
|
|
Dimensions ( L × W × H) |
96*69*24mm |
|
|
Environment |
Operating Temperature: 0 ℃~ 40 ℃ Storage Temperature: - 40℃~ 70 ℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
|
