Quick Details
-
Model Number:
-
4HV210-08
-
Brand Name:
-
ONNT
-
Model:
-
4HV210-08
-
Port size:
-
1/4''
-
Valve type:
-
4 port 2 position
-
Fluid:
-
Air
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Pneumatic Hand Rotary Valve
Quick Details
-
Port Size:
-
1/4''
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4HV210-08
-
Brand Name:
-
ONNT
-
Model:
-
4HV210-08
-
Port size:
-
1/4''
-
Valve type:
-
4 port 2 position
-
Fluid:
-
Air
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Pneumatic Hand Rotary Valve

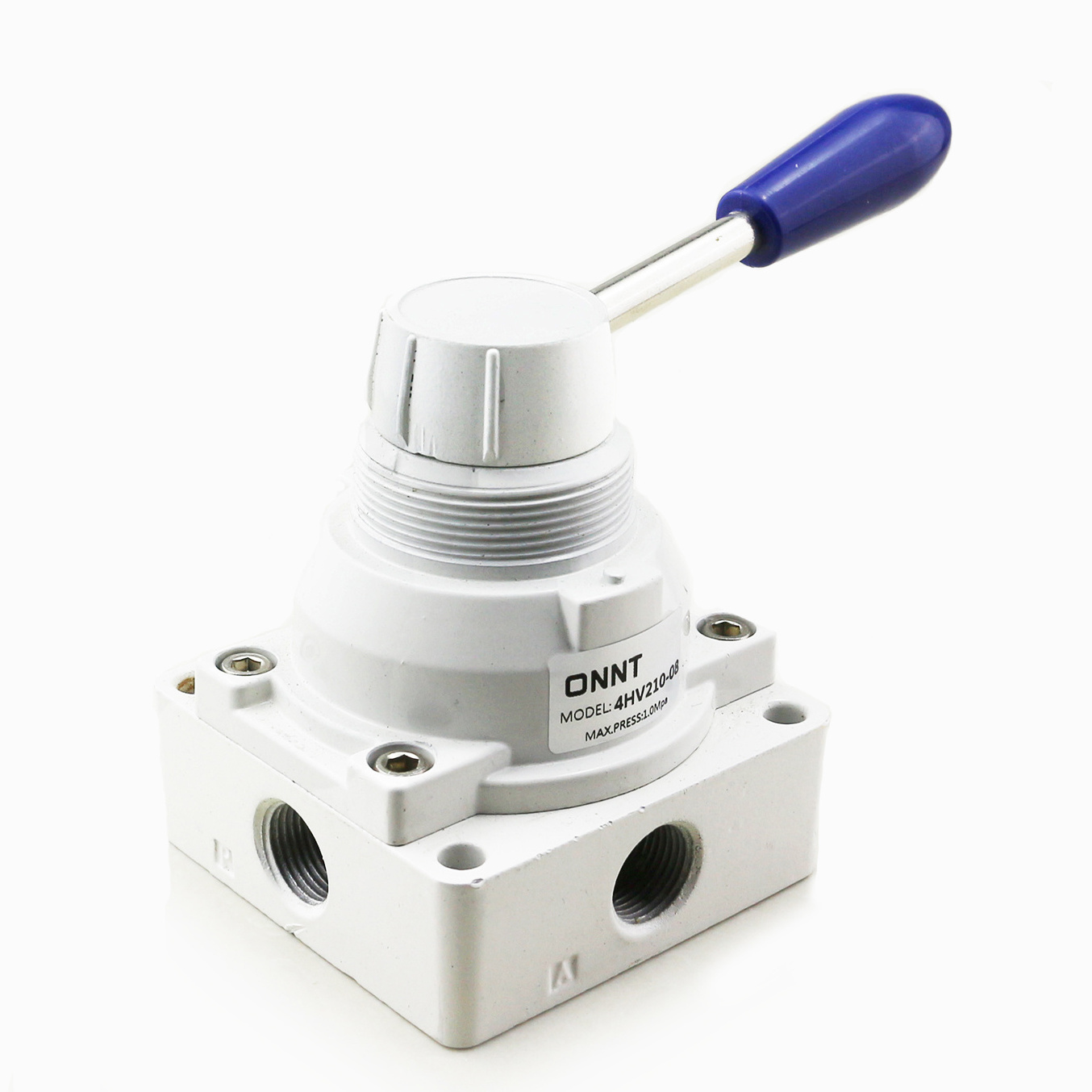

44/2 Way Airtac Type 4 Way 2 Position 1/4'' Rotary Control Valve 4HV210-08 Hand Control Pneumatic Air Valve
Ordering Code
4HV 2 10 - 08
Series Code Valve type Port size
4V: Hand lever Valve 2: 200 series 10: 4 port 2 position 06:1/8''
3: 300 Series 30: 4 port 3 position 08:1/4''
4: 4 Series 10"3/8''
15:1/2''
20:3/4''
Inner structure and material of major parts:
| NO | Item | NO | Item |
| 1 | Body | 12 | Pin one |
| 2 | Seal base | 13 | Front cover |
| 3 | Valve cover | 14 | Spring |
| 4 | Valve plug | 15 | Handle |
| 5 | Column pin | 16 | Pin two |
| 6 | Shaft | 17 | Shaft O-ring |
| 7 | Washer | 18 | Spring |
| 8 | Fixing plate | 19 | Iron plate |
| 9 | Lock pin | 20 | Fixing screw |
| 10 | Valve cap | 21 | Body O-ring |
| 11 | Spring pin | 22 | Seal base O-ring |
Specifications
| Model |
4HV210-06 4HV230-06 |
4HV210-08 4HV230-08 |
4HV310-10 4HV330-10 |
4HV410-15 4HV430-15 |
4HV410-20 4HV430-20 |
| Fluid | Air( to be filtered bu 40 µ m filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' |
| Orifice size |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
| Valve type | 4/2 Way 4/3 Way | ||||
| pressure range | 0~1.0MPa(21~114psi) | ||||
| Proof pressure | 1.5MPa(215psi) | ||||
| Temperature °C | -20~70℃ | ||||
| Material of body | Aluminum Alloy | ||||
| Lubrication | Not required | ||||
