Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-586Pro
-
Warranty:
-
18 Months
-
Product name:
-

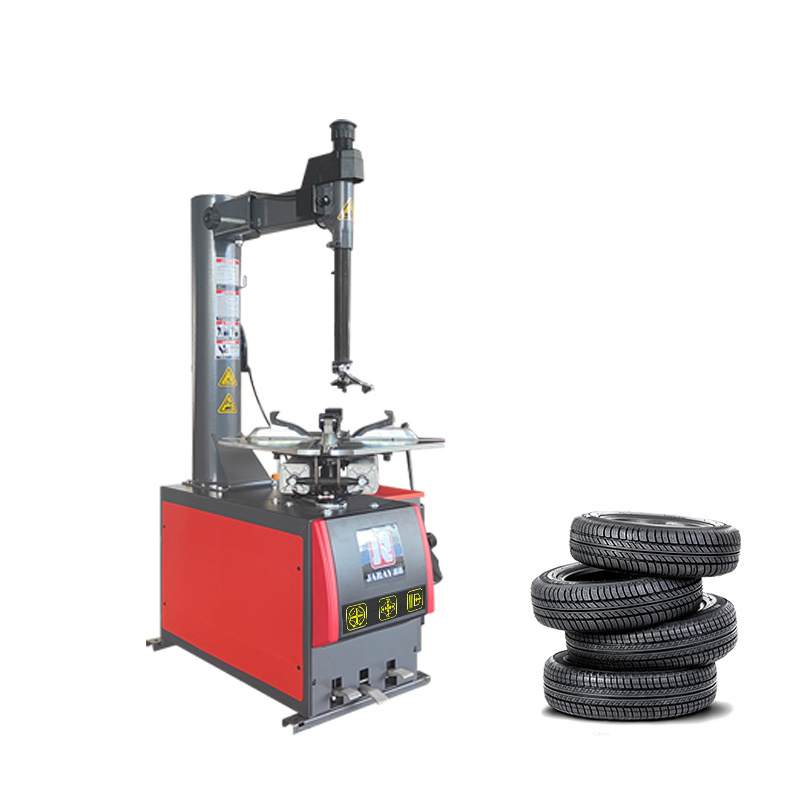

Tire Changer Machine
-
Color:
-
Red Gray
-
Certification:
-
CE
-
Outside clamping:
-
10"-22"
-
Inside clamping:
-
12''-24''
-
Packing Size:
-
1080mm*900mm*960mm
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-10
-
Power Supply:
-
110/220/380/415
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-586Pro
-
Warranty:
-
18 Months
-
Product name:
-
Tire Changer Machine
-
Color:
-
Red Gray
-
Certification:
-
CE
-
Outside clamping:
-
10"-22"
-
Inside clamping:
-
12''-24''
-
Packing Size:
-
1080mm*900mm*960mm
|
Product name
|
tyre changer
|
Product model
|
F-586Pro
|
|
Outer Clamp
|
10-20
|
Inter Clamp
|
12-24
|
|
Max.Wheel Width
|
450mm
|
Max.Wheel Diameter
|
1040mm
|
|
Motor voltage
|
220v/380v
|
Motor power
|
1.1kw/0.75kw
|
|
Working noise
|
<70db
|
Operating air pressure
|
8-10bar
|
|
Net weight
|
210kg
|
Gross weight
|
240kg
|
|
Equipment size
|
1010mm×900mm×1940mm
|
Packing dimensions
|
1110mm×990mm×920mm
|
Professional tire changer disassembly head, carbon steel material, special technology. Ensure the strength of the disassembly head.
The column of the box body is connected with 6 positioning of the box body, and the column support plate adopts a circular opening to better fit with the circular column and enhance the stress contact area.
The back end of the woking shovel support is lengthened, so that the force angle of the shovel is better and the storage box is super large.
The all aluminum foat pedal is rust proof and durable, and the five-way valve is stressed in the horizontal direction to increase the service life of the valve body. All metal joint to ensure air tightness.
Fine processing work plate and anti scraping blade design ensure smooth movement of claw uring operation,
Carbon structural steel claw, wear-resistant and rust proof. The angle is reasonable and suitable for the bending degree of the hub. Whether the inner support or the outer clamp, the hub will be firmly fixed.
The cylinder adopts a special cylinder to ensure the roundness of the cylinder. Thicken the pull rod of phosphating cylinder to increase the tensile force.
The triangular iron is strengthened to replace the base plate, which has stronger supporting orce and stable structure. The metal joint of the whole machine ensures air tightness.
Random Accessories
Packing box style
