Fabric cutting machine auto fabric cutter price

Fabric cutting machine auto fabric cutter price

FOB Reference Price: Get Latest Price

≥1 Sets

US $52000

≥2 Sets

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: fabric cutting

Place of Origin:: Hubei, China

Brand Name:: TIMING

Power:: 18KW max

Dimension(L*W*H):: 5760mmx3100mmx2500mm

Weight:: 3500 KG

Features:: multi ply knife cutter

After-sales Service Provided:: Engineers available to service machinery overseas

features:: automatic knife cutter

applicable industries:: garment automotive furniture toys

applicable materials:: fabric , pvc, pu leather , technical textile

software:: TIMING copyright

supportive format:: PLT DXF ISO CUT GBR and etc

average energy consumption:: 12-17kw

max. cutting thickness:: 7cm(after vacuum absorption)

cutting area:: 2000mm*2500mm

Electrical requirements:: Three phase + Neutral 380V, 50~60Hz

Quick Details

Production Capacity:: 30sets/month

Voltage:: 380V

Marketing Type:: Hot Product 2023

Application:: fabric cutting

Place of Origin:: Hubei, China

Brand Name:: TIMING

Power:: 18KW max

Dimension(L*W*H):: 5760mmx3100mmx2500mm

Weight:: 3500 KG

Features:: multi ply knife cutter

After-sales Service Provided:: Engineers available to service machinery overseas

features:: automatic knife cutter

applicable industries:: garment automotive furniture toys

applicable materials:: fabric , pvc, pu leather , technical textile

software:: TIMING copyright

supportive format:: PLT DXF ISO CUT GBR and etc

average energy consumption:: 12-17kw

max. cutting thickness:: 7cm(after vacuum absorption)

cutting area:: 2000mm*2500mm

Electrical requirements:: Three phase + Neutral 380V, 50~60Hz

Product Overview

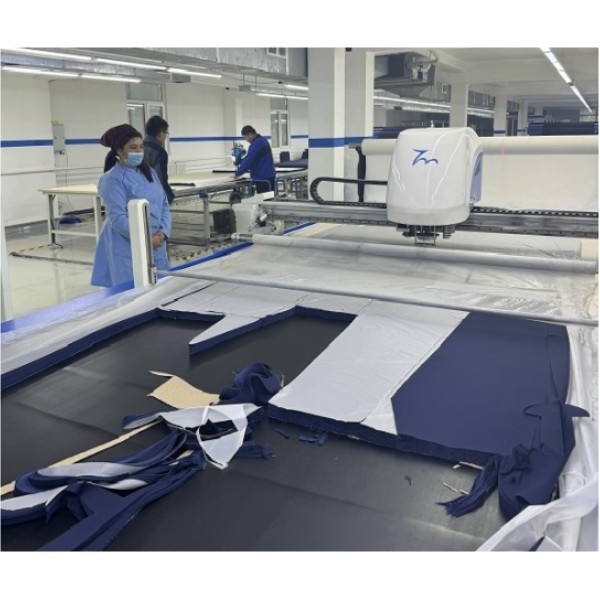

Automatic fabric cutting machine

This cutting machine is automatic and used for flexible fabric cutting before sewing. The technically possible depth of cutting of the layer depends on the thickness and properties of the fabrics. It can help to improve the efficiency of production greatly.

FEATURES AT A GLANCE

OWN PATENT CUTTING SOFTWARE

HIGH EFFICIENCY

HIGH ACCURACY

INTELLIGENT CUTTING DESIGN

USER FRIENDLY

BETTER SAFTY

Left elevation

Right elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power consumption	Max.18.5KW
2	Electricity	Three phase 380V
3	Speed of blade working	Max. 4000rpm/min
4	Cutting speed	0-60000mm/min
5	Cutting accuracy	≦±1mm
6	Compressed air	0.55MPa 160L/min
7	Operating temperature	0-40℃
8	Operating humidity	20%-80%
