Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinlei Laser
-
Dimension(L*W*H):
-
3600*2800*2100mm
-
Weight (KG):
-
2000 KG
-
Product name:
-
3D Manipulator Laser Engraving Machine
-
Laser Wavelength:
-
1064nm
-
Laser Power:
-
60W(Imported modules and chips)
-
Cooling Method:
-
Air-cooled (configured according to conditions)
-
Processing Range:
-
600*600*200mm(X*Y*Z)
-
Minimum Spot Diameter @ 1/e:
-
0.0665mm(Imported CTI motors)
-
Overall Dimensions:
-
3600*2800*2100mm
-
Power Supply:
-
110V60Hz/220V50Hz±5%
-
Product Feature:
-
automatic manipulator
-
After Warranty Service:
-
Online Support Video Technical Support
Quick Details
-
Engraving Area:
-
400mm*600mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
≤10000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinlei Laser
-
Dimension(L*W*H):
-
3600*2800*2100mm
-
Weight (KG):
-
2000 KG
-
Product name:
-
3D Manipulator Laser Engraving Machine
-
Laser Wavelength:
-
1064nm
-
Laser Power:
-
60W(Imported modules and chips)
-
Cooling Method:
-
Air-cooled (configured according to conditions)
-
Processing Range:
-
600*600*200mm(X*Y*Z)
-
Minimum Spot Diameter @ 1/e:
-
0.0665mm(Imported CTI motors)
-
Overall Dimensions:
-
3600*2800*2100mm
-
Power Supply:
-
110V60Hz/220V50Hz±5%
-
Product Feature:
-
automatic manipulator
-
After Warranty Service:
-
Online Support Video Technical Support

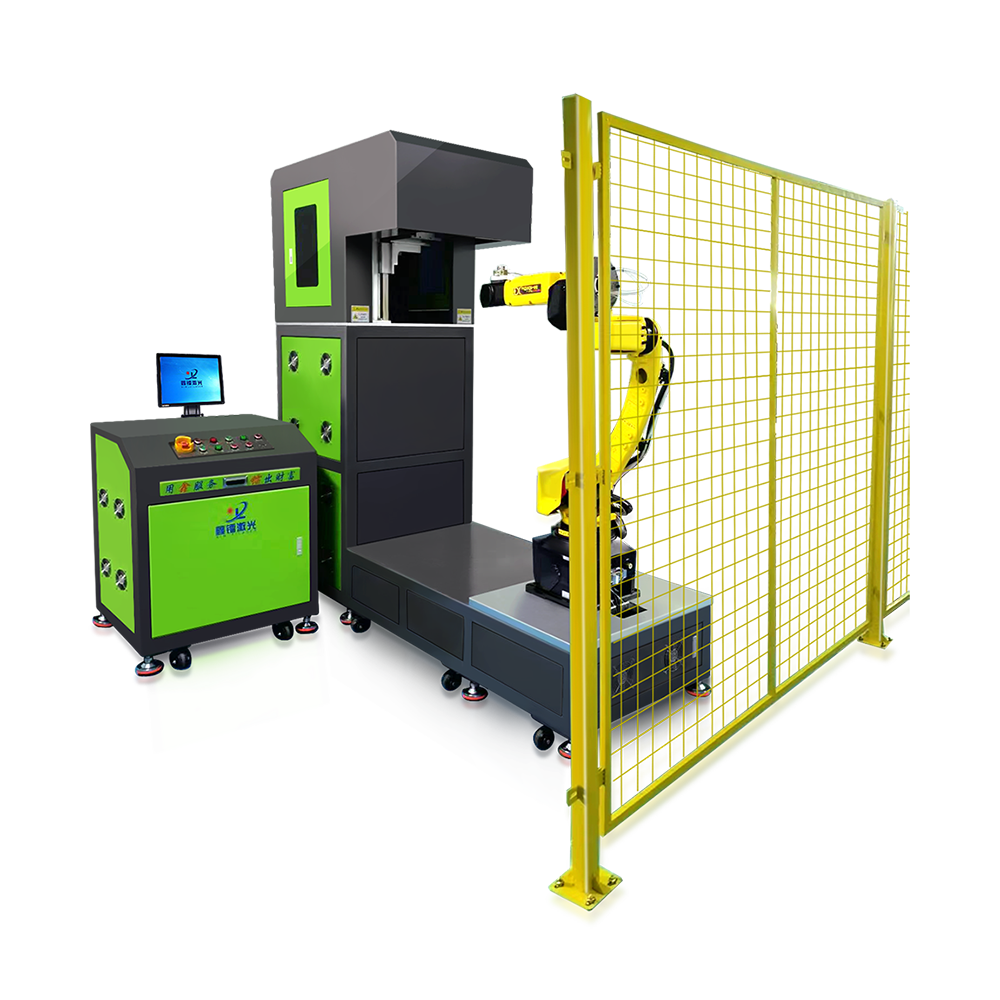

3D Mini Big Format Car Frame Automatic Laser Engraving Machines With Robot Hand For All Materials Metal Stainless Steel
Products Description
|
Product category
|
Red light 3D engraving
|
Purple light 3D engraving
|
|
wave length
|
1064nm
|
355nm
|
|
laser power
|
60W
|
12W
|
|
type of cooling
|
air cooling（general condition ）
|
water cooling（general condition ）
|
|
processing range
|
600*600*200mm(X*Y*Z)
|
600*600*150mm(X*Y*Z)
|
|
min spot diameter@1/e
|
0.0665mm（CTI motor）
|
/
|
|
Z axis
|
automatic adjustment range 500mm
|
manual adjustment range 500mm
|
|
R acis
|
robot -FANUC M-10iD/12
|
robot -FANUC M-10iD/12
|
|
size
|
3600*2800*2100mm
|
3600*2800*2100mm
|
|
power supply
|
220V50Hz±5%
|
110V60Hz/220V50Hz±5%
|
|
air pressure
|
0.4-0.7Mpa
|
0.4-0.7Mpa
|
Application
The
red-light / purple-light 3D laser engraving machine is widely used for the surface engraving of automotive manufacturing components such as car buttons, steering wheels, center consoles, ambient lights, bumpers, grilles, logos, headlights, etc
.
It
is used for creating stripes, patterns, 2D, and 3D depth engravings, as well as large-scale laser marking and etching applications
.
