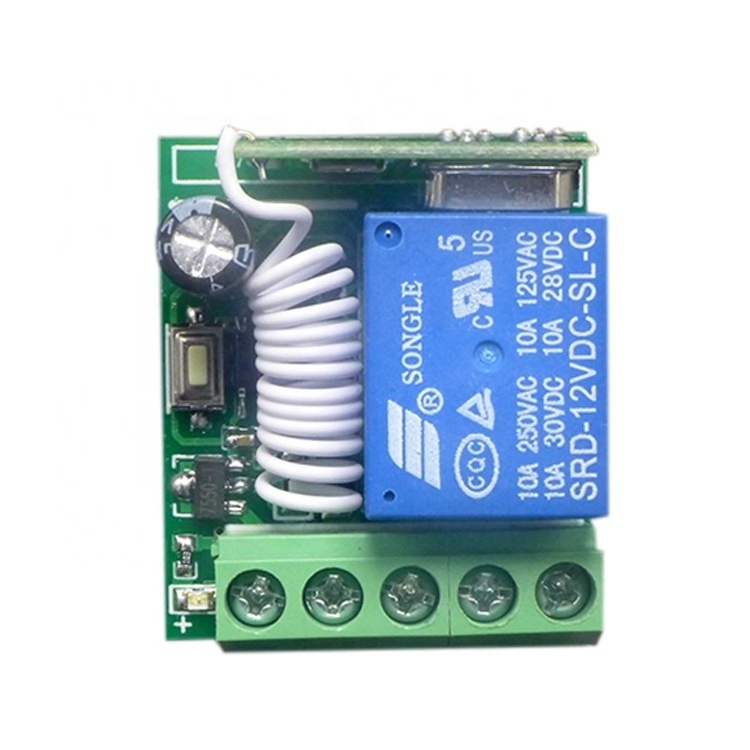

12 volt remote control switch 433mhz dip switch rf remote control

Features:

1. Press the learning code, the indicator light blinks, release your finger, press any button on the remote control, the blinking indicator light blinks twice, indicating that you have successfully learned.
2.Can learn 2272 2262 or 1527 chip using different code wireless 433MHz / 315MHz remote control
3. Delete / Clean: Press the learning button for about 8 seconds, the light goes out, indicating that the information you saved has been successfully deleted.

1. Input voltage: DC10V-14V
2, Standby current: <5MA
3. RF frequency: 315M. 433M is optional.
4, RF working mode: super heterodyne receiving
5, receiving sensitivity: >97dbm
6, remote control distance: open space is greater than 100 meters.
7, decoding mode: MCU software decoding
8, the number of remote control can be stored: 50
9, support remote control type: learning code, fixed code (can be customized rolling code).
10, a variety of working modes: jog, self-lock, interlock, delay off.
11, wiring: fixed wiring posts
12. Switching output: normally open, common, normally closed.
11 board size: 35*30*18mm

Working / output mode:
1. Automatic / non-locking: press one button to work / turn on. Release / finger on the same button to stop / close. A single channel switch requires a push button remote.
2. Self-locking / self-locking: Pressing a button once is working / opening. Press the same button again to stop / close. A single channel switch requires a push button remote.
3. Lock / Lock: Pressing one button is working / opening, pressing the other button to stop / close. A single channel switch requires 2 pushbutton remotes.
4. Delay: press one button of the remote control, the relay works, release the remote control and start timing, the relay will automatically close after 5s, 10s, 15s
