Quick Details
-
LED Qty:
-
red 140 pcs green 140 pcs Dia 5mm Brightness
-
IP rating:
-
IP65
-
Size:
-
300mm
-
Brand:
-
ZGSM
-
feature1:
-
waterproof
-
feature2:
-
Uniform optical output
-
Luminous(cd)::
-
Red>600cd, Yellow>800cd, Green>800cd
-
Visual::
-
±30 degree
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZGSM
-
color:
-
red green
-
LED Qty:
-
red 140 pcs green 140 pcs Dia 5mm Brightness
-
IP rating:
-
IP65
-
Size:
-
300mm
-
Brand:
-
ZGSM
-
feature1:
-
waterproof
-
feature2:
-
Uniform optical output
-
Luminous(cd)::
-
Red>600cd, Yellow>800cd, Green>800cd
-
Visual::
-
±30 degree

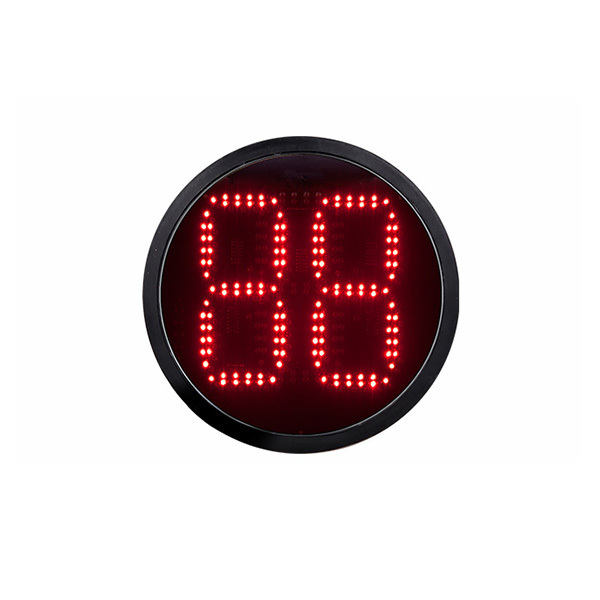

digital timer counter LED traffic light of 300mm
| Model No. | DJS300-3-ZGSM-1-88RG | |||||
| Electrical Specifications | ||||||
| Power | Red: ≤ 5W | Green: ≤ 5W | |||||
| LED Q'ty | Red: 140 pcs | Green: 140 pcs | |||||
| Operating Voltage | 100-240VAC ,50/60Hz | |||||
| Operating Temp. | -40ºC ~ +75ºC | |||||
| Operating Humidity | 10% ~ 90% | |||||
| Photometric Specifications | ||||||
| Apply Diameter | 300 mm (12 inches) | |||||
| Visible Range | 200m (656ft) | |||||
| Wavelength | Red:625±5nm | Green: 500±5nm | |||||
| Intensity | Red: 5000-7000mcd | Green:8000-13000mcd | |||||
| Visual Angle | <30º | |||||
| Mechanical Specifications | ||||||
| IP Rating | IP54 | |||||
| Warranty | 1 Year | |||||
| Housing Material | PC or Aluminum | |||||
| Lens Material | PC Housing: PC | Aluminum Housing: Glass | |||||
| Fixture Dimension | PC: 370 x367 x150 mm | |||||
| Aluminum: 350 x367 x125 mm (14.6 x15.2 x5.9 inches) | ||||||
| Fixture Weight | PC: 5.4 kg (11.9 lbs) | Aluminum: 7.0 kg (15.4 lbs) | |||||
| Standard(s) | GB14887-2011, EN50293:2000 & EN12368:2006 | |||||
| Certificate(s) | CE, RoHS | |||||
| Packing Information | ||||||
| Packing Type | 4unit /ctn. | |||||
| Packing Dimension | 820 x380 x440 mm (32.3 x15.0 x17.3 inches) | |||||
| Gross Weight | PC: 23.4 kg (51.6 lbs) | Aluminum: 30.0 kg (66.1 lbs) | |||||
| Accessories | Visor, Bracket | |||||
