Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Anda Machinery
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Weight:
-
10 KG
-
Name:
-
2021 hot sale 16-630mm pvc pipe extruder machine
-
Temperature control:
-
Omron Brand
-
Main motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Brand
-
Traction speed:
-
0.8-8m/min
-
Output:
-
180kg/h
-
Pipe diameter:
-
20-110mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE ISO
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
156:1
-
Screw Speed (rpm):
-
1500 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Anda Machinery
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Weight:
-
10 KG
-
Name:
-
2021 hot sale 16-630mm pvc pipe extruder machine
-
Temperature control:
-
Omron Brand
-
Main motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Brand
-
Traction speed:
-
0.8-8m/min
-
Output:
-
180kg/h
-
Pipe diameter:
-
20-110mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE ISO
PVC pipe making machine is used to produce UPVC/PVC pipe with diameter from 16 u p to 800mm , which is used for electric conduit, building drainage, sewage pipe, water supply pipe , well casing pipe, agricultural irrigation pipe and so on.

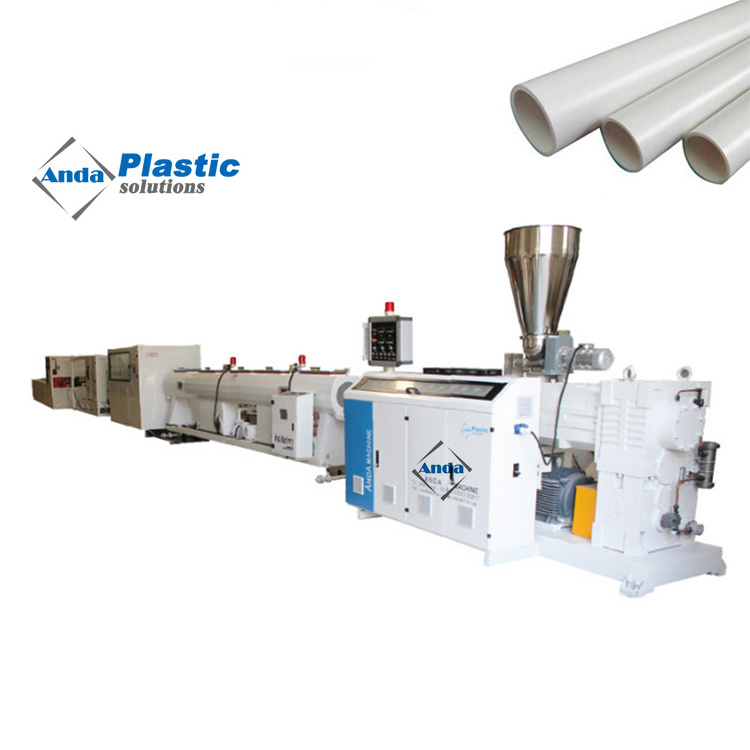

I t ’ s mainly composed by conical twin screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.
B y changing dorn or mould lip, it can produce several diameter or wall thickness on same machine.
|
Model |
PVC-63 |
PVC-110 |
PVC-160 |
PVC-250 |
PVC-315 |
PVC-450 |
PVC-630 |
PVC-800 |
|
Applicable OD(mm) |
16-63 |
20-110 |
50-160 |
75-250 |
110-315 |
200-450 |
315-630 |
500-800 |
|
Extruder model |
55/110 |
55/110 |
65/132 |
80/156 |
80/156 |
92/188 |
92/188 |
105/216 |
|
Capacity
|
150 |
180 |
250 |
350 |
400 |
600 |
750 |
1300
|
1. PVC pipe making machine--Extruder
2. PVC pipe making machine--V acuum calibration tank
3. PVC pipe making machine--Haul off machine
4. PVC pipe making machine- - cutting machine, stacker
5. PVC pipe making machine--B elling machine
6. More details
1. Ensuring long-time stable operation & long service life
2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation
3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.
4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.
