Quick Details
-
Table Travel (Y) (mm):
-
600
-
Dimension(L*W*H):
-
3400x2480x2960mm
-
Weight (T):
-
7 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
850 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
24
-
Place of Origin:
-
China
-
Brand Name:
-
selection
-
Voltage:
-
220V/380V/customer optional
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
12 months
-
Product name:
-
cnc milling machine
-
Machine Type:
-
VMC1160
-
Application:
-
Manufacturing
-
Keywords:
-
3 axis cnc milling machine
-
Product type:
-
cnc machine center
-
Processing:
-
Chinese, English, Russian, Spanish
-
CNC or Not:
-
CNC
-
Function:
-
cnc machining center
-
Color:
-
customer optional
-
Certification:
-
CE
Quick Details
-
Table Size (mm):
-
1200*600
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1200
-
Table Travel (Y) (mm):
-
600
-
Dimension(L*W*H):
-
3400x2480x2960mm
-
Weight (T):
-
7 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
850 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
24
-
Place of Origin:
-
China
-
Brand Name:
-
selection
-
Voltage:
-
220V/380V/customer optional
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
12 months
-
Product name:
-
cnc milling machine
-
Machine Type:
-
VMC1160
-
Application:
-
Manufacturing
-
Keywords:
-
3 axis cnc milling machine
-
Product type:
-
cnc machine center
-
Processing:
-
Chinese, English, Russian, Spanish
-
CNC or Not:
-
CNC
-
Function:
-
cnc machining center
-
Color:
-
customer optional
-
Certification:
-
CE
Products Description
The main performance characteristics:
1. The body and main components are made of high-strength cast iron, which has a stable structure and ensures the stability of the machine tool for long-term use.
2. The bottom column of A-type bridge structure, combined with the large box base, greatly reduces the vibration of the machine tool during heavy cutting
3. Pre-tightened precision ball screw drive
4. High-speed, high-precision, high-rigidity spindle unit
5. Oil-water separation design
6. Intermittent automatic lubrication
7. Automatic tool change system
Application:
Application:
Vertical machining centers can be used in many fields such as mechanical processing and mold manufacturing. They can adapt to the requirements of rough machining to finish machining. They have the characteristics of high precision and high efficiency. They are widely used in aerospace, military industry, molds, automobiles, internal combustion engines, textiles Machinery, chemical machinery processing, petroleum, electronics and other industries.
Product main technical specifications:
Product main technical specifications:
|
Specifications
|
Units
|
VMC1160
|
|
Table size
|
mm
|
1200x600
|
|
X axis travel
|
mm
|
1100
|
|
Y axis travel
|
mm
|
600
|
|
Z axis travel
|
mm
|
600
|
|
Max. worktable load
|
kg
|
1000
|
|
T slot(number-width-pitch)
|
|
5-18x125
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
11
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
|
|
Cutting feed speed
|
mm/min
|
1-8000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
650
|
|
Distance between spindle nose and worktable surface
|
mm
|
140-740
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
Arm 24
|
|
Max. tool diameter
|
mm
|
φ78( Adjacent)/ φ120(Apart)
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
7000
|
|
Overall dimension
|
mm
|
3400x2480x2960
|

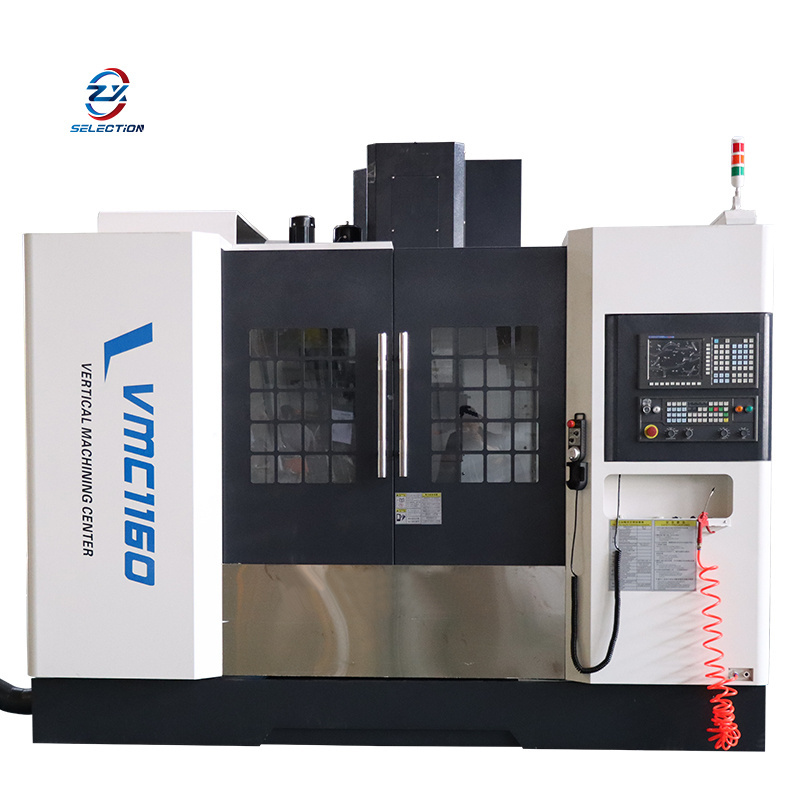

Details Images
