Quick Details
-
Product name:
-
glue dispensing machine
-
Name:
-
Automatic Liquid Dispensing Machine
-
Function:
-
dispensing
-
Precision:
-
±0.02mm-±0.05mm
-
Motor speed::
-
0 ~ 300 rev / min
-
Drive mode::
-
Japan imported stepper motor + Timing belt + Taiwan brand linear guide
-
Control method::
-
Industrial PLC
-
xyz working range::
-
300*300*100mm
-
Operating Model::
-
Automatic
-
Power Supply::
-
AC220V 50-60HZ 350W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULIAUTO
-
Weight (KG):
-
70
-
Product name:
-
glue dispensing machine
-
Name:
-
Automatic Liquid Dispensing Machine
-
Function:
-
dispensing
-
Precision:
-
±0.02mm-±0.05mm
-
Motor speed::
-
0 ~ 300 rev / min
-
Drive mode::
-
Japan imported stepper motor + Timing belt + Taiwan brand linear guide
-
Control method::
-
Industrial PLC
-
xyz working range::
-
300*300*100mm
-
Operating Model::
-
Automatic
-
Power Supply::
-
AC220V 50-60HZ 350W

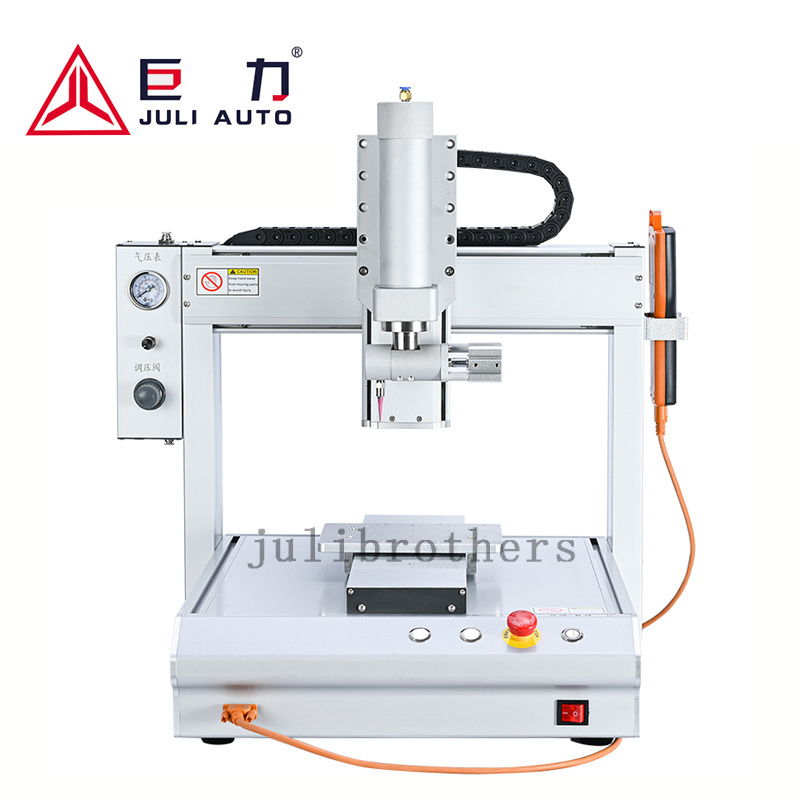

Automatic 3 axis aluminum alloy profile Desktop robot arm dispensing machine automatic glue dispenser robot gluing machine
|
parameter: |
||||||||
|
M odel |
JL-D221 |
JL-D331 |
JL-D441 |
JL-D551 |
JL-D4331 |
JL-D5331 |
||
|
Control axis |
Three axis |
Four axis |
||||||
|
effective stroke |
X axis |
200mm |
300mm |
400mm |
500mm |
400mm |
500mm |
|
|
|
Y 1 axis |
200mm |
300mm |
400mm |
500mm |
300mm |
300mm |
|
|
|
Y 2 axis |
|
|
|
|
300mm |
300mm |
|
|
|
Z axis |
50mm |
100mm |
100mm |
100mm |
100mm |
100mm |
|
|
Transmission mode |
Single rail synchronous belt (standard), Double rail synchronous belt, screw module (optional) |
|||||||
|
Power source |
Stepper motor (standard), servo motor (optional) |
|||||||
|
Max speed |
500mm/sec |
|||||||
|
Repeat accuracy |
±0.05mm |
|||||||
|
Maximum load |
Synchronous Belt : X/Y/Z 5kg/5kg/2kg screw : X/Y/Z 15kg/15kg/10kg |
|||||||
|
Control System |
three-axis control system |
|||||||
|
File storage space |
Hand - held box 256M, trailer card 32M, single processing file can occupy up to 3M storage space (10000 processing points) |
|||||||
|
Supporting documentation |
CAD, CorelDRAW |
|||||||
|
Power supply |
AC110-250V 50-60HZ 350W |
|||||||
|
machine size |
L |
475mm |
520mm |
620mm |
720mm |
620mm |
720mm |
|
|
|
W |
410mm |
585mm |
685mm |
785mm |
585mm |
585mm |
|
|
|
H |
522.5mm |
596.5mm |
596.5mm |
596.5mm |
596.5mm |
596.5mm |
|
|
Machine weight |
35kg |
44kg |
59kg |
65kg |
63kg |
62kg |
||
