Quick Details
-
Mounting Type:
-
Cable Mount
-
Description:
-
AC DC Leakage Current Sensor, Leakage Current Sensor
-
Model Number:
-

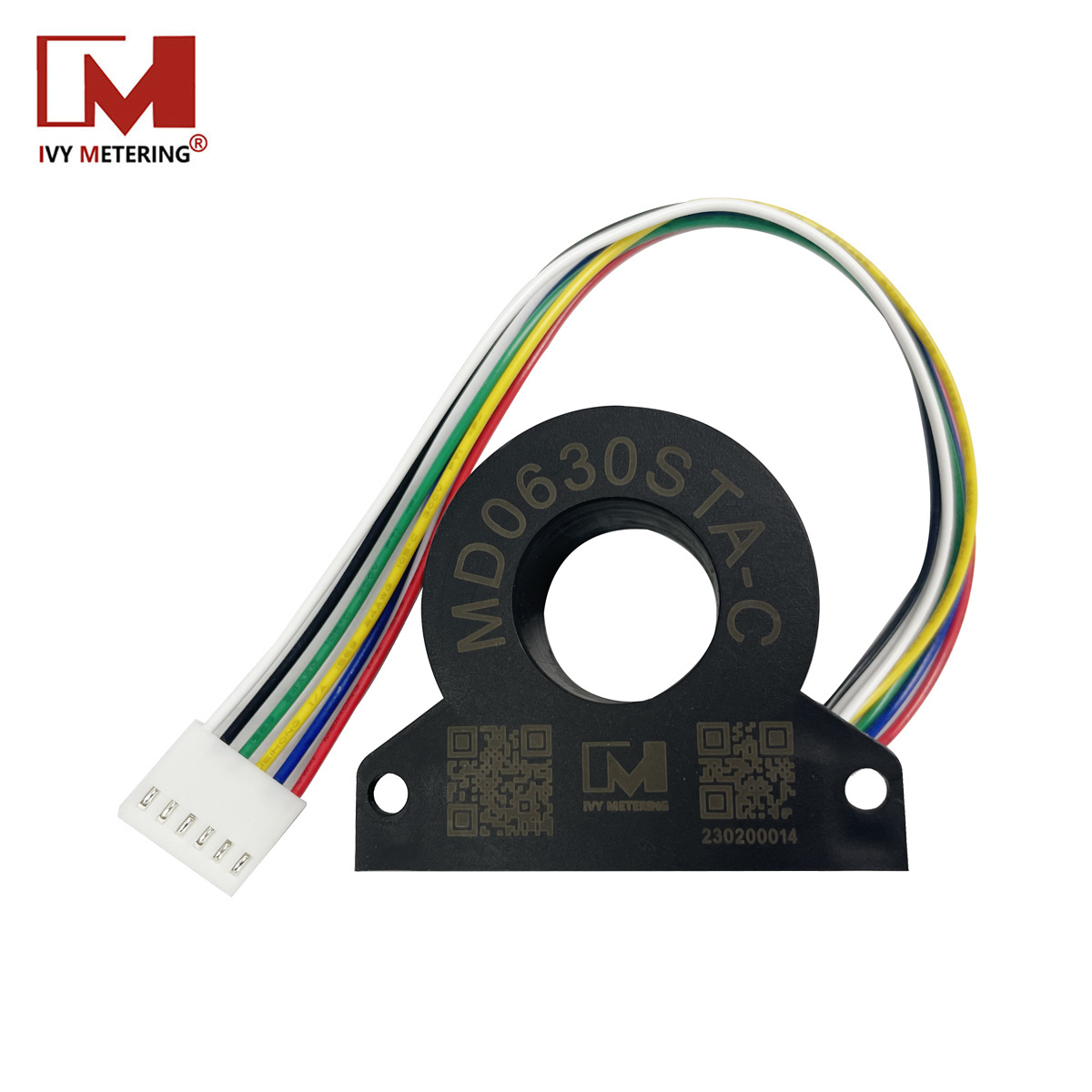

MD0630STA-C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IVY
-
Theory:
-
Current Sensor, Current Sensor
-
Output:
-
Open Collector
-
Voltage:
-
12V±20%
-
Current Range:
-
DC 2~15mA/AC 3~100mA
-
Alarm Current Range:
-
DC 3~6mA/AC 15~30mA
-
Installation:
-
Cable/Horizontal Installation
-
Alarm Output:
-
Open Collector
-
Temperature Range:
-
-25~80℃
-
Appearance:
-
Plastic Casing, SIP encapsulation
-
Function:
-
AC DC Leakage Protection
-
Application:
-
EV Charger, PV System, DC Screen etc.
Quick Details
-
Usage:
-
EV Charger; Solar PV System; Leakage Protection
-
Series:
-
MD Series
-
Features:
-
RCD Leakage Protection
-
Mounting Type:
-
Cable Mount
-
Description:
-
AC DC Leakage Current Sensor, Leakage Current Sensor
-
Model Number:
-
MD0630STA-C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IVY
-
Theory:
-
Current Sensor, Current Sensor
-
Output:
-
Open Collector
-
Voltage:
-
12V±20%
-
Current Range:
-
DC 2~15mA/AC 3~100mA
-
Alarm Current Range:
-
DC 3~6mA/AC 15~30mA
-
Installation:
-
Cable/Horizontal Installation
-
Alarm Output:
-
Open Collector
-
Temperature Range:
-
-25~80℃
-
Appearance:
-
Plastic Casing, SIP encapsulation
-
Function:
-
AC DC Leakage Protection
-
Application:
-
EV Charger, PV System, DC Screen etc.
|
Voltage
|
12V±20%
|
|
Current
|
DC 2~15mA/AC 3~100mA
|
|
Alarm Current Range
|
DC 3~6mA/AC 15~300mA
|
|
Alarm Output
|
Open Collector
|
|
Function
|
Self-testing
|
|
Operation Temperature Range
|
-25~+80ºC
|
|
Installation
|
Cable/Horizontal Type
|
|
Appearance
|
Plastic casing V0
|
Product Details:
MD36DA-C This is a DC leakage current sensor with the characteristics of high sensitivity, accurate measurement, small size, and integration. When a DC leakage current of 3~6mA is detected, an alarm signal will be output, and it has a self-test function.
MD series sensor are type B RCD/RCM, which are used where DC residual currents could occur, in addition to normal AC, can detect high-frequency AC and pure DC earth leakage currents. The tripping conditions are defined with different frequencies from 50Hz to 1kHz. Reducing the risk of fire or electrocution through output digital alarm signal. Type B RCD is suitable for loads with single/three-phase rectifiers, such as variable speed drives, photovoltaic systems, electric vehicle charging stations and medical equipment etc.
MD series sensor are type B RCD/RCM, which are used where DC residual currents could occur, in addition to normal AC, can detect high-frequency AC and pure DC earth leakage currents. The tripping conditions are defined with different frequencies from 50Hz to 1kHz. Reducing the risk of fire or electrocution through output digital alarm signal. Type B RCD is suitable for loads with single/three-phase rectifiers, such as variable speed drives, photovoltaic systems, electric vehicle charging stations and medical equipment etc.
