D-TL-1 series

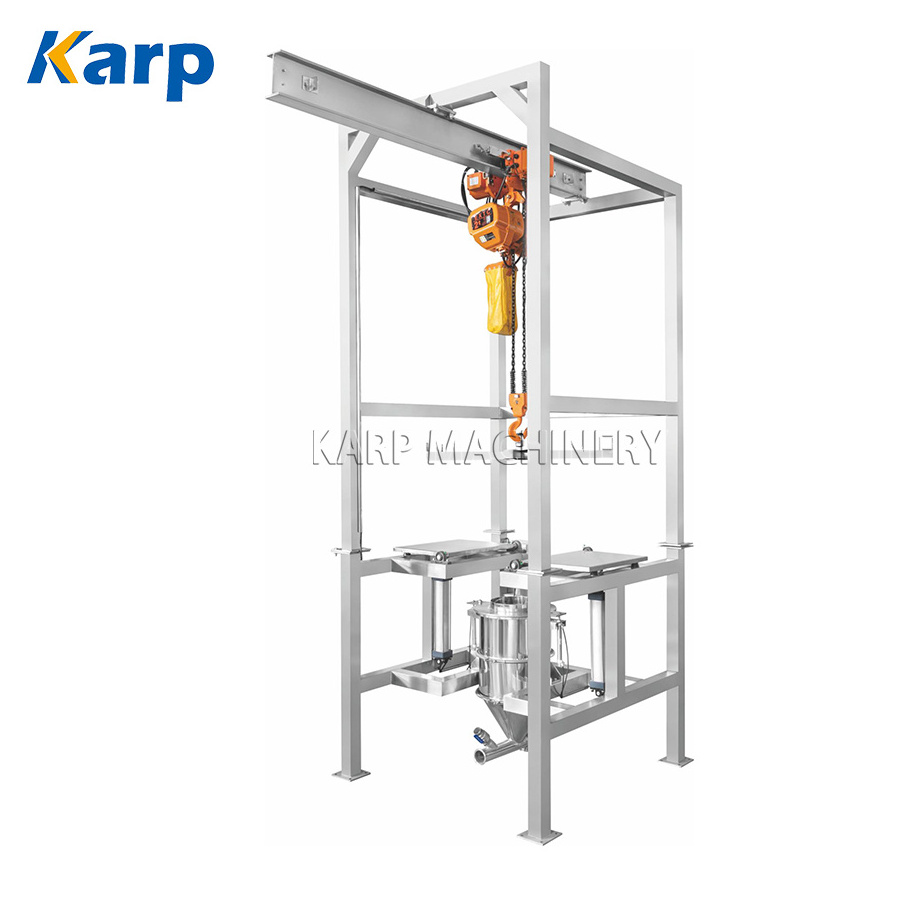

Food Industry Sack Unloader Machine Bulk Bag Unloading System Bag Discharging Station
is a feeding and unpacking equipment specially designed for the problems of dust overflow
and heavy dust during the feeding of large bags. It is mainly used for unpacking and unloading big bags of granular and powdery
materials, such as food raw materials, chemical raw materials, pharmaceutical raw materials, rubber and plastic industry, energy
batteries, paint industry, etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARP
-
Product Name:
-
Sack Unloader Bulk Bag Unloading System Bag Discharging Station
-
Application:
-
Food Industry
-
Material:
-
Stainless steel 304/316/Mild steel
-
Advantage:
-
Dust free
-
Equipment height:
-
3000mm-5000mm
-
Blanking butterfly valve caliber:
-
150mm-200mm
-
Bag caliber:
-
300mm
-
Capacity:
-
0.1-6ton/h
-
Air consumption:
-
0-0.6L/min
-
Vacuum flow:
-
0-90L/min
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1000
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARP
-
Product Name:
-
Sack Unloader Bulk Bag Unloading System Bag Discharging Station
-
Application:
-
Food Industry
-
Material:
-
Stainless steel 304/316/Mild steel
-
Advantage:
-
Dust free
-
Equipment height:
-
3000mm-5000mm
-
Blanking butterfly valve caliber:
-
150mm-200mm
-
Bag caliber:
-
300mm
-
Capacity:
-
0.1-6ton/h
-
Air consumption:
-
0-0.6L/min
-
Vacuum flow:
-
0-90L/min
Product Description
Food Industry Sack Unloader Machine Bulk Bag Unloading System Bag Discharging Station
Brief description:
Product Show
Details:
Instructions for use:
1. The Big Bag Unloader Machine
lifts the bag to the upper part of the feeding inlet of the equipment through the electric hoist.
2. The inner bag of the big bag is manually fixed at the clamping mouth of the equipment, and the big bag is clamped and sealed by the bag holder to prevent dust overflow.
3. The materials in the big bag are unloaded manually, and work with beater, vibration device and other auxiliary facilities are more beneficial to the discharge of the material in the big bag.
4. It can directly feed into the next equipment orunpack and feed into the conveying system such as pneumatic conveying and screw conveying.
Specification
|
Basic parameters
|
|
|
|
|||
|
Equipment height
|
[3000mm, 5000mm]
|
Air consumption
|
(0L/min, 0.6L/min)
|
|||
|
Bag caliber
|
300mm
|
Vacuum flow
|
(0L/min, 90L/min)
|
|||
|
Air source pressure
|
6bar
|
Vacuum pressure
|
(-92.5kpa, 0kpa)
|
|||
|
Equipment weight
|
[1000kg, 5000kg]
|
Throughput (capacity)
|
(0.1T/h, бТ/h)
|
|||
|
Blanking butterfly valve caliber
|
[150mm, 200mm]
|
Item restrictions
|
Sticky material
|
|||
|
Applicable Material Properties
|
|
|
|
|||
|
Material Type
|
Powder
|
Granule
|
Liquid
|
|||
|
Material temperature
|
[-10℃, 70℃)
|
[-10℃, 70℃)
|
/
|
|||
|
Material Humidity
|
(0%RH, 20%RH)
|
(0%RH, 20%RH)
|
/
|
|||
|
Material particle size
|
(0.2um, 10mm)
|
(0.2um, 10mm)
|
/
|
|||
Application
Food Industry Sack Unloader Machine Bulk Bag Unloading System Bag Discharging Station
is
mainly used for unpacking and unloading big bags of granular and powdery materials in food industry, chemical industry
, pharmaceutical industry, rubber and plastic industry, energy batteries industry, paint industry, etc.
Hot-selling product
Packing & Delivery
Packing for
Food Industry Sack Unloader Machine Bulk Bag Unloading System Bag Discharging Station
.
Outside package: standard export wood box.
Inner package: stretch film for machine, accessories in carton.
Optional shipping type:
Support Sea freight
