Quick Details
-
Weight:
-
300kg
-
Size:
-
150*80*170cm
-
Power:
-
2kw
-
Weight (KG):
-
300 kg
-
Capacity:
-
1000l per Hour
-
Treatment stage:
-
2 stage
-
Recovery rate:
-
60-65%
-
Desalination rate:
-
98%
-
Pump:
-
Nanfang
-
Certification:
-
ISO9001
-
Function:
-
Producing Fresh Water
-
RO membrane:
-
VONTRON,DOW
-
Application:
-
Mineral water,juice,beer
-
Type:
-
RO,RO+RO,RO+EDI
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GYR
-
Material:
-
ss304
-
Weight:
-
300kg
-
Size:
-
150*80*170cm
-
Power:
-
2kw
-
Weight (KG):
-
300 kg
-
Capacity:
-
1000l per Hour
-
Treatment stage:
-
2 stage
-
Recovery rate:
-
60-65%
-
Desalination rate:
-
98%
-
Pump:
-
Nanfang
-
Certification:
-
ISO9001
-
Function:
-
Producing Fresh Water
-
RO membrane:
-
VONTRON,DOW
-
Application:
-
Mineral water,juice,beer
-
Type:
-
RO,RO+RO,RO+EDI

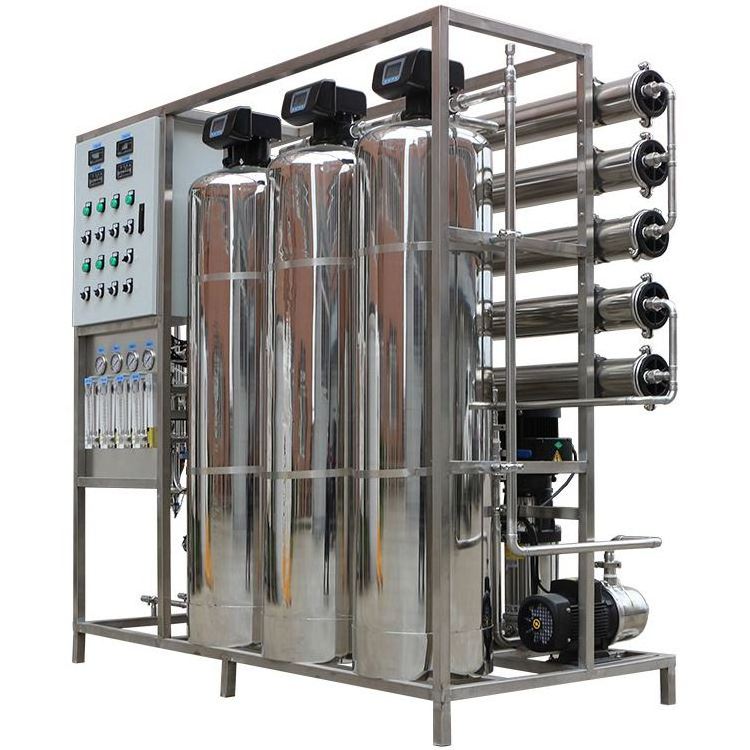

Brief introduction of reverse osmosis system
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high
pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank- UV sterilizer / ozone generator (optional) - water supply points
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 24 months. 50kg/bag
b. Activated carbon: replaced about every 24 months. 25kg/bag
c. Resin: replaced about every 24 months. 25L/bag
d. PP Filter cartridge: replaced about every 3 month
e. Ro membrane: replaced about every 3 year
Q: What is Reverse Osmosis?
A: Reverse osmosis (R/O) is a water
treatment process in which water is
forced through a semi-permeable
membrane that has very small holes or "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away.
Q: How Does Reverse Osmosis Work?
A: Reverse osmosis systems purify
water by forcing pressurized water
through a very fine, plastic membrane. If the raw water being treated comes from a well or another private source, disinfection and pre-filters (to remove chlorine and/or particulates/sediment) may be needed in advance of the R/O unit to remove contaminants that can foul or damage the membrane.
Q: How Do I Know What Size Unit to Buy?
A: R/O units are rated according to the amount of treated water neededper day or per hour. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. In reality, conditions frequently vary. Consequently, you
should examine water conditions and buy a larger rated unit than needed if any problems.
Q: Material of reverse osmosis
system?
A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.
Q: What kind of water RO system can treat?
A: city water, underground water, river
water, spring water, lake water, brackish water, sea water...
Q: Is this machine easy to install? Will you arrange engineer to help me install?
A: This machine is very easy for installation. The machine you received is assembled. You will only need to put material inside to filters, and then backwash, fast rinse filters. It is very easy for you to follow our English instruction and video.
Q: What is packing of this
machine? Is it suitable for
shipment?
A: Machine will be packed by standard wooden case. It is suitablefor shipment. After you receive machine, you only need to open wooden case to pick up machine.
Q: What is warranty?
A: Our warranty is one year. If you have any problems in one year, just take photoes to show us. Our engineer team will help you to find problems. If any spare parts need toreplace, we will send you new one for free.
Q: How can I pay you?
A: After we confirmed order, I will send you contract sales with our company bank information. You can transfer money to our company bank account by T/T. Or you can place order online.
