Quick Details
-
Brand Name:
-
SUMA
-
Model Number:
-
GCS3596
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
two-way clutch bearings
-
Material:
-
GCr15 Bearing Steel
-
Inner diameter:
-
35mm
-
Outer diameter:
-
96mm
-
Height:
-
68mm
-
Driving Torgue:
-
100Nm
-
Structure:
-
Roller type with Plectrum
-
Weight:
-
3.07kg
-
OEM:
-
Accept
-
Delivery time:
-
7-10 days
Quick Details
-
Type:
-
cam
-
Precision Rating:
-
P0
-
Seals Type:
-
Open
-
Brand Name:
-
SUMA
-
Model Number:
-
GCS3596
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
two-way clutch bearings
-
Material:
-
GCr15 Bearing Steel
-
Inner diameter:
-
35mm
-
Outer diameter:
-
96mm
-
Height:
-
68mm
-
Driving Torgue:
-
100Nm
-
Structure:
-
Roller type with Plectrum
-
Weight:
-
3.07kg
-
OEM:
-
Accept
-
Delivery time:
-
7-10 days

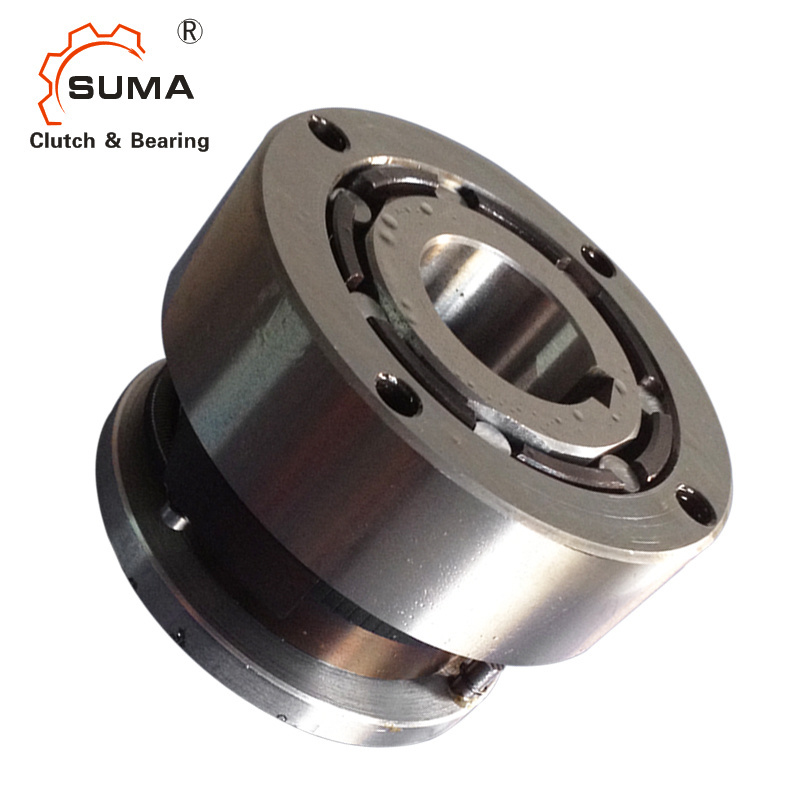

GCS3596 Backstop Clutch Bearing Two-Way Clutch Bearings
Features of two-way clutch bearings
Type " GCS “ is a roller type plectrum over-running clutch with bearing supported.
Working Principle of two-way clutch bearings :
Driving Nit Drive unit to rotate , the rotation of inner race is controlled by plectrum. When plectrum affected , driven unit stop prorogating while drives unit remains working.
Application of two-way clutch bearings :
Feeding, Intermission, Stampling, Packaging Equipment , etc .
|
Product name |
two-way clutch bearings |
|
Model |
GCS3596 |
|
Material |
GCr15 |
|
Torque capacity |
100Nm |
|
Inner diameter |
35mm |
|
Outer diameter |
96mm |
|
Thickness |
68mm |
|
Weight |
3.07kg |
|
Application |
Feeding, Stampling, Packaging, Intermission, etc |
|
Package |
Carton box , Pallte or Customized |
|
Payment terms |
TT. L/C, D/A,D/P,Western Union, Paypal |
|
Delivery time |
2-4 days for the sample, 7 days for big order |
Catalogue of GCS two-way clutch bearings for your choice
| SPECIFICATIONS | ||||||||||||
| Model | Torque | Overrunning Speed (r/min) | Dimensions (mm) | Weight | ||||||||
| Nm | Outer race | Inner race | d | D1 | D | L | L1 | N | bxt | H | kg | |
| GCS2576 | 49 | 595 | 1000 | 25 | 64 | 76 | 54 | 24.5 | M6 | 8x3.3 | 15 | 1.1 |
| GCS3086 | 60 | 525 | 850 | 30 | 74 | 86 | 55 | 26 | M8 | 10x3.3 | 16 | 1.5 |
| GCS3596 | 100 | 410 | 720 | 35 | 84 | 96 | 68 | 30 | M8 | 10x3.3 | 16 | 3.07 |
| GCS40110 | 160 | 386 | 684 | 40 | 95 | 110 | 80 | 38 | M10 | 12x3.3 | 18 | 4.68 |
| GCS45125 | 246 | 346 | 630 | 45 | 112 | 125 | 85 | 42 | M10 | 12x3.3 | 18 | 5.65 |
| GCS50140 | 380 | 335 | 605 | 50 | 120 | 140 | 96 | 50 | M12 | 14x3.8 | 20 | 7.63 |
| GCS55160 | 613 | 290 | 505 | 55 | 140 | 160 | 108 | 56 | M14 | 14x3.8 | 20 | 10.5 |
| GCS60180 | 1175 | 250 | 423 | 60 | 156 | 180 | 120 | 65 | M14 | 16x4.3 | 20 | 17.89 |
| GCS65200 | 1510 | 223 | 360 | 65 | 164 | 200 | 130 | 65 | M16 | 16x4.3 | 20 | 20.15 |
| GCS70225 | 2819 | 168 | 266 | 70 | 180 | 225 | 135 | 70 | M18 | 18x4.4 | 20 | 26.52 |
