Quick Details
-
Brand Name:
-
BOYN, BOYN
-
Model Number:
-
HPC401
-
Material:
-
Stainless Steel
-
Product name:
-

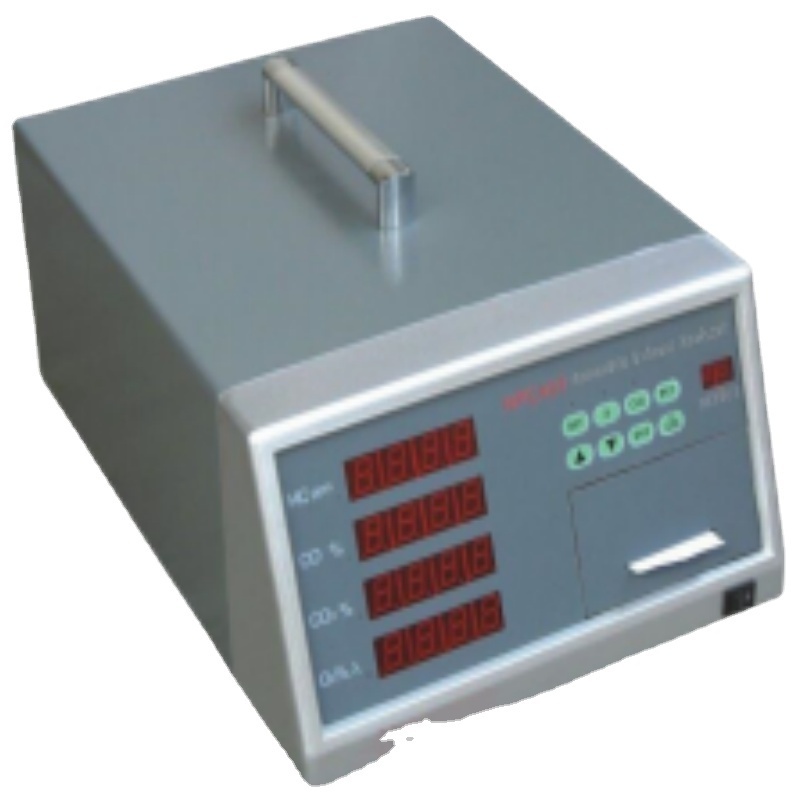

Automatic Exhaust Analyzer
-
Model:
-
HPC401
-
Measurable gas:
-
HC, CO, CO2, O2
-
And-use temperature:
-
-5~50°C
-
Power:
-
AC100~240V 50/60Hz
-
Power consumption:
-
40VA
-
Dimension:
-
420*310*170MM
Quick Details
-
Type:
-
portable multi gas detector
-
Warranty:
-
1 YEAR, 1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOYN, BOYN
-
Model Number:
-
HPC401
-
Material:
-
Stainless Steel
-
Product name:
-
Automatic Exhaust Analyzer
-
Model:
-
HPC401
-
Measurable gas:
-
HC, CO, CO2, O2
-
And-use temperature:
-
-5~50°C
-
Power:
-
AC100~240V 50/60Hz
-
Power consumption:
-
40VA
-
Dimension:
-
420*310*170MM
Product Description
Product features:
It is used to measure the concentration of HC, Co, CO2, O2 and NOx in the exhaust gas ofautomobile. It can automatically calculate and display the air-fuel ratio λ. It can comprehensively detect the combustion performance and emission pollution of engine.
Product Paramenters
|
Model
|
HPC401
|
HPC501
|
|
|
Measuring range
|
HC: 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol
CO2: 0~20×10-2(%)vol
O2: 0~25×10-2(%)vol
|
HC: 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol
CO2: 0~20×10-2(%)vol
O2: 0~20×10-2(%)vol
NOx: 0~5000×10-6(ppm)vol,
|
|
|
Stability
|
moment drift≤±3%
|
|
|
|
Repeatability
|
≤±2%
|
|
|
|
And-use temperature
|
-5~50°C
|
|
|
|
Relative humidity
|
≤90%
|
|
|
|
Power
|
AC100~240V 50/60Hz or DC12V( Add power inverter)
|
|
|
|
Power consumption
|
40VA
|
|
|
|
Dimension
|
420*310*170MM
|
|
|
|
N./G. Weight
|
9/12Kg
|
|
|
|
Packing Size
|
62*44*30cm
|
|
|
