Quick Details
-
Voltage:
-
380Kw
-
Power:
-
350kw
-
Dimension(L*W*H):
-
26*6*1.2m
-
Weight:
-
10T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Control system:
-
PLC and touch screen controller
-
Driving System:
-
Full servo motor
-
Operating system:
-
Automatic
-
Transmission:
-
vacuum absorption transmission
-
key words:
-
baby diapers production machine
-
Feature:
-
Eco-Friendly
-
character:
-
low voice
-
Orientation:
-
Precision
Quick Details
-
Production Capacity:
-
550pcs/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HC
-
Voltage:
-
380Kw
-
Power:
-
350kw
-
Dimension(L*W*H):
-
26*6*1.2m
-
Weight:
-
10T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Control system:
-
PLC and touch screen controller
-
Driving System:
-
Full servo motor
-
Operating system:
-
Automatic
-
Transmission:
-
vacuum absorption transmission
-
key words:
-
baby diapers production machine
-
Feature:
-
Eco-Friendly
-
character:
-
low voice
-
Orientation:
-
Precision

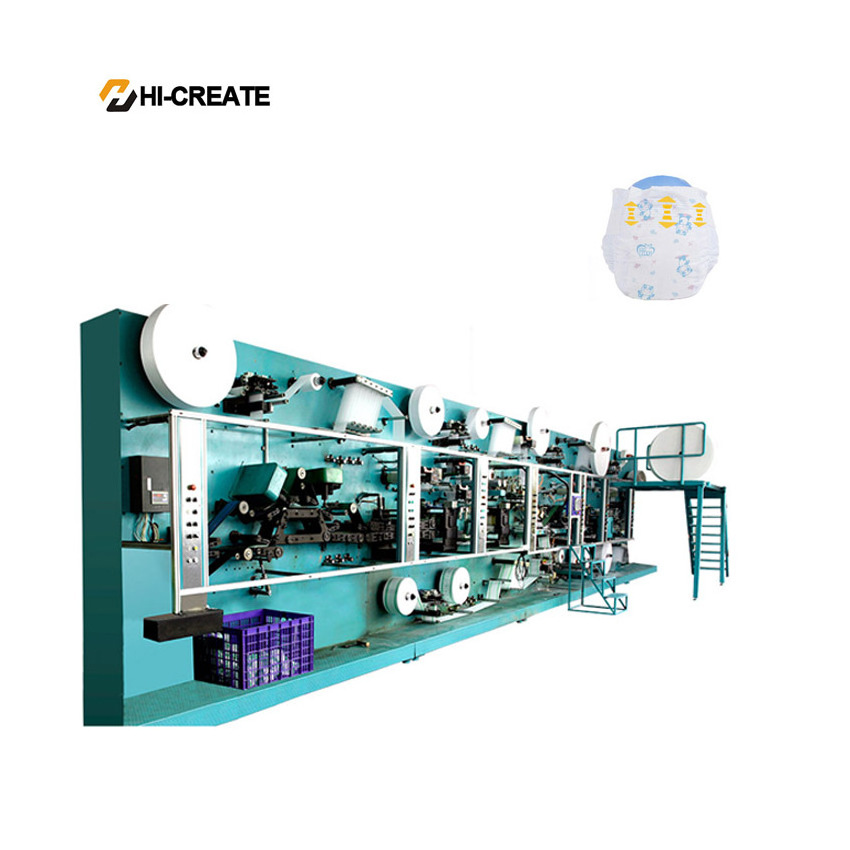

HC-DP-FS Baby Diaper Making Machine
Main functions and features
1.Machine servo motor, PLC control, automatic tick waste, downtime by the touch screen display.
2.Replacement tool can produce XL, L, M, S four specifications of the product.
3.Three-dimensional leakage Barrier is formed at machine , elastic waist, frontal waist tape automatic cut, elastic extension can be adjusted freely.
4.When Production, raw materials vacuum adsorption transmission, automatic unwinding, wrapping the splice, the servo motor to control the tension with eight corrector.
5.Mixture of polymer and wood pulp, servo motor control the amount added.
6.The configuration tooth chip high-speed grinder, thus treated and untreated pulp, with enclosures, protective security door.
Main Technical Parameters
| Model | HC-DP-FS |
| Designed Speed | 650 pcs/min(on M standard) |
| Pratical Speed | 500-650 pcs/min |
| Installed capacity | 350kw (380V 50Hz) |
| Machine Size | 26*6*3.5m |
| Working Size | 30.5*10*4m |
| Machine Weight | 50t |
| Air Compressor | 0.6~0.8Mpa,2.2m³/min |
| Container | 2*40HQ+1*20GP |
Details of Machine
Manufactured Products
The baby diaper making machine adopt full servo motor and can produce "I" shape, "T" shape, "8" shape baby diapers or pampers.
