-- Light and small, suitable for site work
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
zhenhuan
-
Voltage:
-
380/220V
-
Power:
-
5kW
-
Dimension(L*W*H):
-
2650X700X950mm
-
Weight:
-
750 kg
-
Warranty:
-
one year
-
driven type:
-
hydraulic
-
max. diameter:
-
1250mm
-
max. thickness:
-
1.2mm
-
raw material:
-
galvanized steel, or stainless steel
-
power:
-
5kw
-
motor:
-
380/220V, as required
-
dimension:
-
2650x7800x950mm
-
weight:
-
750kg
-
brand:
-
zhenhuan
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Pipe Material:
-
galvanized steel
-
Production Capacity:
-
120m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
zhenhuan
-
Voltage:
-
380/220V
-
Power:
-
5kW
-
Dimension(L*W*H):
-
2650X700X950mm
-
Weight:
-
750 kg
-
Warranty:
-
one year
-
driven type:
-
hydraulic
-
max. diameter:
-
1250mm
-
max. thickness:
-
1.2mm
-
raw material:
-
galvanized steel, or stainless steel
-
power:
-
5kw
-
motor:
-
380/220V, as required
-
dimension:
-
2650x7800x950mm
-
weight:
-
750kg
-
brand:
-
zhenhuan
-
After Warranty Service:
-
Field maintenance and repair service
MACHINE DESCRIPTION

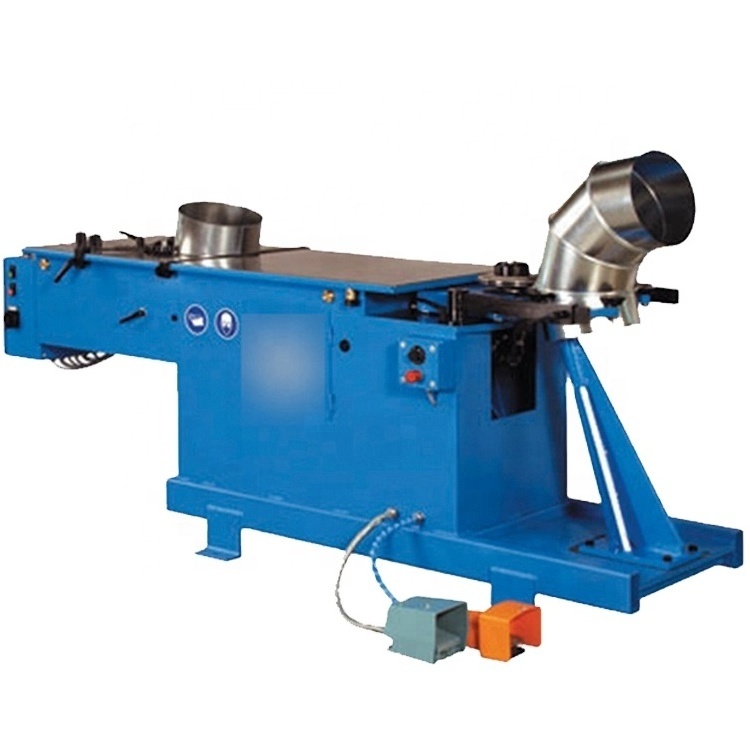

This hydraulic gorelocker elbow making machine is for producing
round elbows in ventilation & air conditioning system.
MAIN FEATURES
-- Full hydraulic type
-- Diameter ranges from 125-1250mm,
MACHINE SPECIFICATION
|
No.
|
Item
|
|
Data
|
|
|
1
|
Diameter range
|
|
125-1250mm
|
|
|
2
|
Width of strip
|
|
Standard 137mm
|
|
|
3
|
Sheet thickness
|
Stainless steel
|
0.4-0.8mm
|
|
|
4
|
|
Galvanized steel
|
0.4-1.2mm
|
|
|
5
|
|
Aluminum
|
0.4-1.2mm
|
|
|
6
|
Max. Forming speed
|
|
120m/min
|
|
|
7
|
Hydraulic oil
|
|
55L
|
|
|
8
|
Consumption of com-pressed air
|
|
75L/hour 6bar
|
|
|
9
|
Motor power
|
|
4kW + 120w cooling fan
|
|
|
10
|
Weight
|
|
750kg
|
|
|
11
|
Dimension (L x W x H)
|
|
2650 x 700 x 950mm
|
|
